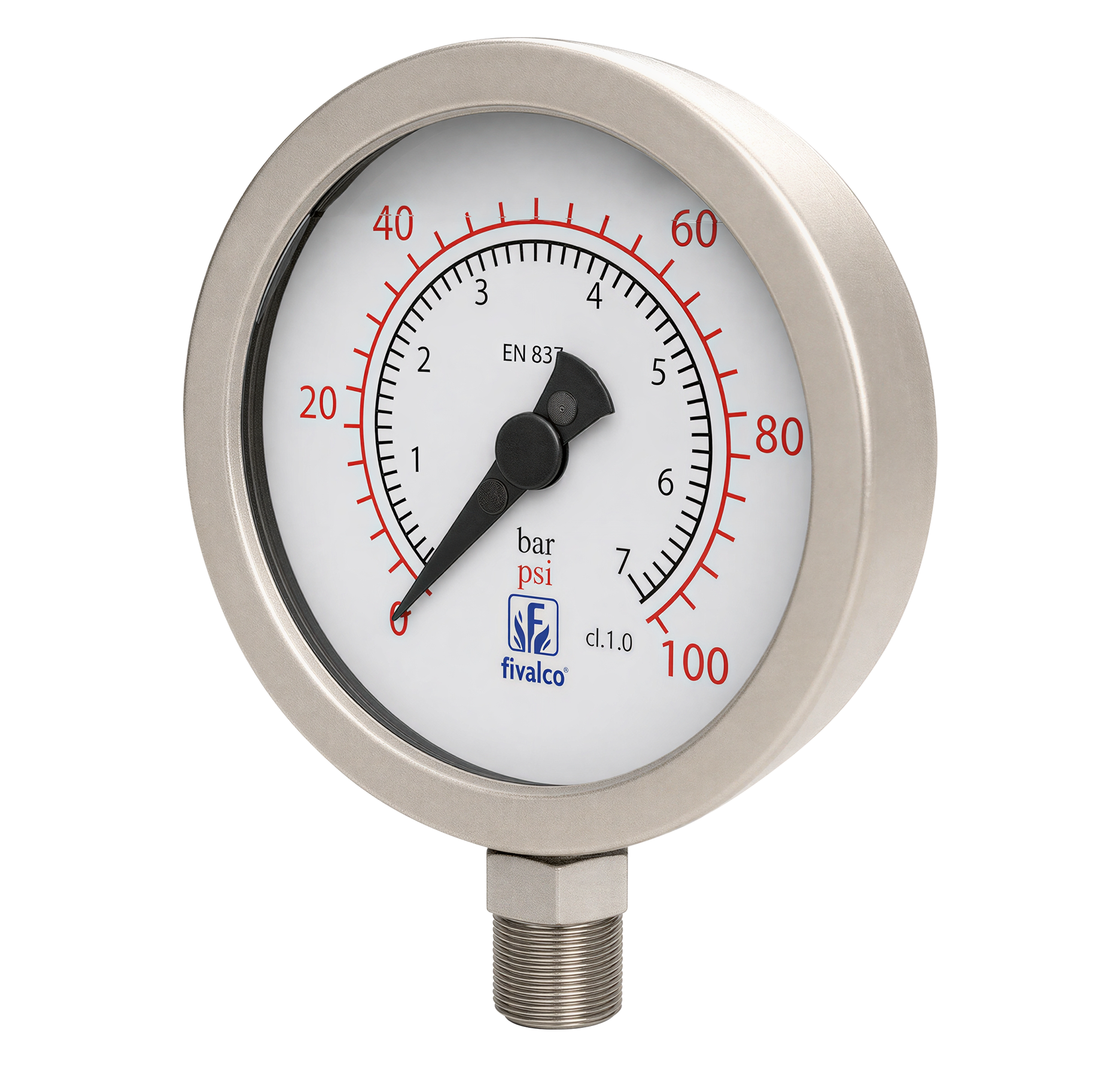

FP21 / FP22 STAINLESS STEEL PRESSURE GAUGE

FP21 / FP22 STAINLESS STEEL PRESSURE GAUGE

Fig No.: FP21 / FP22

FEATURES & SPECIFICATIONS

Stainless steel casing and internal bourdon tube
Dual scale pressure units reading
Able to withstand an aggressive environment and medium
Glycerin filled for system or equipment with excessive pulsating pressure, shock and vibration.
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, General Industries.

Categories Mechanical Service & HVAC, Piping Specialities

Specification
PRODUCT IDENTIFICATION CODE

Specification

	FP21	FP22
Dial Size	4″ (100mm) / 6″ (150mm)	4″ (100mm) / 6 (150mm)
Case	Stainless Steel 304	Stainless Steel 304
Bezel	Stainless Steel 304	Stainless Steel 304
Socket	Brass	Stainless Steel 316
Connection	3/8″ Bottom Entry	1/2″ Bottom Entry
Connection Standard	BSPT	BSPT
Lens	Polycarbonate	Toughened Glass
Pointer	Aluminium, Black	Aluminium, Black
Scale Unit	Dual Scale in bar &psi	Dual Scale in bar &psi
Bourdon Tube	Phosphor Bronze	Stainless Steel 316
Movement	Brass	Stainless Steel 316
Working Pressure	Maximum 75% of Full Scale Value	Maximum 75% of Full Scale Value
Process Temperature	0°C … 60°C	0°C … 60°C
Accuracy	+/- 1.6% of Full Scale Value	+/- 1.0% of Full Scale Value
Protection	IP 65	IP 65
Filling Liquid	Glycerin	Glycerin

PRODUCT IDENTIFICATION CODE

		FP22	–	100	x	10	.	0/16
Type/Model	Stainless Steel Casing and Brass Socket	FP11
Type/Model	Stainless Steel Casing and Socket	FP22
Dial	100mm (4″)			100
Dial	150mm (6″)			150
Connection	10mm (3/8″)					10
Connection	15mm (1/2″)					15
Pressure Range	-760mmHg…4bar ; -30inHg…60psi							C/04
	0…7bar ; 0…100psi							0/07
	0…10bar ; 0…150psi							0/10
	0…16bar ; 0…230psi							0/16
	0…20bar ; 0…300psi							0/20
	0…30bar ; 0…430psi							0/30
