F23MR OS&Y METAL SEAT GATE VALVE

F23MR OS&Y METAL SEAT GATE VALVE

Fig No.: F23MR16 (PN16) / F23MR25 (PN25)

FEATURES & SPECIFICATIONS

Rising stem, Outside Screw & Yoke (OS&Y).
Bolted bonnet.
Metal seat design.
Painted body.
Comply with BS 5150 / EN 1171.
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / BS 4504 PN25 / EN 1092-2 PN25 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.

Categories Iron Valves, Mechanical Service & HVAC

PRESSURE & TEMPERATURE RATINGS

Working Pressure	16bar / 25bar
Shell Testing Pressure (x1.5)	24bar / 37.5bar
Seat Testing Pressure (x1.1)	17.6bar / 27.5bar
Working Temperature	-10°C … 120°C
Suitable Media	Water, Oil, Gas

Material Specification

Part	Material	Specification
Body	Cast Iron Ductile Iron	EN-JL 1040 EN-JS 1050
Bonnet	Cast Iron Ductile Iron	EN-JL 1040 EN-JS 1050
Disc	Cast Iron Ductile Iron	EN-JL 1040 EN-JS 1050
Stem	Stainless Steel	BS970 420S37
Seat Ring	Bronze
Packing	Graphite	Non-Asbestos
Hand Wheel	Ductile Iron	EN-JS 1050

DIMENSIONS

DN	(mm) (inch)	50 2	65 2½	80 3	100 4	125 5	150 6	200 8	250 10	300 12	350 14	400 16	450 18	500 20	600 24
	L	178	190	203	229	254	267	292	330	356	381	406	432	457	508
	H (Open)	375	422	475	606	683	828	1003	1211	1421	1641	1828	2047	2246	2632
	D	160	160	200	200	250	250	280	370	370	640	640	720	720	720

Related products

F7Z16 DZR BRASS Y-TYPE STRAINER

F5B16L BRASS LIFT CHECK VALVE

V12 FULL LUG BUTTERFLY VALVE

F2G32R BRONZE RISING STEM GATE VALVE

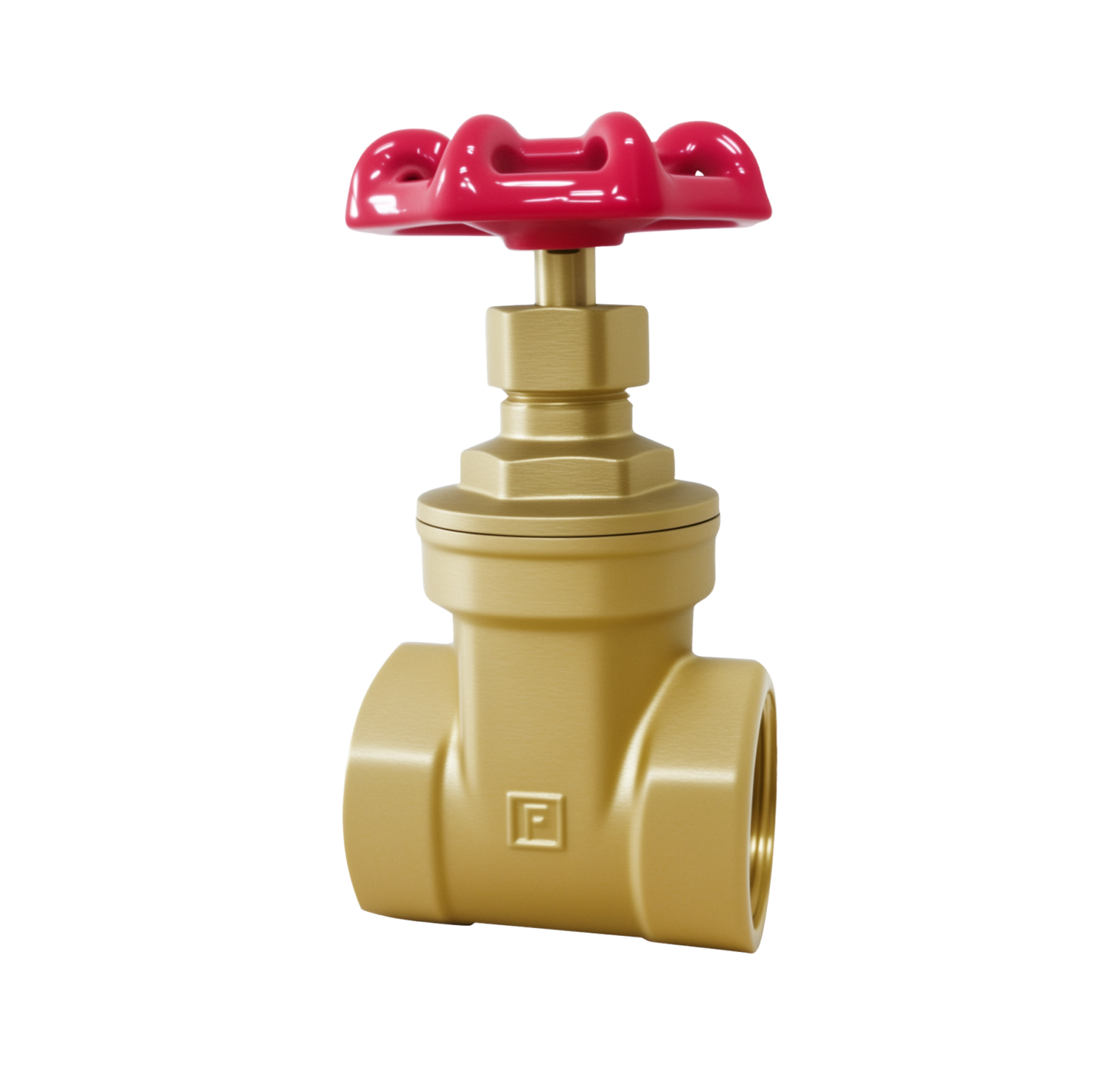

F2B16 BRASS NRS GATE VALVE
