Materials
| Part | Material |
| Body | Ductile Iron |
| Cover | Ductile Iron |
| Disc | EPDM coated Ductile Iron |
| Stem Nut | Brass Ductile Iron |
| Stem | Stainless Steel 420 |
| Card Block | Brass Carbon Steel |
| O-Ring | NBR |
| Bolt | Carbon Steel |
| Gasket | EPDM |
| Square Cap | Ductile Iron |

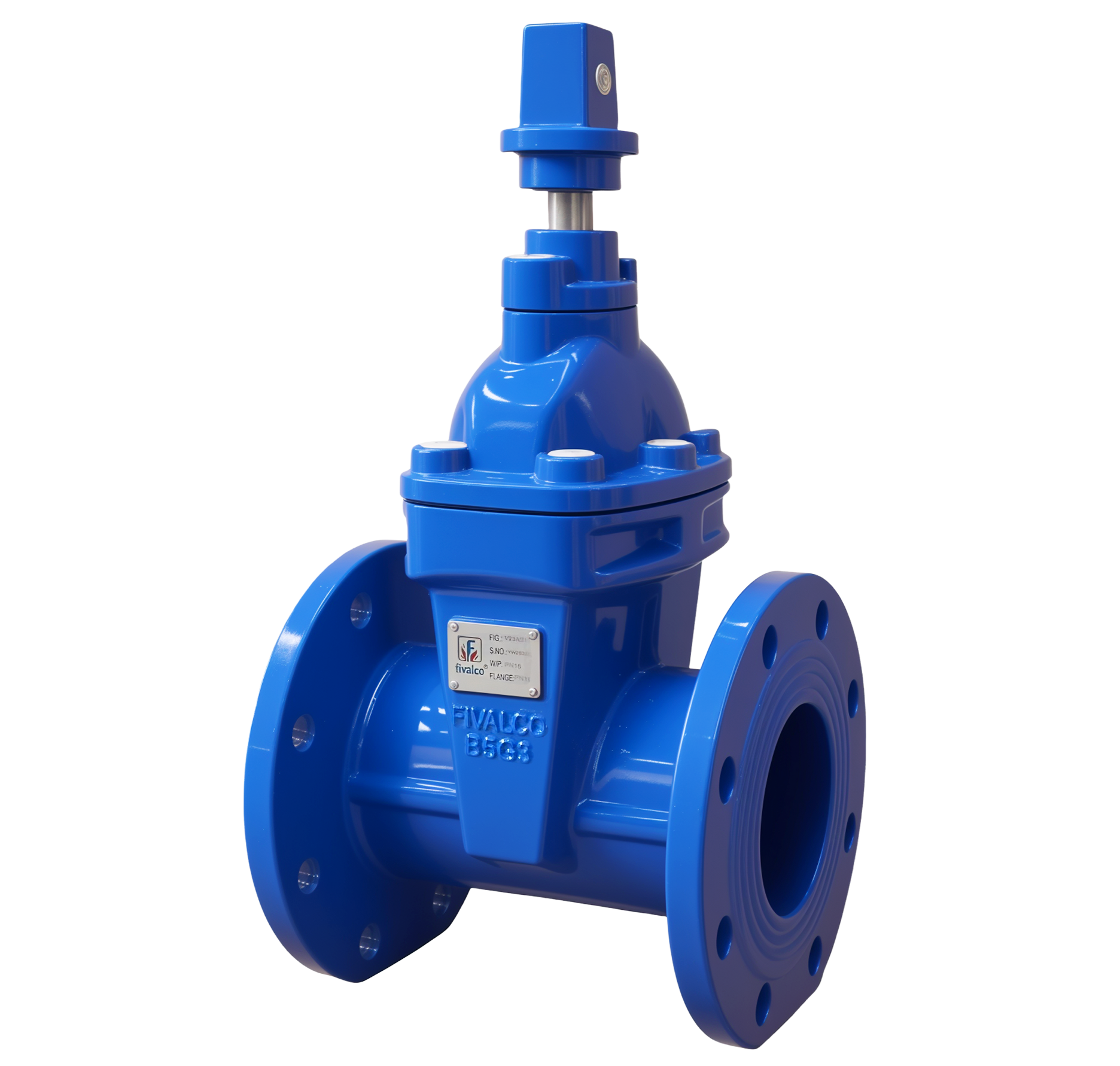

PN16 Fig No.: V23AS16
FEATURES & SPECIFICATIONS
Non-rising stem.
Inside screw.
Bolted bonnet.
Full bore port allows optimum and smooth flowing passage.
Fully encapsulated rubber disc.
Resilient seat for superior pipeline isolation.
Durable fusion bonded epoxy coated.
Handwheel or removable square key operated.
Comply with BS 5163 / EN 1074-2.
Square cap available upon request.
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 16bar.
Shell test pressure (x1.5) : 24bar.
Seat test pressure (x1.1) : 17.6bar.
Working temperature : -10°C … 80°C
Suitable Media : Water.
| Part | Material |
| Body | Ductile Iron |
| Cover | Ductile Iron |
| Disc | EPDM coated Ductile Iron |
| Stem Nut | Brass Ductile Iron |
| Stem | Stainless Steel 420 |
| Card Block | Brass Carbon Steel |
| O-Ring | NBR |
| Bolt | Carbon Steel |
| Gasket | EPDM |
| Square Cap | Ductile Iron |
| DN | (mm) (inch) |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
350 14 |
400 16 |
450 18 |
500 20 |
600 24 |

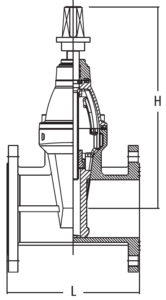

| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 | |
| H | 263 | 275 | 304 | 341 | 398 | 440 | 535 | 627 | 702 | 885 | 970 | 1057 | 1155 | 1310 |
