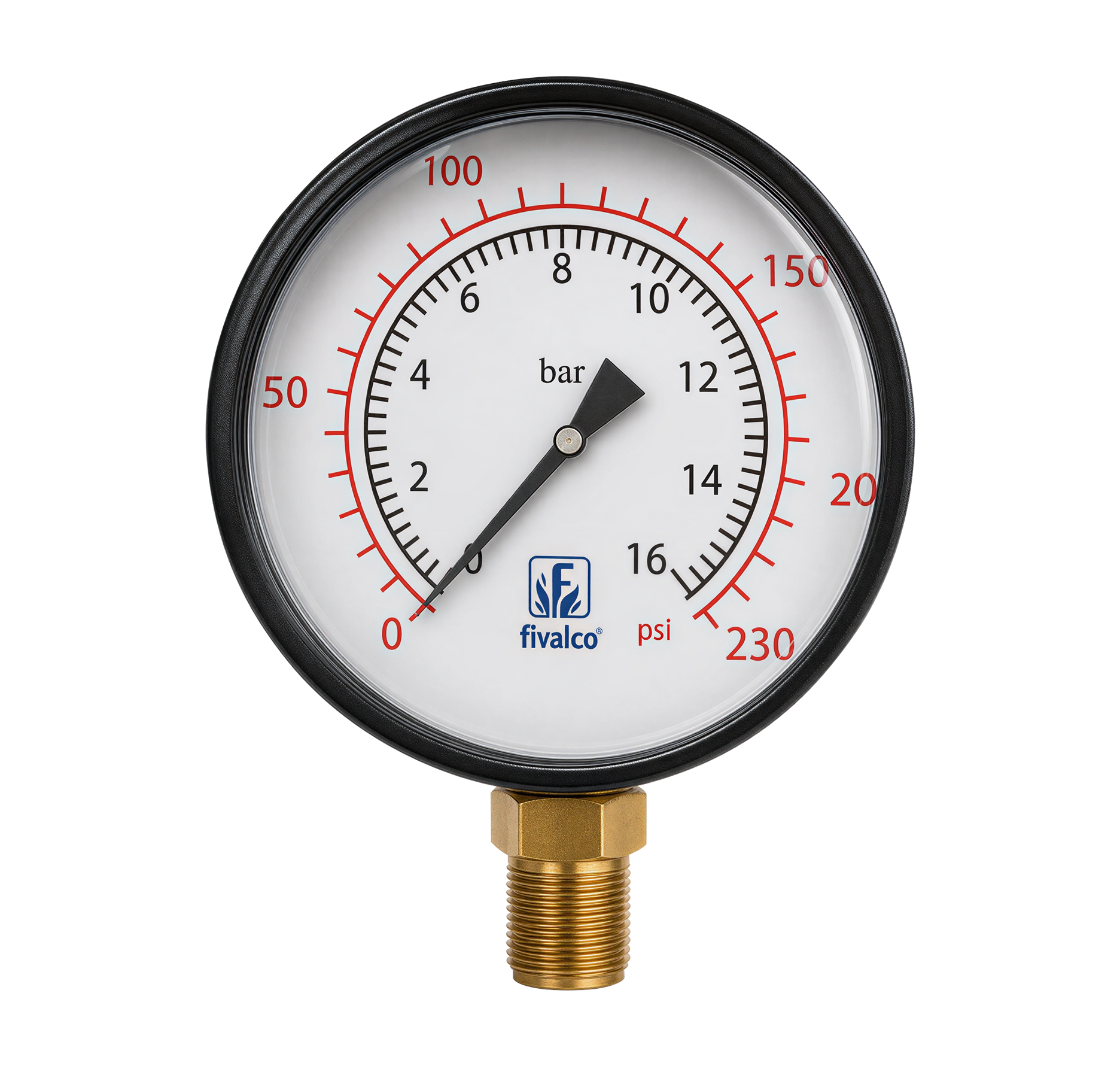

Fig No.: FP11 / FP12
FEATURES & SPECIFICATIONS
Economical, designed for general services.
Dual scale pressure units reading.
Bottom or center back socket connection.
Suitable for medium which is non-corrosive to brass.
Design conforms to EN837-1.
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, General Industries.
| Dial Size | 4″ (100mm) / 6″ (150mm) |
| Case | Steel, Black |
| Bezel | Steel |
| Socket | Brass |
| Connection | FP11 – ⅜” Bottom Entry FP12 – ½” Center Back Entry |
| Connection Standard | BSPT |
| Lens | Glass |
| Pointer | Aluminium, Black |
| Scale Unit | Dual Scale in bar & psi |
| Bourdon Tube | Phosphor Bronze |
| Movement | Brass |
| Working Pressure | Maximum 75% of Full Scale Value |
| Process Temperature | -10°C … 65°C |
| Accuracy | +/- 3-2-3% ANSI/ASME Grade B |
| Protection | IP52 |
| FP11 | – | 100 | x | 10 | . | 0/16 | ||
| Type / Model | Bottom connection Center back connection |
FP11 FP12 |
||||||
| Dial | 100mm (4″) | 100 | ||||||
| 150mm (6″) | 150 | |||||||
| Connection | 10mm (⅜”) | 10 | ||||||
| 15mm (½”) | 15 | |||||||
| Pressure Range | -760mmHg…0 ; -30inHg…0 | V/00 | ||||||
| -760mmHg…4bar ; -30inHg…60psi | C/04 | |||||||
| 0…7bar ; 0…100psi | 0/07 | |||||||
| 0…10bar ; 0…150psi | 0/10 | |||||||
| 0…16bar ; 0…230psi | 0/16 | |||||||
| 0…20bar ; 0…300psi | 0/20 | |||||||
| 0…30bar ; 0…430psi | 0/30 |
