Materials
| Name | Material |
|---|---|
| Body | Brass |
| Bonnet | Brass |
| Disc | Brass |
| Stem | Brass |
| Packing | PTFE |
| Packing Nut | Brass Rod |
| Gland | Brass Rod |
| Handwheel | Cast Iron |
| Gasket | PTFE |

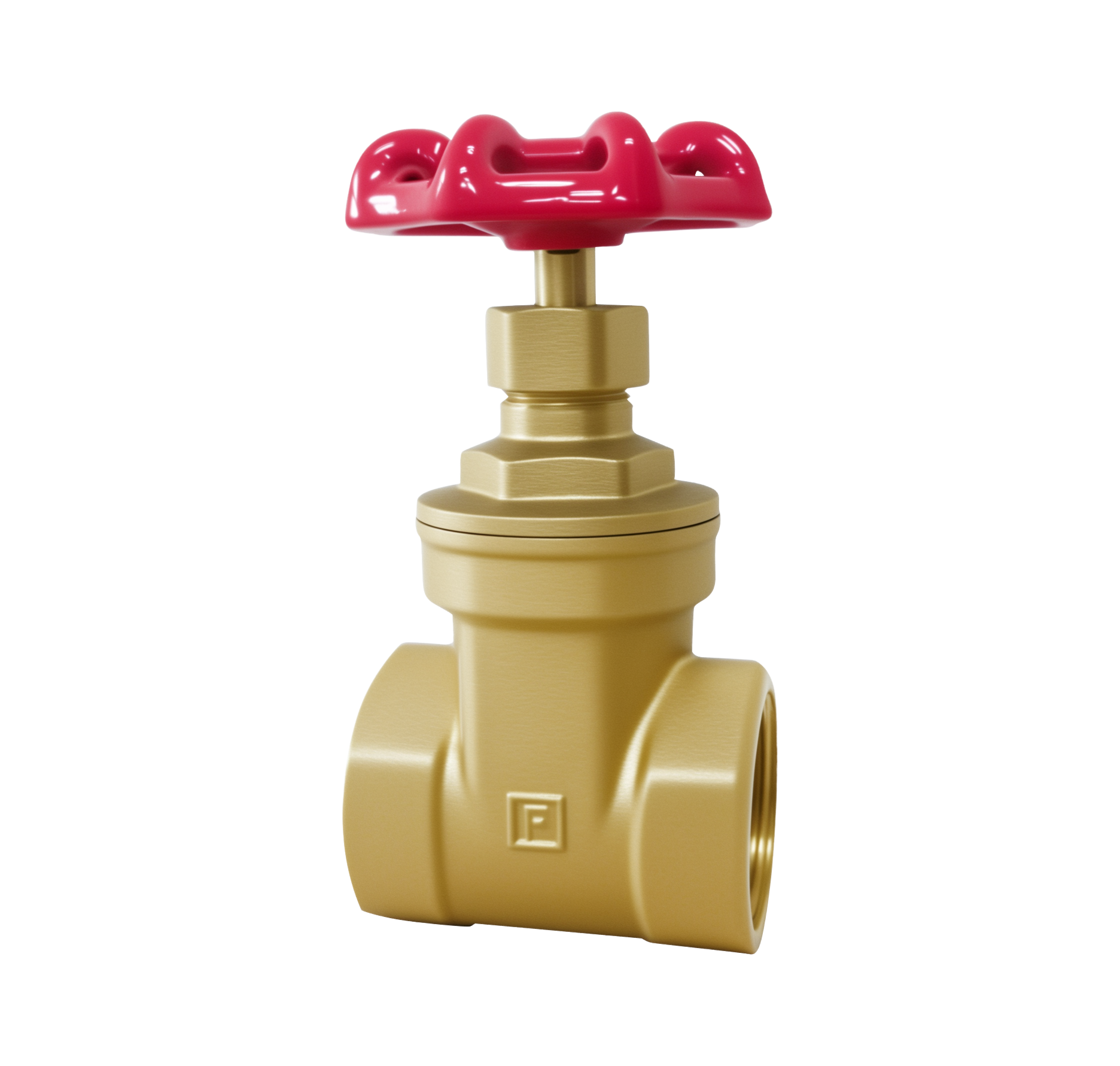

PN16 Fig No.: F2B16
FEATURES & SPECIFICATIONS
Threaded bonnet.
Solid wedge disc.
Non-rising stem.
Integral seat.
Threaded to EN 10226-1 (ISO 7).
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.
Working pressure : 16bar WOG Non-Shock / 8.6bar Saturated Steam.
Testing pressure (x1.5) : 24bar Hydrostatic.
Working temperature : -10°C … 170°C.
Suitable Media : Water, Oil & Gas.
| Name | Material |
|---|---|
| Body | Brass |
| Bonnet | Brass |
| Disc | Brass |
| Stem | Brass |
| Packing | PTFE |
| Packing Nut | Brass Rod |
| Gland | Brass Rod |
| Handwheel | Cast Iron |
| Gasket | PTFE |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |

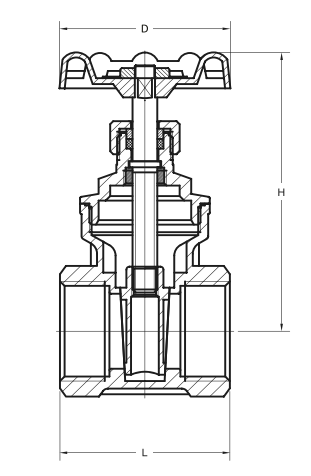

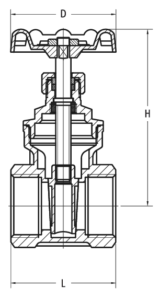

| L | 45 | 49 | 55 | 62 | 64 | 72 | 88 | 98 | 107 | |
| H | 75 | 83 | 94 | 111 | 124 | 144 | 186 | 209 | 255 | |
| D | 53 | 53 | 58 | 72 | 72 | 78 | 96 | 110 | 130 |
