Materials
| Name | Material |
|---|---|
| Body | Brass |
| Ball bearing | Stainless Steel 304 |
| Coupling | Brass |
| Washer | EPDM |
| Screw | Brass |
| Henge pin | Brass |
| O-ring | EPDM |
| Clapper | Brass |
| Key-ring | Stainless Steel 304 |
| Cap & Chain | Brass |
| Base plate | Brass |

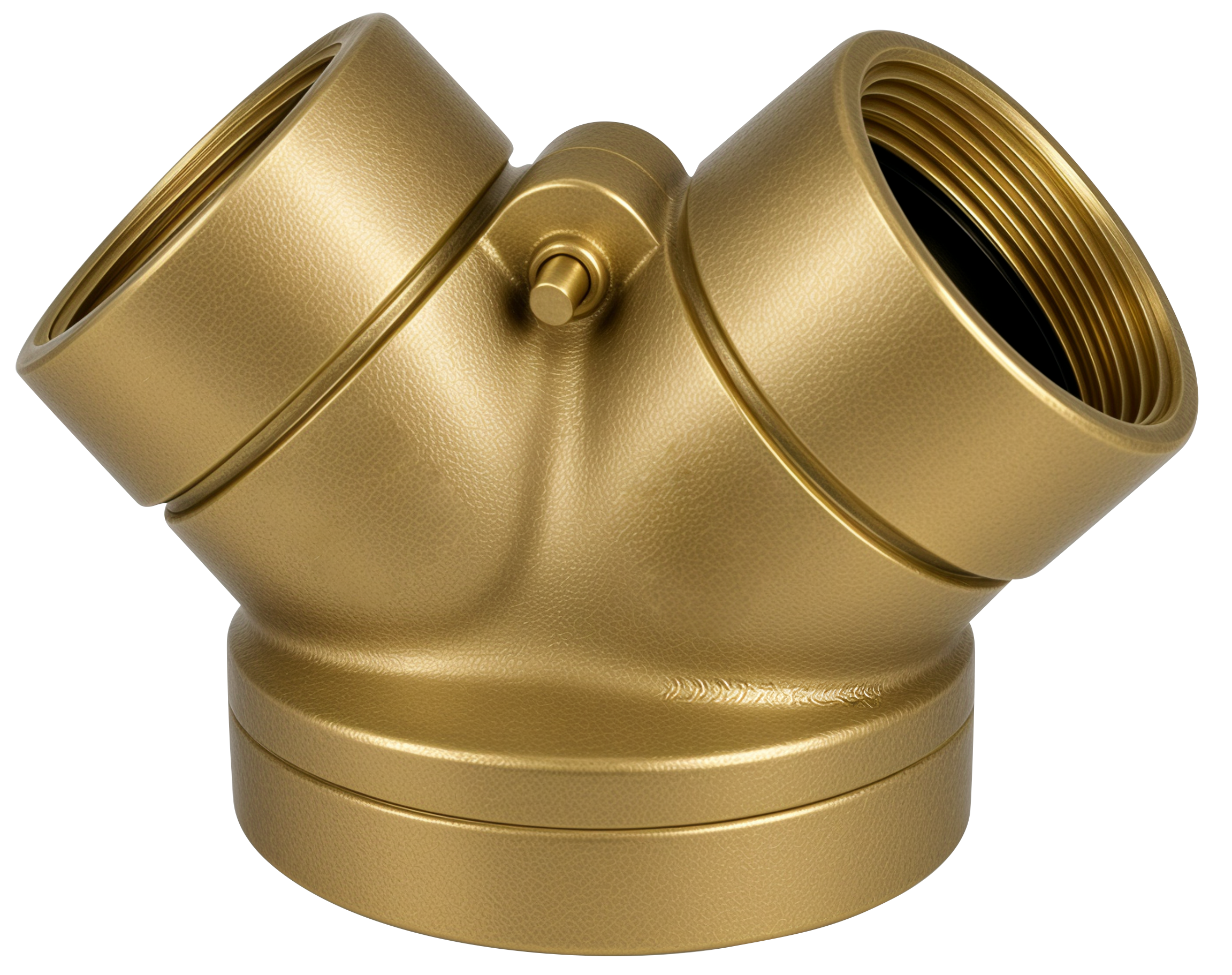

300PSI Fig No.: FBFCS
FEATURES & SPECIFICATIONS
Straight body design.
K-factor 5.6.
Connection : 4″ x 2½” x 2½” (DN100 x DN65 x DN65), NPT or BSPT.
2½” pin lug swivels for ease of operation.
Designed in accordance with UL405.

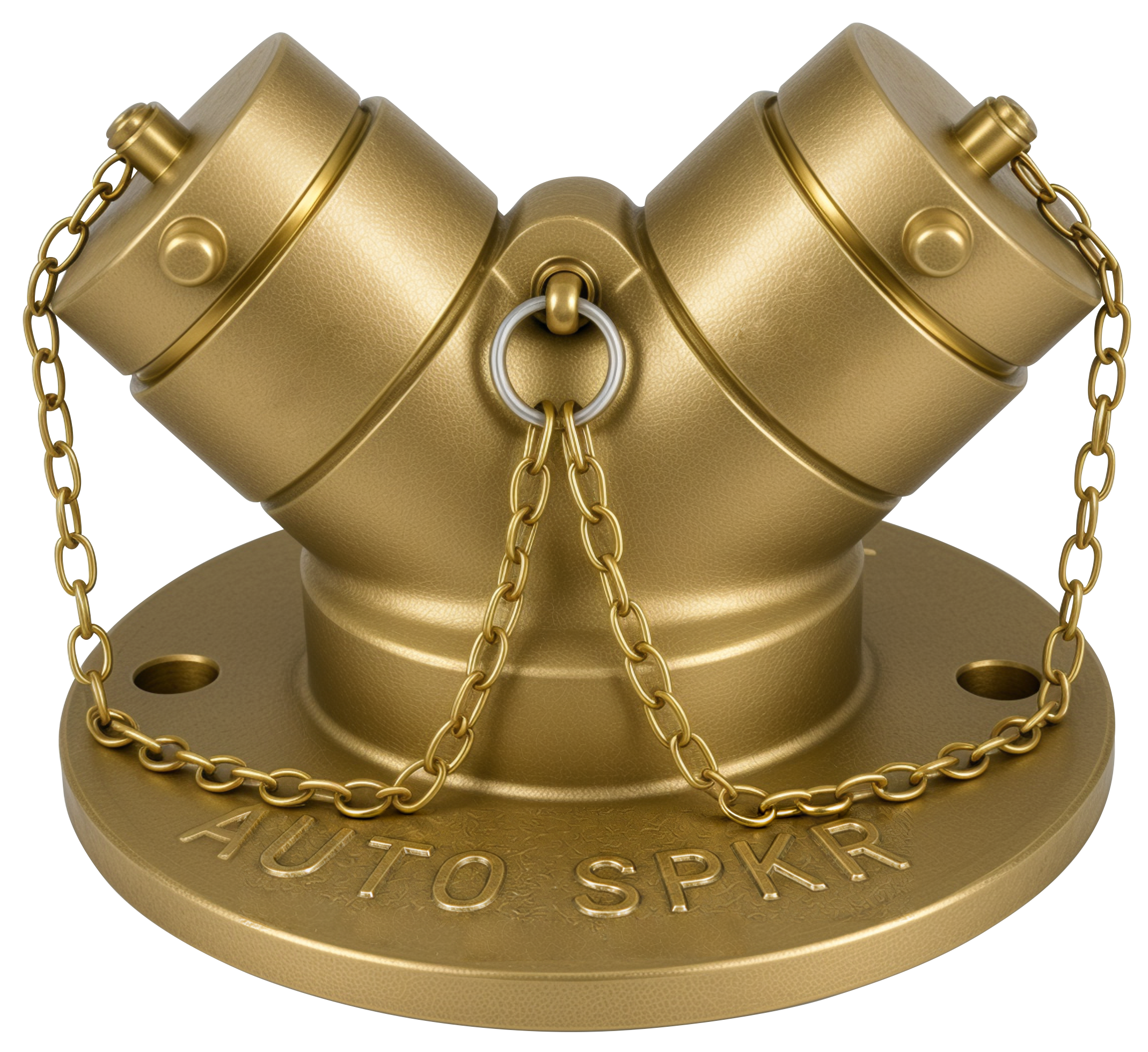

Caps, chain and base plate available upon request.
Working pressure : 300psi.
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Brass |
| Ball bearing | Stainless Steel 304 |
| Coupling | Brass |
| Washer | EPDM |
| Screw | Brass |
| Henge pin | Brass |
| O-ring | EPDM |
| Clapper | Brass |
| Key-ring | Stainless Steel 304 |
| Cap & Chain | Brass |
| Base plate | Brass |

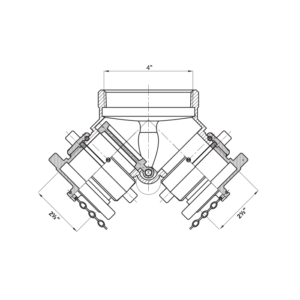

| Size | 4″ x 2½” x 2½” |
|---|---|
| H | 143.6 |
| L | 211.34 |
| D | 100 |
| D1 | 65 |
| D2 | 65 |
| A | 248.5 |
| A1 | 236 |
| A2 | 128.5 |
| A3 | 116.6 |
| B1 | 6 |
| B2 | 4.2 |
