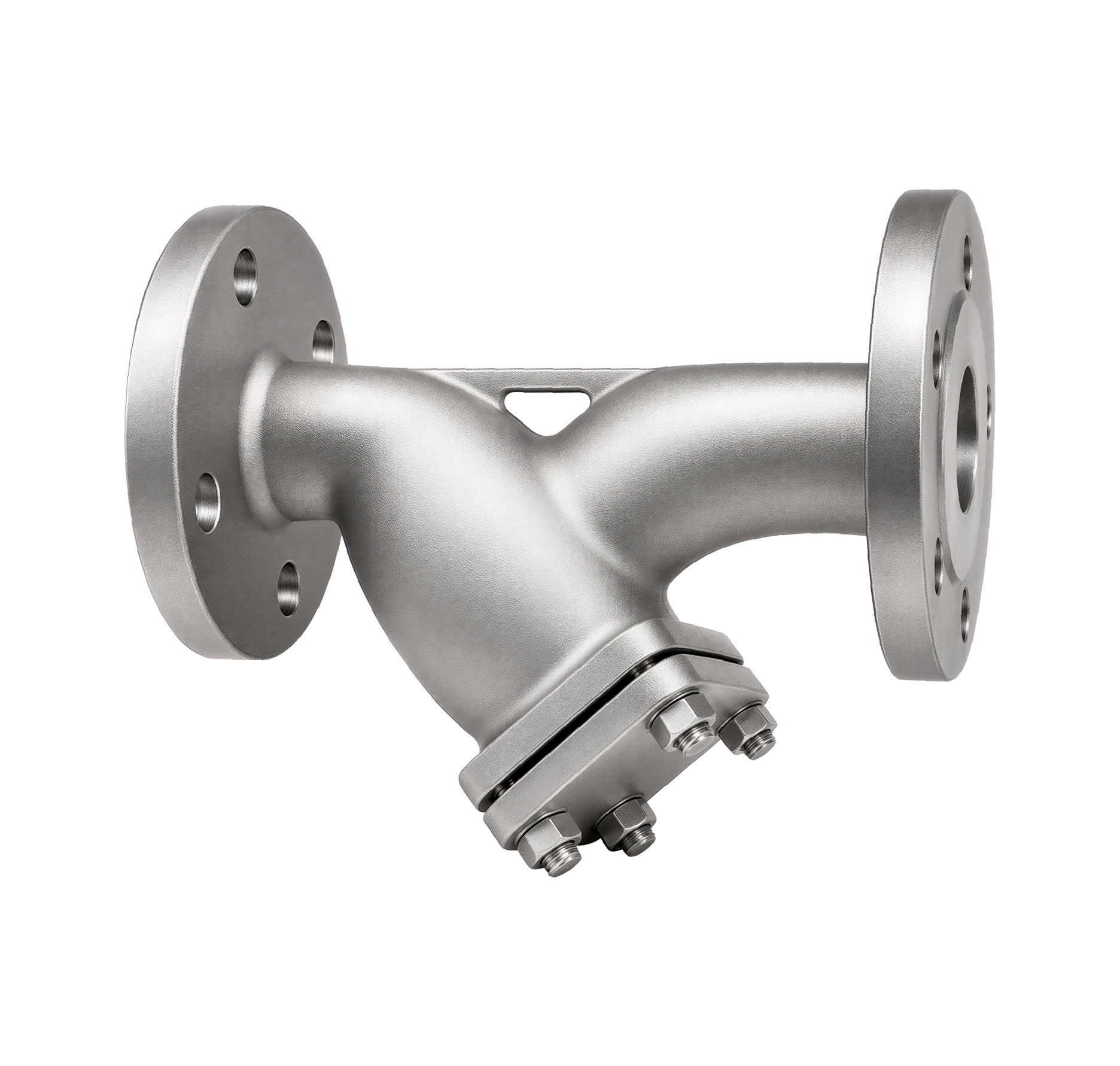

PN16 Fig No.: F73Y16-50 (SS304) / F73Y16-51 (SS316)
FEATURES & SPECIFICATIONS
Filter the particles and debris that may be carried by process fluid in the pipeline.
Bolted cover with drain plug.
Stainless steel perforated screen.
Design conforms to GB/T 12224-2005.
Face to face dimension to GB/T 12221-2005.
Oil-free processing treatment option available.
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 16bar.
Shell test pressure (x1.5) : 24bar.
Seat test pressure (x1.1) : 17.6bar.
Working temperature : -20°C … 160°C.
Suitable Media : Water, Oil & Gas.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Screen | Stainless Steel 304 Stainless Steel 316 |
| Bonnet | Stainless Steel 304 Stainless Steel 316 |
| Plug | Stainless Steel 304 |
| Nut | Stainless Steel 304 |
| Bolt | Stainless Steel 304 |
| Gasket | PTFE |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |

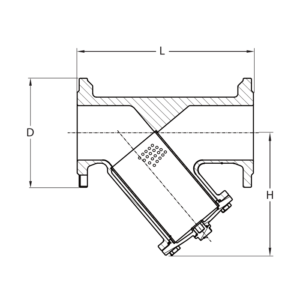

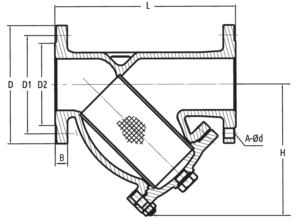

| L | 130 | 140 | 155 | 180 | 200 | 220 | 250 | 280 | 320 | 350 | 380 | 470 | 570 | 625 | |
| H | 75 | 80 | 105 | 115 | 130 | 145 | 170 | 195 | 215 | 260 | 290 | 360 | 410 | 495 | |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | |
| D2 | 46 | 56 | 65 | 76 | 84 | 99 | 118 | 132 | 156 | 184 | 211 | 266 | 319 | 370 | |
| A-Ød | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-18 | 8-22 | 12-22 | 12-26 | 12-26 | |
| B | 14 | 16 | 18 | 18 | 18 | 18 | 20 | 20 | 20 | 22 | 22 | 24 | 26 | 28 | |
| Hole Plug Dia. | N/A | N/A | N/A | N/A | M14 | M14 | M16 | M18 | M18 | M18 | M18 | M18 | M20 | M22 |
| DN (mm) |
Mesh | Hole Diameter |
| 15 … 200 | 40 | 380 micron |
