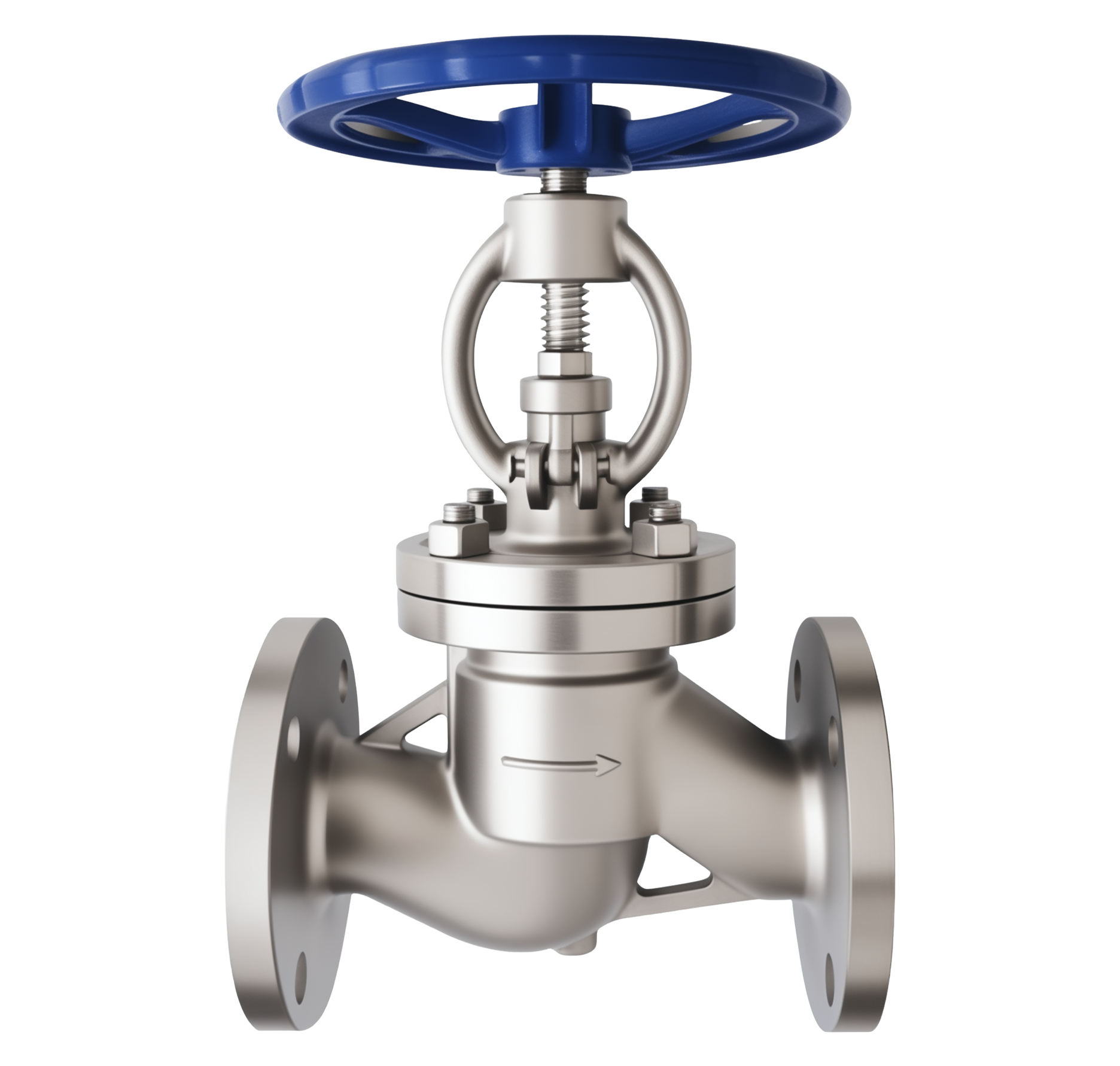

PN16 Fig No.: F33S16-50 (SS304) / F33S16-51 (SS316)
FEATURES & SPECIFICATIONS
Rising stem, Outside Screw & Yoke (OS&Y).
Bolted bonnet.
S-pattern body construction design.
Design conforms to GB/T 12224-2005.
Face to face dimension to GB/T 12221-2005.
Flange drilled to EN 1092-2 PN16 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.
Working pressure : 16bar.
Shell test pressure (x1.5) : 24bar.
Seat test pressure (x1.1) : 17.6bar.
Working temperature : -25°C … 150°C.
Suitable Media : Water, Oil & Gas.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Seat | Stainless Steel 304 Stainless Steel 316 |
| Stem | Stainless Steel 304 Stainless Steel 316 |
| Gasket | Stainless Steel 304 |
| Bolt | Stainless Steel 304 |
| Bonnet | Stainless Steel 304 |
| Packing | PTFE |
| Gland | Stainless Steel 304 |
| Nut | Aluminium Bronze |
| Handwheel | Ductile Iron |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |

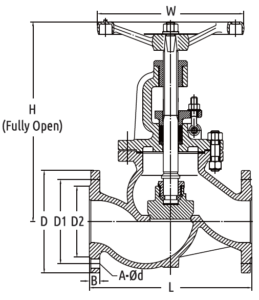

| L | 130 | 150 | 160 | 190 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | |
| H | 200 | 200 | 232 | 265 | 280 | 315 | 380 | 410 | 500 | 584 | 667 | 710 | |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | |
| D2 | 46 | 56 | 65 | 76 | 84 | 99 | 118 | 132 | 156 | 184 | 211 | 266 | |
| W | 140 | 140 | 140 | 160 | 160 | 200 | 200 | 250 | 250 | 300 | 350 | 350 | |
| A-Ød | 4-14 | 4-14 | 4-14 | 4-19 | 4-19 | 4-19 | 8-19 | 8-19 | 8-19 | 8-19 | 8-23 | 12-23 | |
| B | 14 | 16 | 16 | 18 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 20 |
