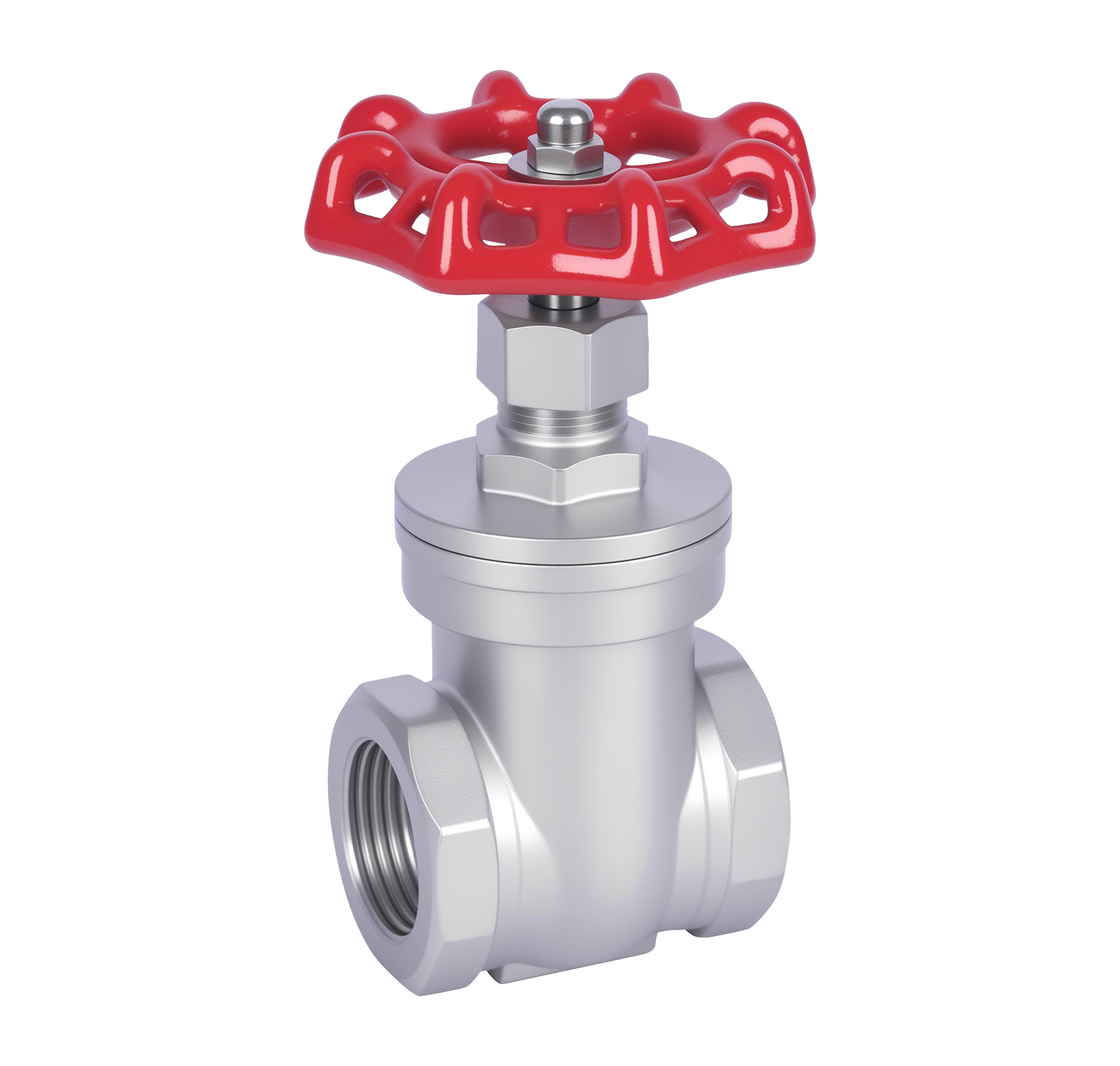

200PSI Fig No.: F2S200-50 (SS304) / F2S200-51 (SS316)
FEATURES & SPECIFICATIONS
Threaded bonnet.
Solid wedge disc.
Non-rising stem.
Integral seat.
Full bore design.
Oil-free processing treatment option available.
Threaded to BS21 / ANSI B2.1 / DIN 259 / DIN 2999.
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 200psi WOG Non-Shock.
Shell test pressure : x1.5 times.
Seat test pressure : x1.1 times.
Working temperature : -25°C … 180°C.
Suitable Media : Water, Oil & Gas.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Disc | Stainless Steel 304 Stainless Steel 316 |
| Stem | Stainless Steel 304 Stainless Steel 316 |
| Seal | PTFE |
| Gland | Stainless Steel 304 |
| Nut | Stainless Steel 304 |
| Bonnet | Stainless Steel 304 Stainless Steel 316 |
| Thrust Gasket | PTFE |
| Packing | PTFE |
| Pad | Stainless Steel 304 |
| Jump Ring | Stainless Steel 304 |
| Handwheel | Cast Iron |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |

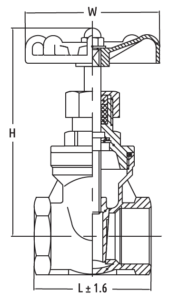

| L | 52 | 57 | 61 | 70 | 73 | 84 | 104 | 117 | 127 | |
| H | 89 | 95 | 107 | 123 | 130 | 150 | 208 | 226 | 239 | |
| W | 63 | 63 | 63 | 77 | 98 | 98 | 125 | 125 | 140 |
