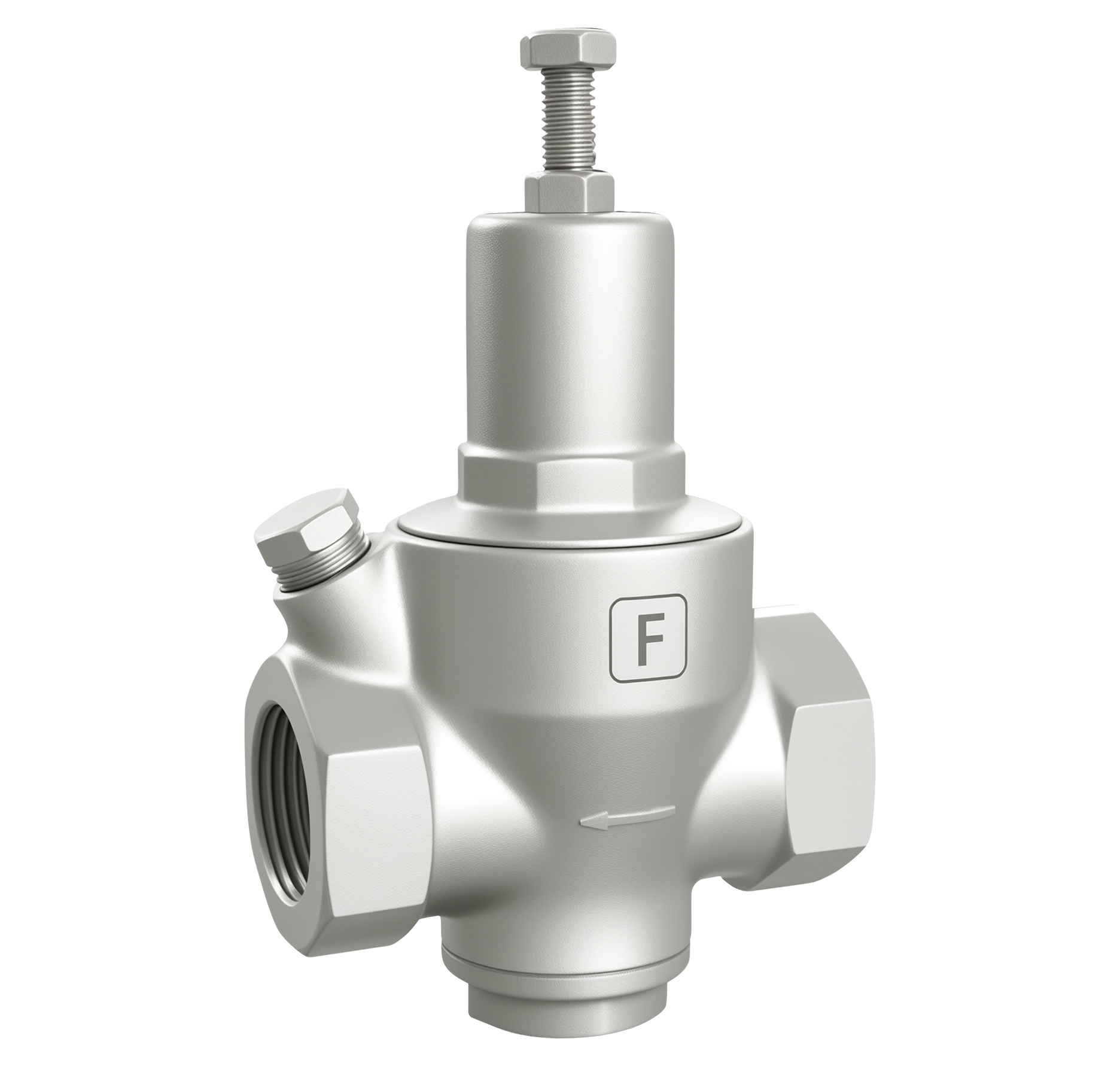

PN16 Fig No.: F6S16-50 (SS304) / F6S16-51 (SS316)
FEATURES & SPECIFICATIONS
Automatic reduces the higher inlet pressure to a steady lower downstream pressure, regardless of fluctuating demand or varying upstream pressure.
Ensures consistent and reliable pressure supply for valve actuation.
Stainless steel material with excellent corrosion resistance.
Threaded to EN 10226-1 (ISO 7).
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 16bar.
Shell test pressure (x1.5) : 24bar.
Working temperature : -20°C … 120°C.
Suitable Media : Water, Oil & Gas.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Spring | Stainless Steel 304 Stainless Steel 316 |
| Bonnet | Stainless Steel 304 Stainless Steel 316 |
| Gasket | PTFE |
| Seat | Stainless Steel 304 + PTFE |
| Piston | Stainless Steel 304 |
| O-ring | FKM / EPDM |
| Tectum | Stainless Steel 304 |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |

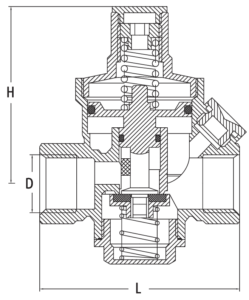

| L | 69.5 | 73.5 | 82 | 83 | 98.5 | 121 | 124 | |
| H | 91 | 97.5 | 117 | 129.5 | 157.5 | 178 | 187 | |
| D | ½” | ¾” | 1″ | 1¼” | 1½” | 2″ | 2½” |
