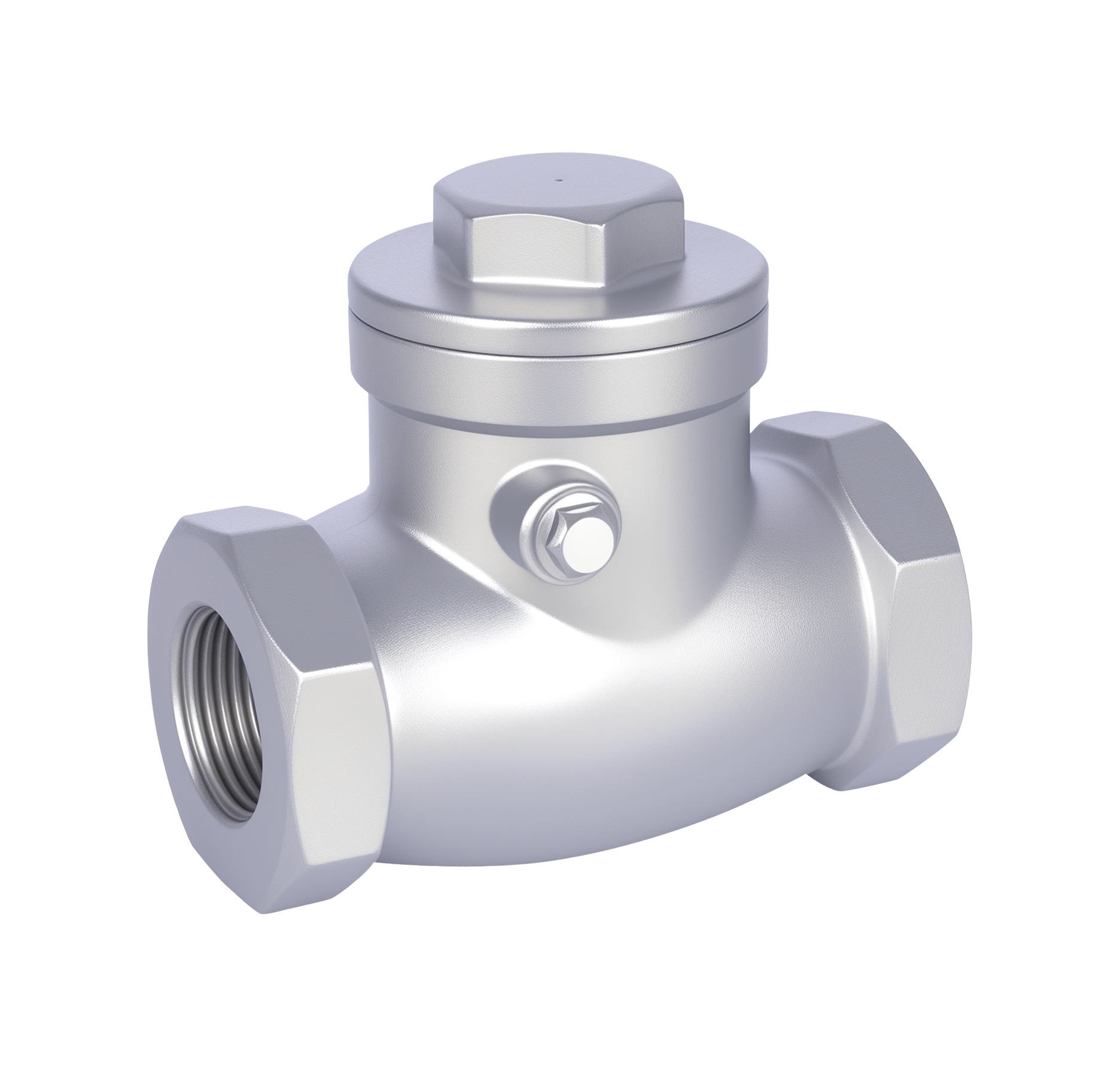

F5S200S SS SWING CHECK VALVE

F5S200S SS SWING CHECK VALVE

Fig No.: F5S200S-50 (SS304) / F5S200S-51 (SS316)

FEATURES & SPECIFICATIONS

Swing disc.
Integral seat.
Threaded cap.
Threaded to BS21 (ISO 7) / ANSI B2.1 / DIN 259 / DIN 2999.
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, General Industries.

Category Stainless Steel Industrial Valves

Material Specification

Body	Stainless Steel 304 Stainless Steel 316
Disc	Stainless Steel 304 Stainless Steel 316
Pipe Plug	Stainless Steel 304
Plug Gasket	Stainless Steel 304
Gasket	PTFE
Cap	Stainless Steel 304 Stainless Steel 316
Seal	PTFE

Pressure & Temperature Ratings

Working Pressure	200psi WOG Non-Shock
Shell Testing Pressure	x1.5 times
Seat Testing Pressure	x1.1 times
Working Temperature	-25°C…180°C
Suitable Media	Water, Oil & Gas

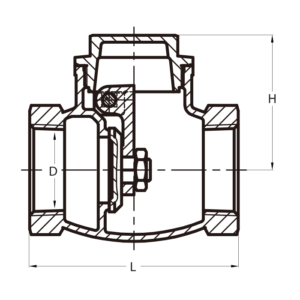

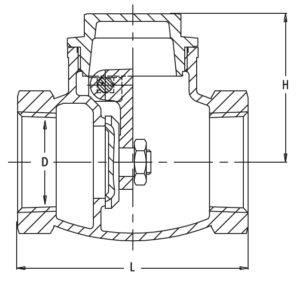

DIMENSIONS VALVE BODY

DN	(mm) (inch)	8 ¼	10 ⅜	15 ½	20 ¾	25 1	32 1¼	40 1½	50 2	65 2½	80 3	100 4
L		65	63	65	80	90	105	120	140	164	190	240
H		42	42	42	50	58	62	72	81	94	103	136
D		10	12	15	20	25	32	40	50	64	73	94
