PN16/PN25     Fig No.: F51DD16-50 (SS304) / F51DD16-51 (SS316) / F51DD25-50 (SS304) / F51DD25-51 (SS316)

FEATURES & SPECIFICATIONS

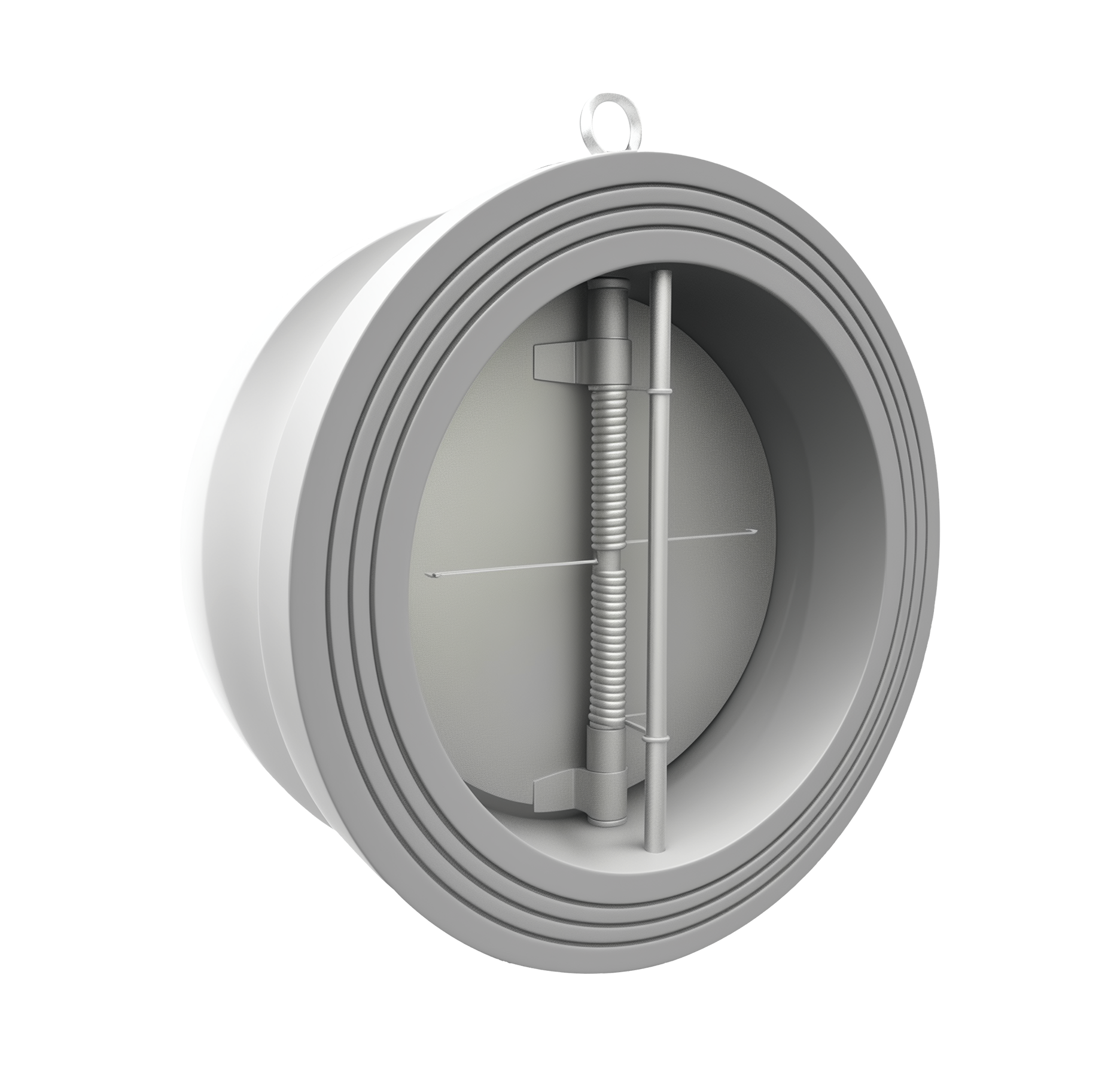

Spring loaded double door.
Rubber seat for non-slam effect.
Oil-free processing treatment option available.
Wafer connection to BS 4504 PN16 / EN 1092-2 PN16 / BS 4504 PN25 / EN 1092-2 PN25 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 16bar/25bar
Shell test pressure (x1.5) : 24bar/37.5bar
Seat test pressure (x1.1) : 17.6bar/27.5bar
Working temperature : -20°C … 120°C.
Suitable Media : Water, Oil & Gas.
