Materials
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Bonnet | Stainless Steel 304 Stainless Steel 316 |
| Screen | Stainless Steel 316 |
| Gasket | PTFE |
800PSI Fig No.: F7S800-50 (SS304) / F7S800-51 (SS316)
FEATURES & SPECIFICATIONS

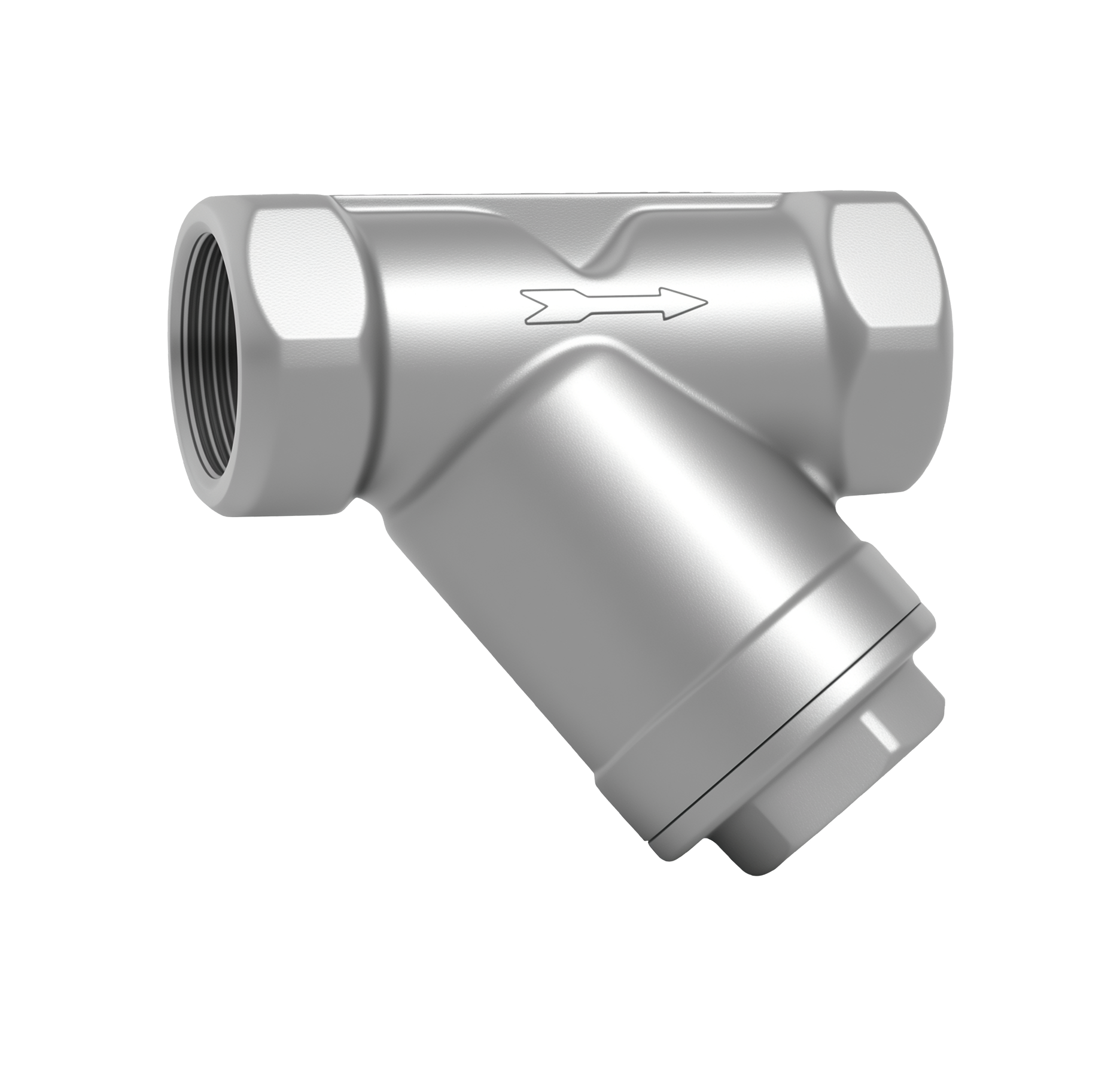

Y-pattern body.
Threaded cap.
Stainless steel mesh.
Oil-free processing treatment option available.
Threaded to BS 21 (ISO 7) / ANSI B2.1 / DIN 259 / DIN 2999.
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 800psi WOG Non-Shock.
Test pressure : x1.5 times.
Working temperature : -25°C … 180°C.
Suitable Media : Water, Oil & Gas.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Bonnet | Stainless Steel 304 Stainless Steel 316 |
| Screen | Stainless Steel 316 |
| Gasket | PTFE |
| DN | (mm) (inch) |
8 ¼ |
10 ⅜ |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |

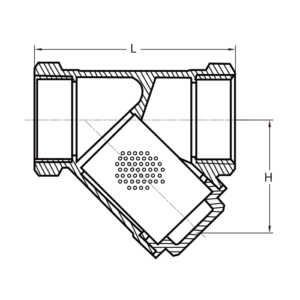

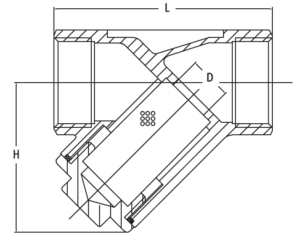

| L | 64 | 64 | 64 | 80 | 90 | 106 | 119 | 140 | |
| H | 43 | 43 | 43 | 50 | 65 | 69 | 79 | 92 | |
| D | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 |
| DN (mm) |
Hole Diameter (mm) |
Hole/inch |
| 8 … 50 | 2 | 1 |
