365PSI Fig No.: 3299-365-MJ
FEATURES & SPECIFICATIONS
Rising stem, Outside Screw & Yoke (OS&Y).
Stainless steel stem.
Valve conforms to AWWA C515 / BS5163.
Fusion bonded epoxy coated interior and exterior RAL3002.
Mechanical joint ends to AWWA C111 / A21.11.
Working pressure : 365psi.
Working temperature : -10°C … 120°C
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Ductile Iron ASTM A536 65-45-12 |
| Wedge | Ductile Iron ASTM A536 65-45-12 + EPDM |
| Wedge Nut | Stainless Steel AISI 304 |
| Stem | Stainless Steel AISl 304 |
| Bonnet | Ductile Iron ASTM A536 65-45-12 |
| Gasket | EPDM |
| Packing | Graphite |
| Stem Nut | Bronze ASTM B62 |
| Handwheel | Ductile Iron ASTM A536 65-45-12 |

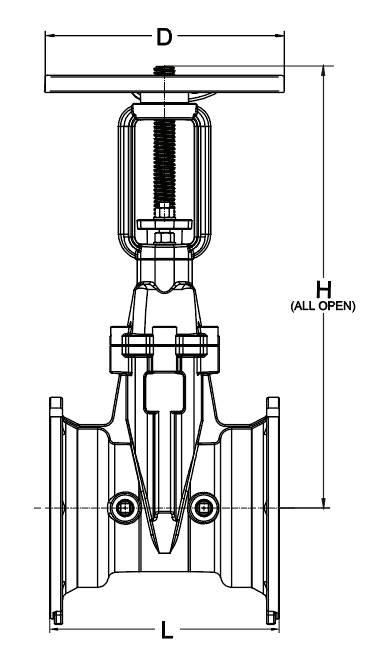

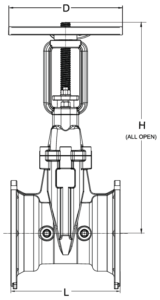

| Size | 3″/DN80 | 4″/DN100 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| L | 241 | 254 | 292 | 318 | 375 | 378 |
| H | 463 | 522 | 715 | 913 | 1118 | 1300 |
| D | 220 | 220 | 306 | 370 | 420 | 445 |
| Size | 3″/80 | 4″/100 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| Net Weight (Kg) | 18.36 | 23.05 | 31.66 | 62.3 | 109.67 | 157 |
| Create Qty | 16 | 16 | 9 | 6 | 4 | 2 |
