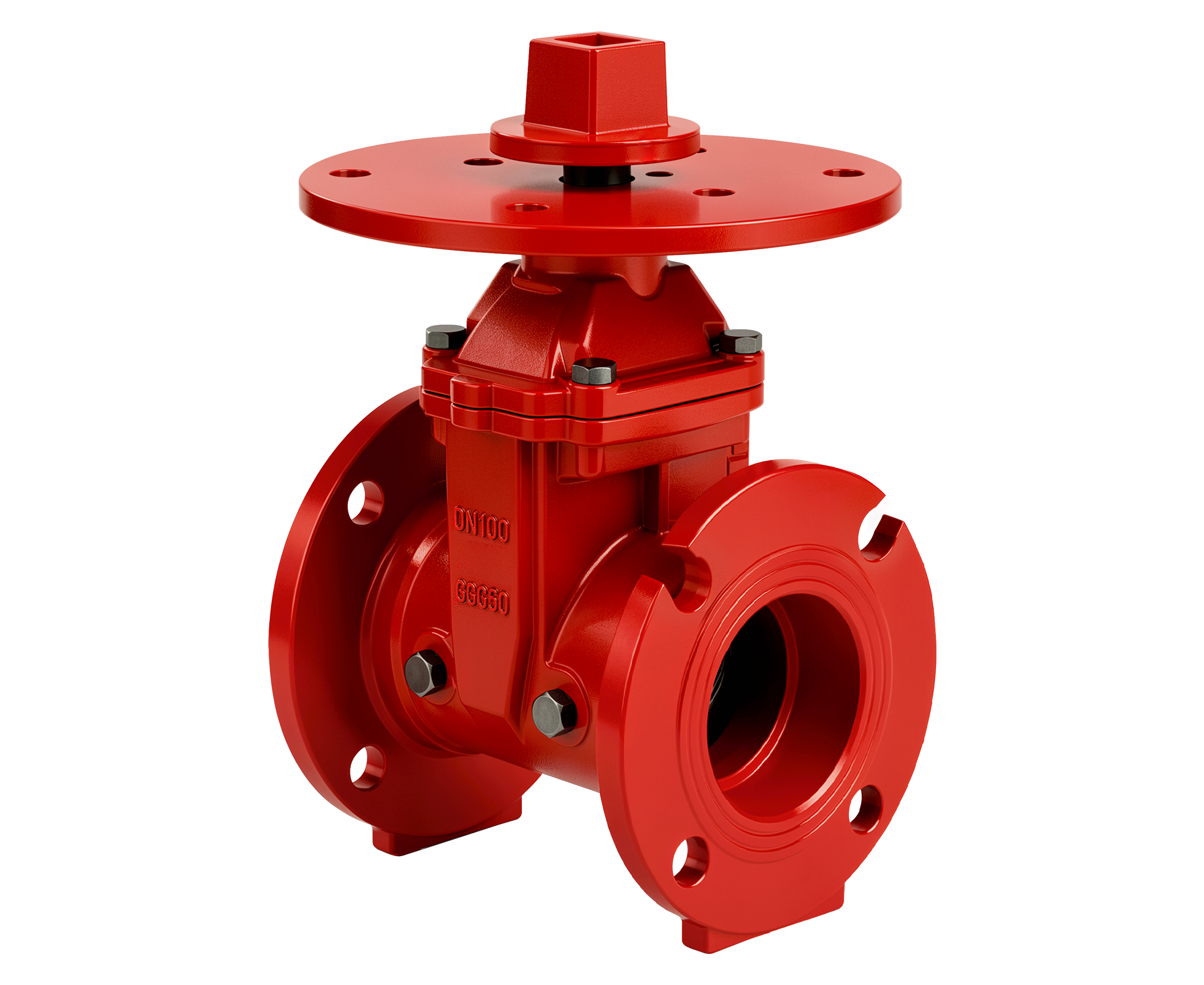

365PSI Fig No.: 3288-365-FM
FEATURES & SPECIFICATIONS
Non-rising stem.
Stainless steel stem.
Valve conforms to AWWA C515 / BS5163.
Fusion bonded epoxy coated interior and exterior RAL3002.
Flange drilled to ANSI B16.1 Class 125 / ANSI B16.5 Class 150 / EN1092-2 PN16 / BS10 Table D / Table E.
Mechanical joint ends to AWWA C111 / A21.11.
Working pressure : 365psi.
Working temperature : -10°C … 120°C
All valves provided with 2″ (50mm) operating nut.
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Ductile Iron ASTM A536 65-45-12 |
| Wedge Disc | Ductile Iron ASTM A536 65-45-12 + EPDM |
| Disc Nut | Bronze ASTM B62 |
| Stem | Stainless Steel AISI 304 |
| Gasket | EPDM |
| Bonnet | Ductile Iron ASTM A536 65-45-12 |
| Thrust Collar | Bronze ASTM B62 |
| Gland | Ductile Iron ASTM A536 65-45-12 |
| Wrench Nut | Ductile Iron ASTM A536 65-45-12 |
| Post Plate | Ductile Iron ASTM A536 65-45-12 |
| Size | 3″ / DN80 | 4″ / DN100 | 6″ / DN150 | 8″ / DN200 | 10″ / DN250 | 12″ / DN300 |

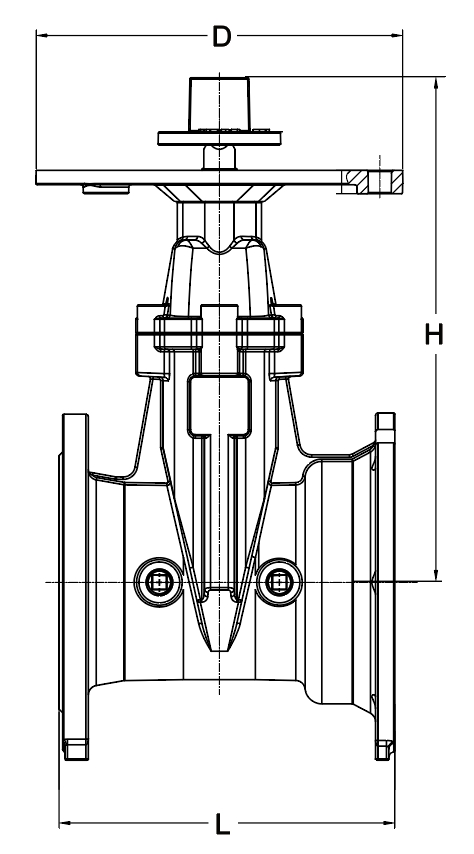

| L | 222 | 242 | 280 | 305 | 353 | 367 |
| H | 293 | 326 | 420 | 506 | 610 | 711 |
| D | 305 | 305 | 305 | 305 | 305 | 305 |
| Size | 3″ / DN80 | 4″ / DN100 | 6″ / DN150 | 8″ / DN200 | 10″ / DN250 | 12″ / DN300 |
| Net Weight (Kg) | 21.29 | 25.75 | 41.42 | 70.6 | 105.48 | 157.5 |
| Create Qty | 9 | 9 | 9 | 9 | 4 | 2 |
