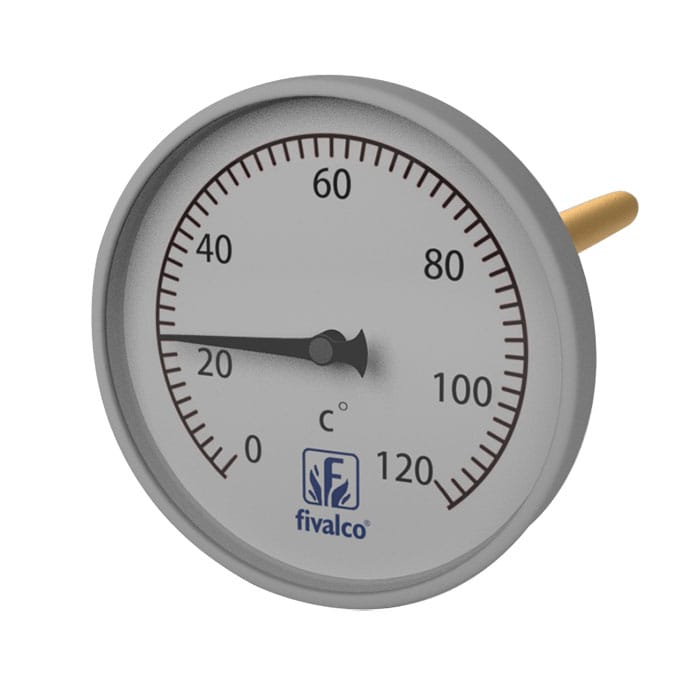

SPECIFICATIONS
Dial Size | 3″(80mm) / 4″(100mm) |
Stem Length (Including thread) | 2.5″(65mm) / 4″(100mm) / 6″(150mm) |
Case | Zinc Plated Steel |
Bezel | FT21 – Zinc Plated Steel / FT22 – SS304 |
Lens | Glass |
Bulb | Copper Alloy |
Stem | Brass |
Connection | FT21 – 1/2″ BSPT/NPT Bottom / FT22 – 1/2″ BSPT/NPT Center Back |
Accuracy | +/- 1.6% of Full Scale Value |
Protection | IP43 |
PRODUCT IDENTIFICATION CODE
FT21 | – | 100 | x | 065 | . | 0/120 | ||
Type/Model | Bottom Connection | FT21 | ||||||
Center Back Connection | FT22 | |||||||
Dial Size | 80mm (3″) | 080 | ||||||
100mm (4″) | 100 | |||||||
Stem Length | 65mm (2.5″) | 065 | ||||||
100mm (4″) | 100 | |||||||
150mm (6″) | 150 | |||||||
Temperature Range | 0°C…120°C | 0/120 | ||||||
-30°C…50°C | 030/50 | |||||||
-40°C…40°C | 040/40 |
