V23AS NRS RESILIENT SEAT GATE SLUICE VALVE (BS 5163 TYPE A)

V23AS NRS RESILIENT SEAT GATE SLUICE VALVE (BS 5163 TYPE A)

Fig No.: V23AS16 (PN16)

FEATURES & SPECIFICATIONS

Non-rising stem.
Inside screw.
Bolted bonnet.
Full bore port allows optimum and smooth flowing passage.
Fully encapsulated rubber disc.
Resilient seat for superior pipeline isolation.
Durable fusion bonded epoxy coated.
Handwheel or removable square key operated.
Designed to BS 5163 (Type A) / BS EN 1074-2 (Type A).
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, FireProtection, Cold Water Plumbing, Hot Water System, Sewerage & Water Treatment, General Industries.

Categories Iron Valves, Mechanical Service & HVAC

PRESSURE & TEMPERATURE RATINGS

Working Pressure	16bar
Shell Testing Pressure (x1.5)	24bar
Seat Testing Pressure (x1.1)	17.6bar
Working Temperature	-20°C … 110°C
Suitable Media	Water, Oil, Gas

Material Specification

Part	Material	Specification
Body	Ductile Iron	EN-JS 1050
Bonnet	Ductile Iron	EN-JS 1050
Disc	EPDM Coated DI	EN-JS 1050
Stem	Stainless Steel 410	EN 10088-3 1.4006
Stem Nut	Brass	EN 12165 CW614N
Hexagon Bolt	Carbon Steel
O-Ring	EPDM / NBR	Commercial

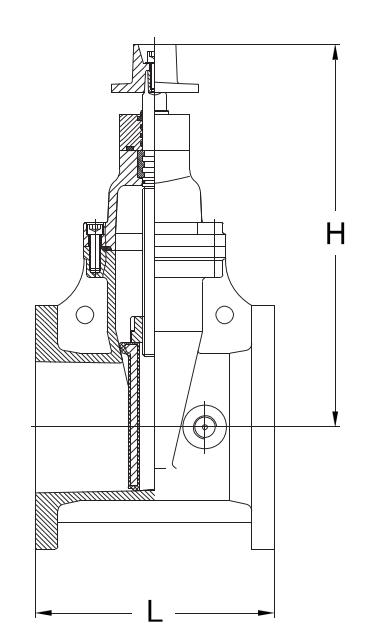

DIMENSIONS

DN	(mm) (inch)	50 2	65 2 1/2	80 3	100 4	125 5	150 6	200 8	250 10	300 12	350 14	400 16	450 18	500 20	600 24
	L	178	190	203	229	254	267	292	330	356	381	406	432	457	508
	H	319	342	376	431	502	567	670	794	925	1049	1105	1315	1458	1660
