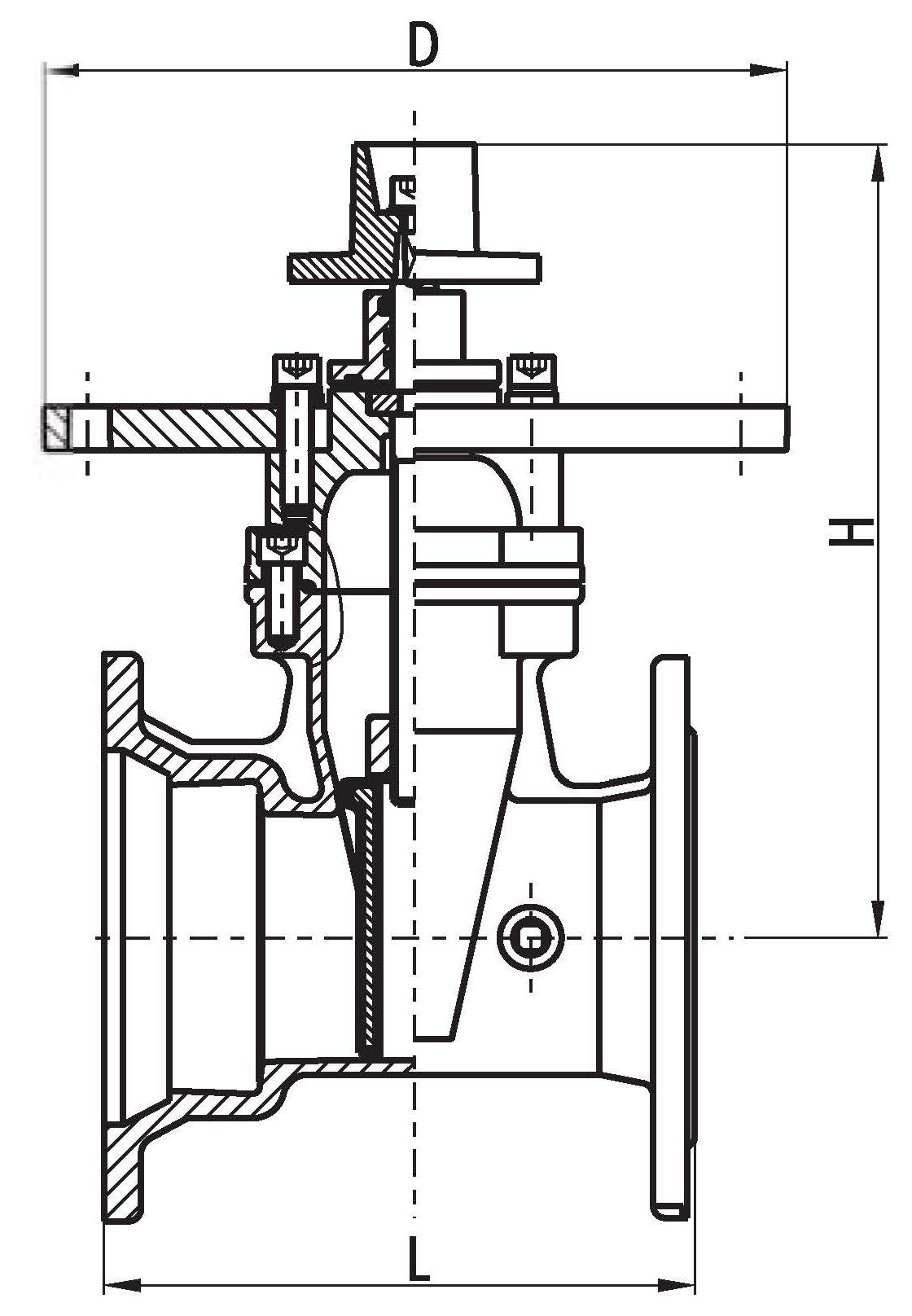

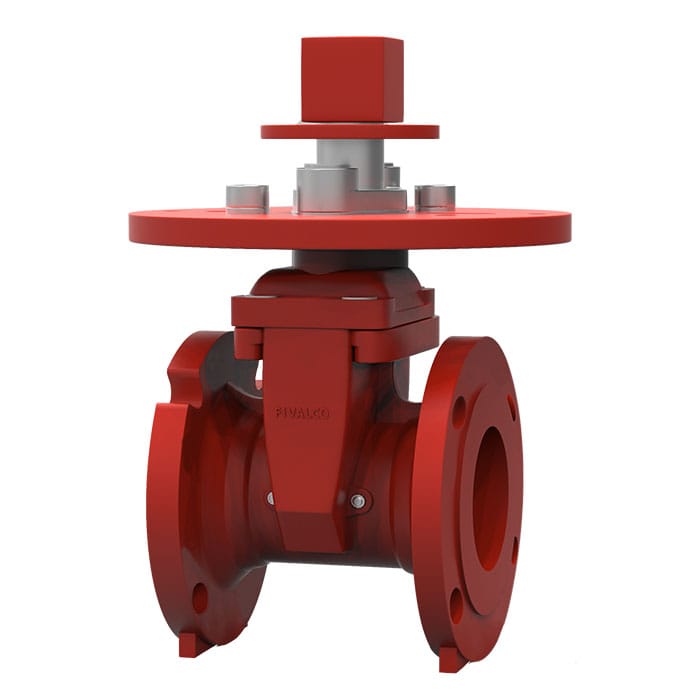

3288-LI-300-FM NRS Gate Valve Flanged-Mechanical Joint Ends

300PSI Fig No.: 3288-Ll-300-FM


  • Valve Standard:
    Conforms to AWWA C515/BS5163
  • Working Pressure:
    21BARS / 300PSI
    Temperature: from -10°C to 120°C
    Fusion bonded epoxy coated interior and exterior RAL3002
  • Flanged Ends
    ANSI B16.1 Class 125/ANSI B16.5 Class 150, EN1092-2 PN16
    BS10 TableD/TableE
  • Mechanical Joint to AWWA C153/A21.11
  • Stainless Steel Stem

NSF, FM Approved, UL & ULC Listed.
