Materials
| Name | Material |
|---|---|
| Body | Bronze |
| Bonnet | Bronze |
| Disc | Bronze |
| Stem | Bronze |
| Packing Ring | Asbestos Free |
| Packing Nut | Brass |
| Gland | Brass |
| Handwheel | Aluminium |

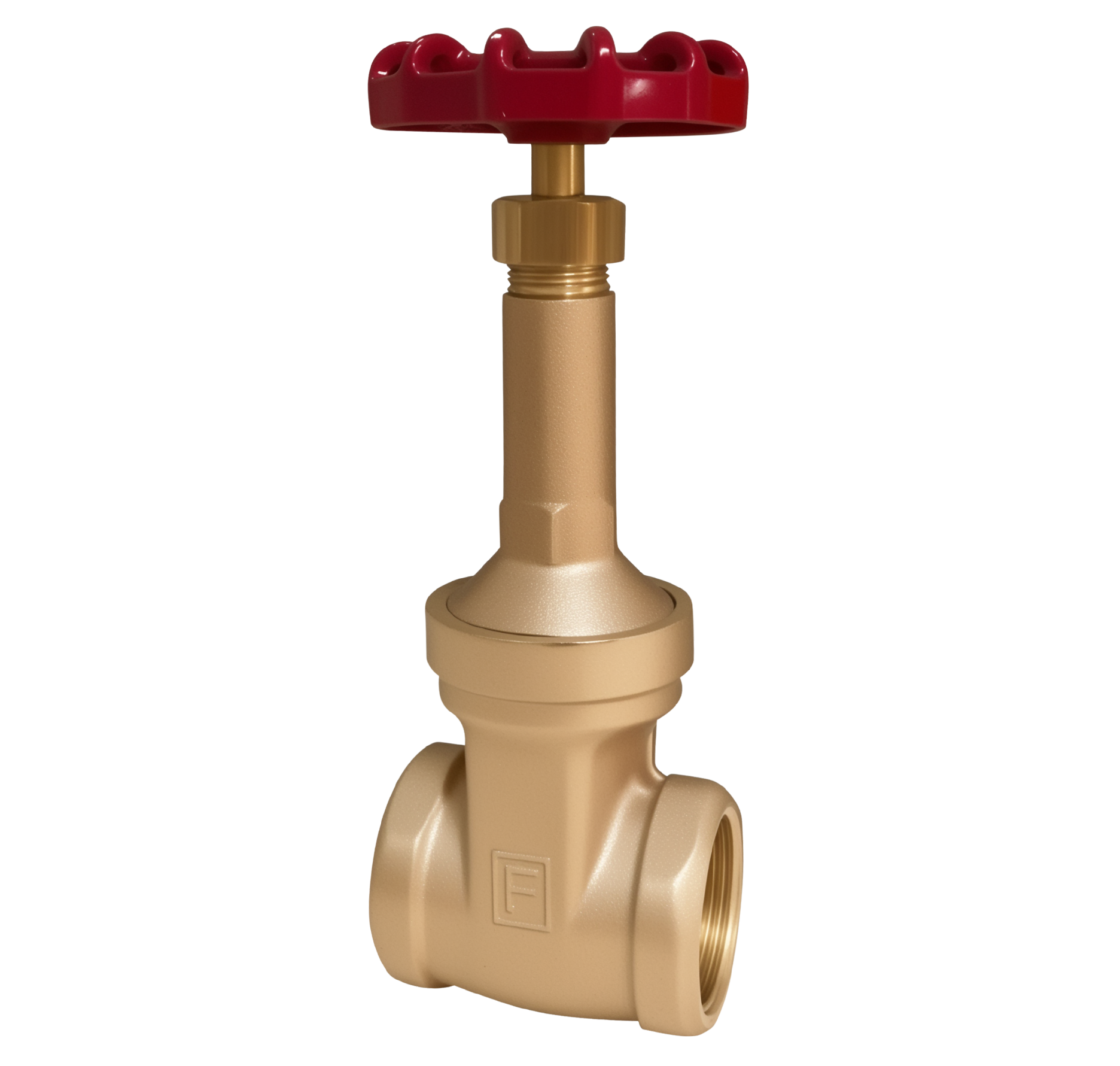

PN32 Fig No.: F2G32R
FEATURES & SPECIFICATIONS
Threaded bonnet.
Solid wedge disc.
Rising stem.
Integral seat.
Comply with BS 5154 / MSS SP-80.
Threaded to EN 10226-1 (ISO 7).
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.
Working pressure : 32bar WOG Non-Shock.
Shell test pressure (x1.5) : 48bar Hydrostatic.
Seat test pressure (x1.1) : 35bar Hydrostatic.
Working temperature : -10°C … 170°C.
Suitable Media : Water, Oil & Gas.
| Name | Material |
|---|---|
| Body | Bronze |
| Bonnet | Bronze |
| Disc | Bronze |
| Stem | Bronze |
| Packing Ring | Asbestos Free |
| Packing Nut | Brass |
| Gland | Brass |
| Handwheel | Aluminium |

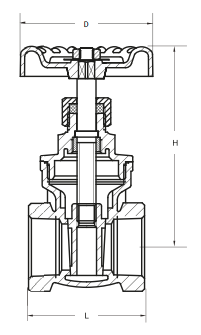

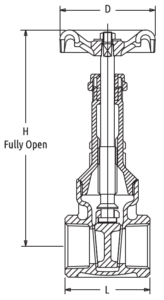

| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
| L | 51 | 55 | 63 | 71 | 73 | 83 | |
| H | 129 | 159 | 189 | 219 | 246 | 301 | |
| D | 53 | 71 | 71 | 78 | 90 | 108 |
