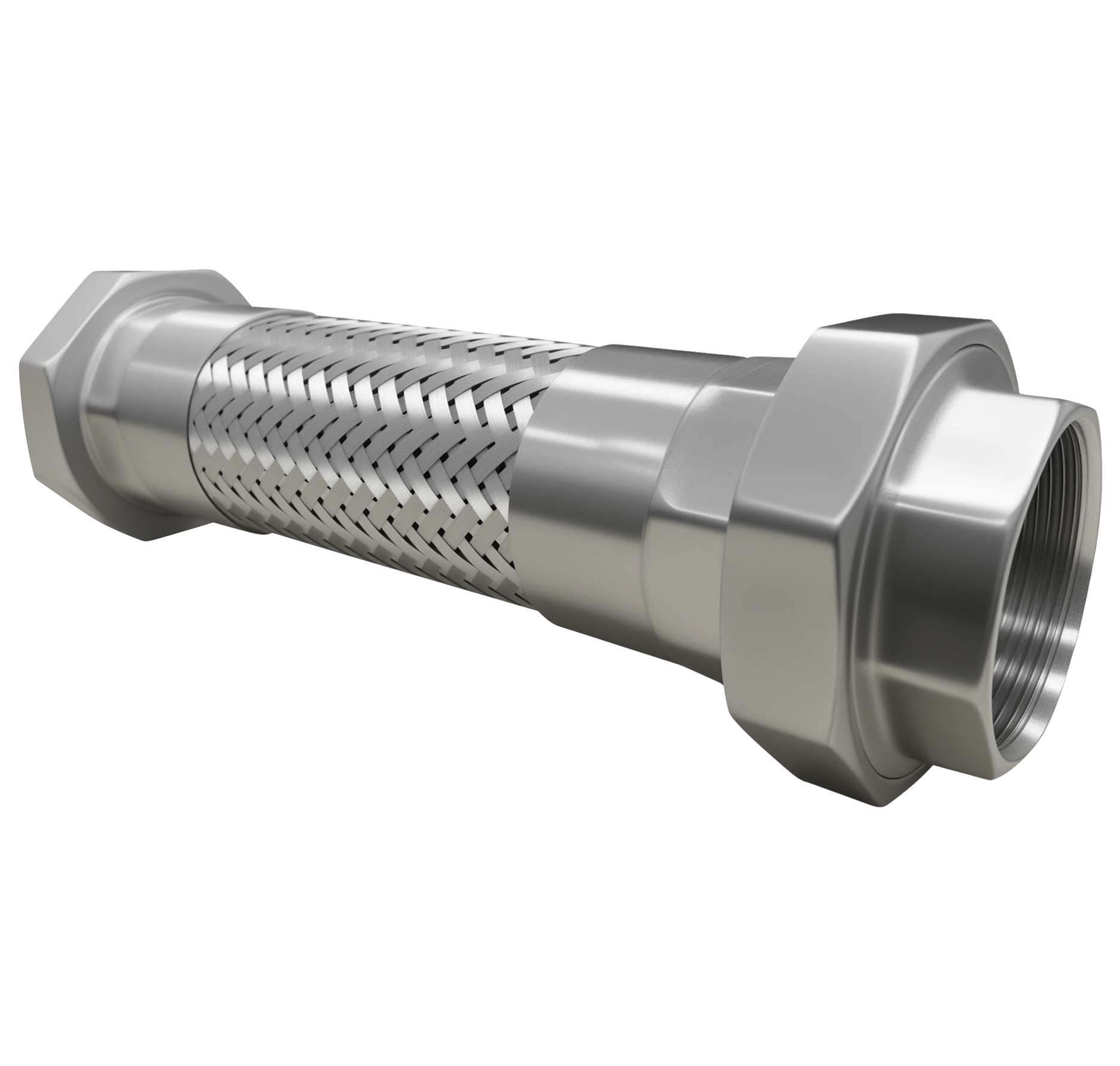

PN16/PN25     Fig No.: F85MH16/F85MH25

SPECIFICATIONS
Threaded to BS EN 10226-1 (ISO 7).
Stainless steel 304 internal tube and external braiding.

APPLICATIONS
Designed to compensate for piping misalignment and movement.
To accommodate vibration, reduce noise, relief stress and prevent system shock.
Suitable for applications such as pumps, compressors and other mechanical equipment.
Applicable to Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing & Sanitary, Hot Water System, General Industries.
Working pressure : 16bar/25bar.
Testing pressure (x1.5) : 24bar/37.5bar.
Working temperature : Maximum 220°C
Suitable media : Water, Air, Steam, Oil, Gas.
Note : Please contact your local distributor or representative to request a quotation for application involving other than water.
