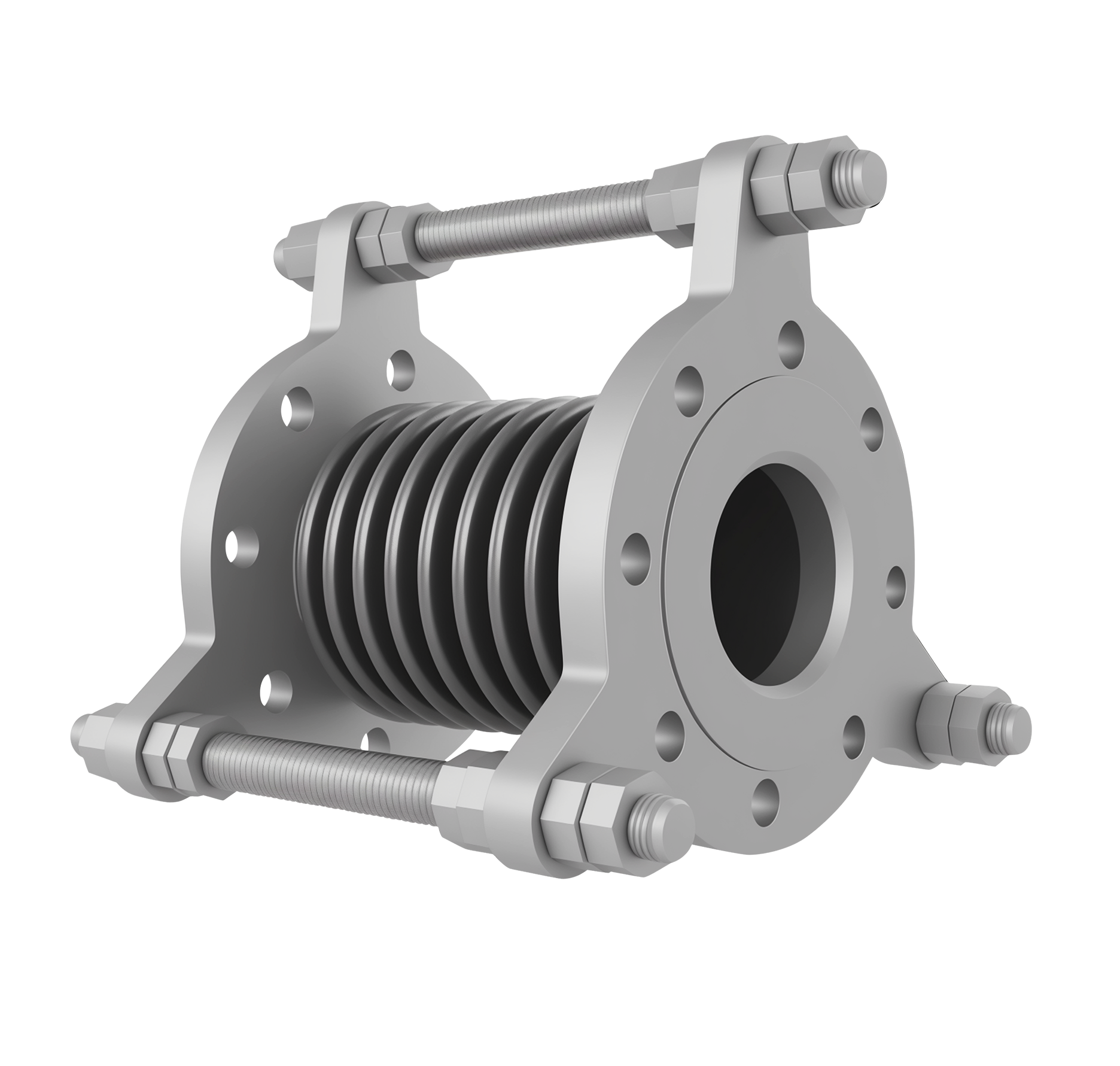

F83MJ EXPANSION JOINT

F83MJ EXPANSION JOINT

Fig No.: F83MJ16 (PN16) / F83MJ25 (PN25)

FEATURES & SPECIFICATIONS

Flange drilled to BS 4504 PN16 / BS EN 1092-2 PN16 / BS 4504 PN25 / BS EN 1092-2 PN25 / ANSI Class 150 (Specify on order).
Stainless Steel 304 sleeve and bellow.
Equipped with shipping rod.

APPLICATIONS

Designed to absorb piping thermal expansion or contraction.
To accommodate vibration, reduce noise, relief stress and prevent system shock.
Suitable for applications such as pumps, compressors and other mechanical equipment.
Applicable to Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing & Sanitary, Hot Water System, General Industries.

Categories Mechanical Service & HVAC, Piping Specialities

PRESSURE & TEMPERATURE RATINGS

Working Pressure	16bar / 25bar
Testing Pressure (x1.5)	24bar / 37.5bar
Working Temperature	Maximum 220°C
Suitable Media	Water, Air, Steam, Oil, Gas

Material Specification

Part	Material
Flange	Carbon Steel Stainless Steel 304
Bellows	Stainless Steel 304
Sleeve	Stainless Steel 304
Shipping Rod	Carbon Steel

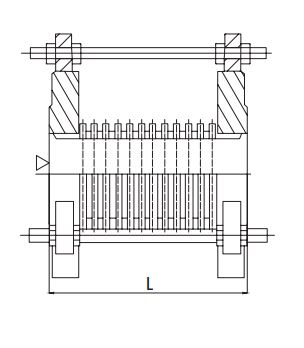

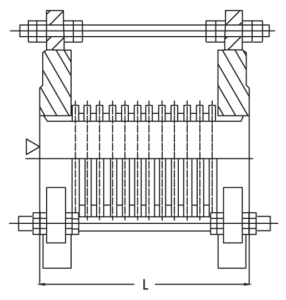

DIMENSIONS & MOVEMENTS

DN	(mm) (inch)	20 ³/₄	25 1	32 1¹/₄	40 1¹/₂	50 2	65 2¹/₂	80 3	100 4	125 5	150 6	200 8	250 10	300 12	350 14	400 16	450 18	500 20	600 24
	L	120	120	120	150	150	150	150	200	200	200	250	250	250	250	300	300	300	300
	Axial Movement	15	15	15	15	15	20	20	20	20	20	20	20	20	20	20	20	20	20
