Materials
| Name | Material |
|---|---|
| Body | Bronze |
| Cap | Bronze |
| Disc | Bronze |
| Hinge | Brass |
| Hinge Pin | Stainless Steel 420 |
| Hinge Nut | Brass |
| Gasket | Non-Asbestos |

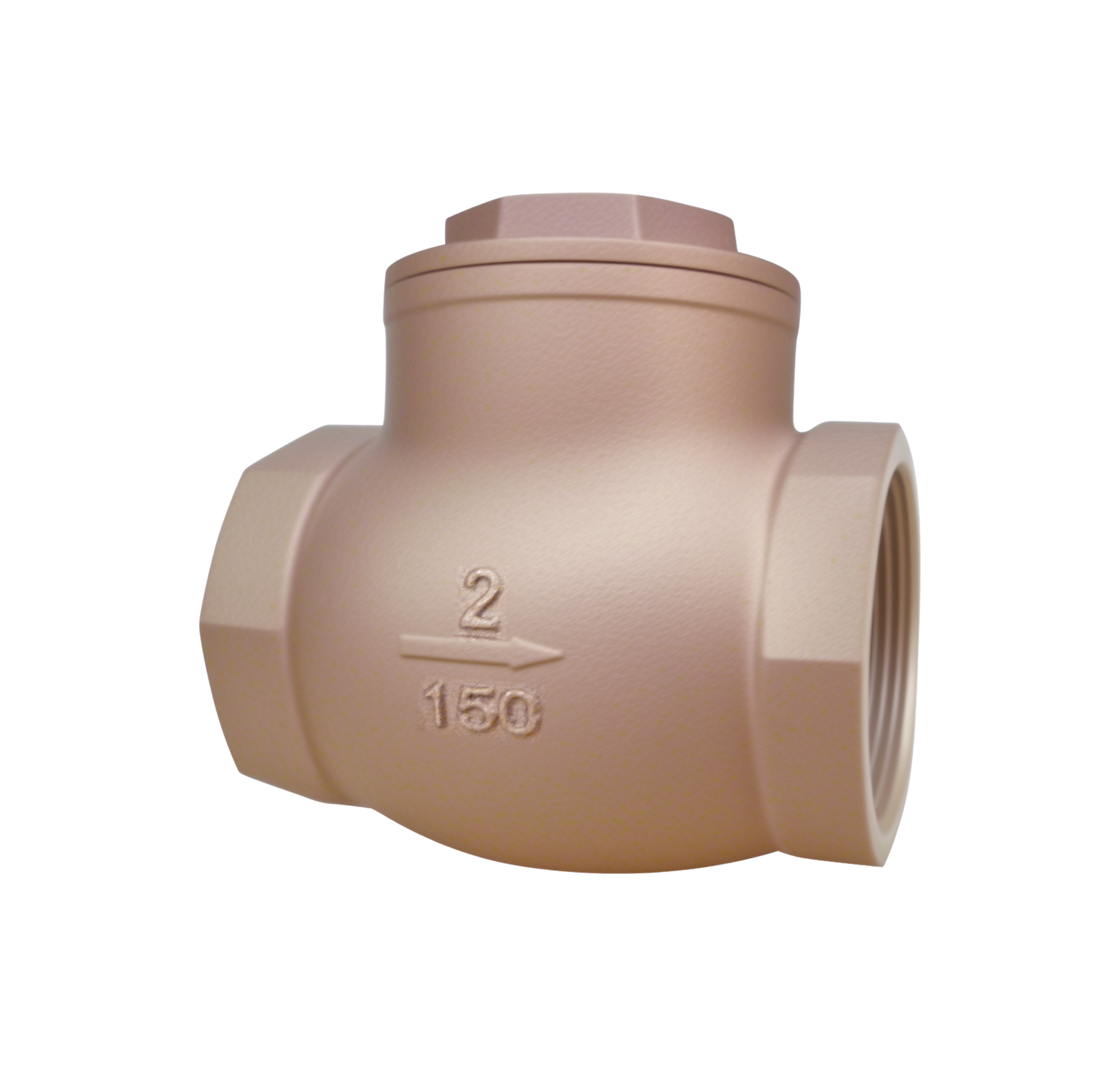

PN20 Fig No.: F5G20S
FEATURES & SPECIFICATIONS
Swing disc.
Integral seat.
Threaded cap.
Threaded to EN 10226-1 (ISO 7).
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.
Working pressure : 20bar WOG Non-Shock / 10bar Saturated Steam.
Shell test pressure (x1.5) : 30bar Hydrostatic.
Seat test pressure (x1.1) : 22bar Hydrostatic / 5.5bar Air.
Working temperature : -10°C … 170°C.
Suitable Media : Water, Oil & Gas.
WRAS approved
| Name | Material |
|---|---|
| Body | Bronze |
| Cap | Bronze |
| Disc | Bronze |
| Hinge | Brass |
| Hinge Pin | Stainless Steel 420 |
| Hinge Nut | Brass |
| Gasket | Non-Asbestos |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |

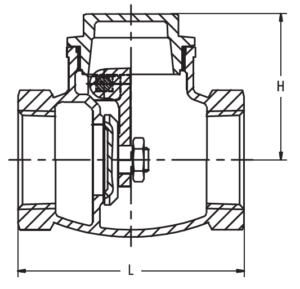

| L | 58 | 66 | 76 | 88 | 96 | 112 | 136 | 147 | 180 | |
| H | 37 | 43 | 49 | 57.5 | 63 | 72 | 85 | 93 | 110 |
Note : WRAS only available for DN15 … DN50.
