Materials
| Part | Material |
| Body | Ductile Iron |
| Cover | Ductile Iron |
| Bolt | Stainless Steel 304 |
| Spring Washer | Stainless Steel 304 |
| Screen | Stainless Steel 304 |
| Plug | Stainless Steel 304 |
| Gasket | EPDM |

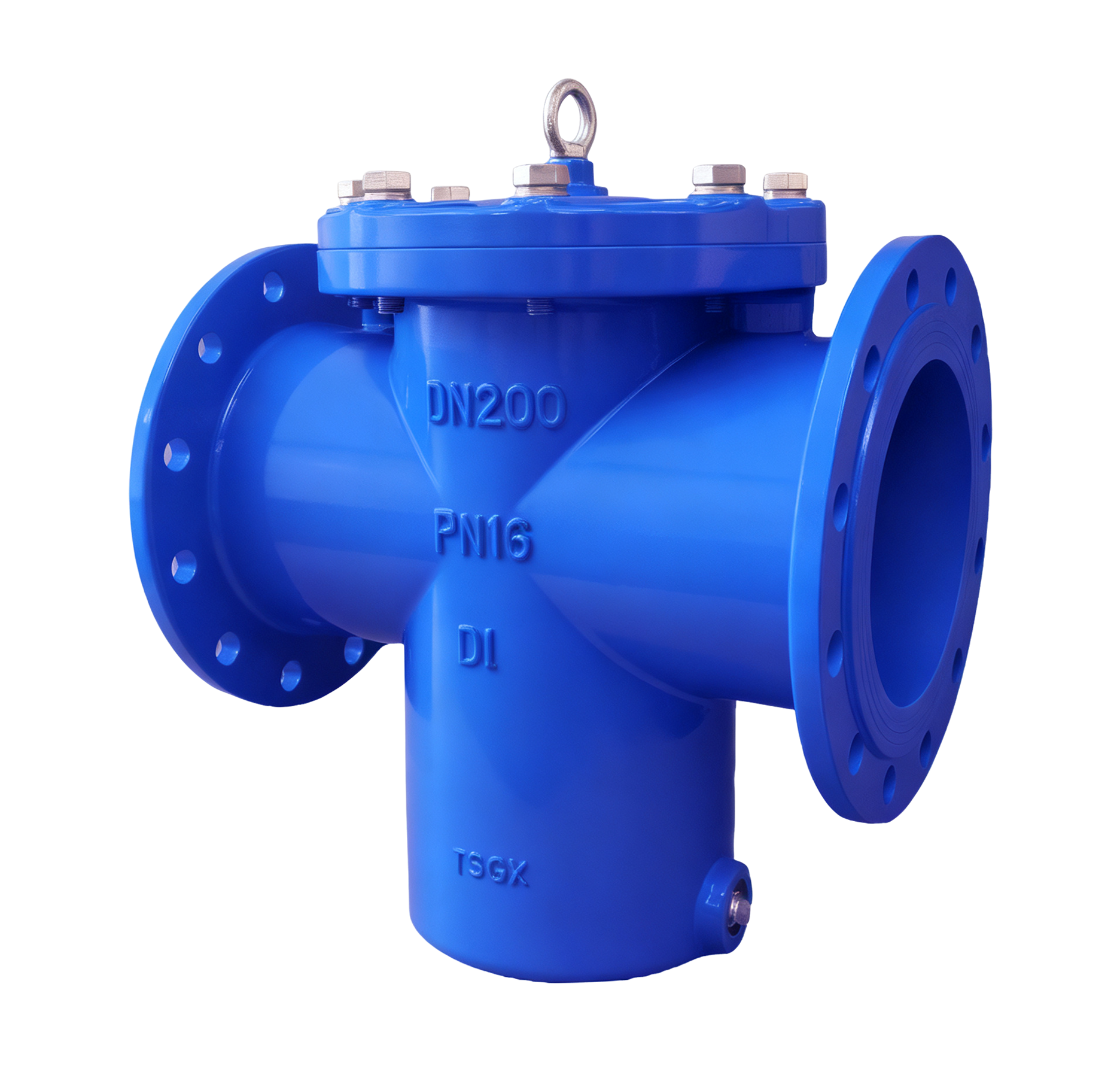

PN16 Fig No.: F73B16
FEATURES & SPECIFICATIONS
Filter the particles and debris that may be carried by process fluid in the pipeline.
Bolted cover.
Stainless steel perforated screen.
Durable fusion bonded epoxy coated.
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, Sewerage & Water Treatment, General Industries.
Working pressure : 16bar.
Test pressure (x1.5) : 24bar.
Working temperature : -10°C … 120°C
Suitable Media : Water.
| Part | Material |
| Body | Ductile Iron |
| Cover | Ductile Iron |
| Bolt | Stainless Steel 304 |
| Spring Washer | Stainless Steel 304 |
| Screen | Stainless Steel 304 |
| Plug | Stainless Steel 304 |
| Gasket | EPDM |
| Size | Hole Dia. (mm) | Mesh |
| DN50 … DN80 | 1.5 | 104 |
| DN100 … DN400 | 3.0 | 40 |
| DN400 | 3.0 | 12 |
| DN450 … DN600 | 5.0 | 12 |
| DN | (mm) (inch) |
50 2 |
65 21/2 |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
350 14 |
400 16 |
450 18 |
500 20 |
600 24 |

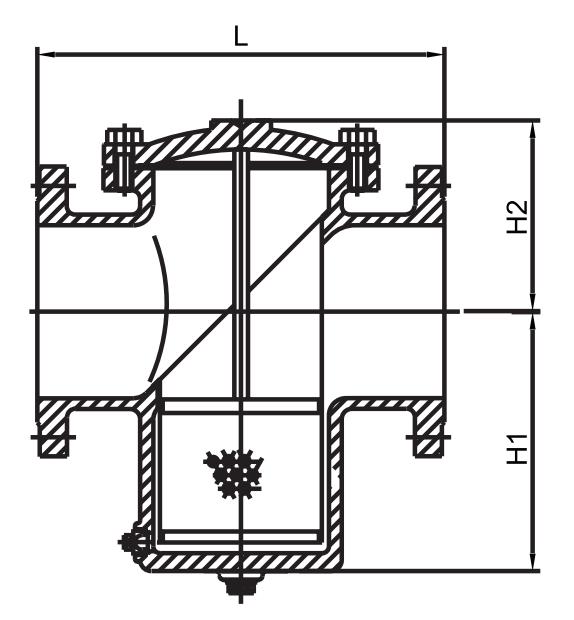

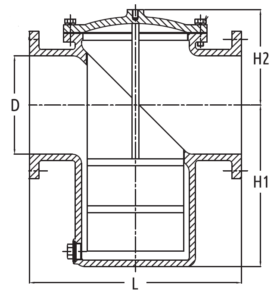

| L | 206 | 210 | 250 | 292 | 334 | 376 | 472 | 511 | 680 | 768.4 | 842 | 842 | 842 | 1054 | |
| H1 | 131 | 155 | 192 | 203 | 217 | 232 | 291.5 | 335 | 403 | 585 | 590 | 590 | 600 | 974 | |
| H2 | 87 | 93 | 103 | 126 | 146 | 165 | 221.5 | 268 | 340 | 345 | 390 | 420 | 510 | 515 | |
| D | 50 | 64 | 76 | 100 | 127 | 152 | 203 | 254 | 305 | 356 | 406 | 456 | 506 | 606 | |
| Hole Plug Dia. | ¾”NPT | ¾”NPT | ¾”NPT | ¾”NPT | ¾”NPT | ¾”NPT | ¾”NPT | ¾”NPT | ¾”NPT | G2″A | G2″A | G2″A | G2″A | G2″A |
Note:
1. Hole plug diameter available in BSPT (Specify on order).
2. G2″A is a 2-inch BSPP parallel thread, external type, tighter tolerance class (ISO 228-1).
