Materials
| Body | Ductile Iron |
| Bonnet | Ductile Iron |
| Plug | Stainless Steel 304 |
| Stem | Stainless Steel 304 |
| Seat | Stainless Steel 304 |
| Seat Retainer | Stainless Steel 304 |
| Spring | Stainless Steel 304 |
| Diaphragm | EPDM + Nylon Fabric |
| Seal Ring | EPDM |
| O-Ring | NBR |

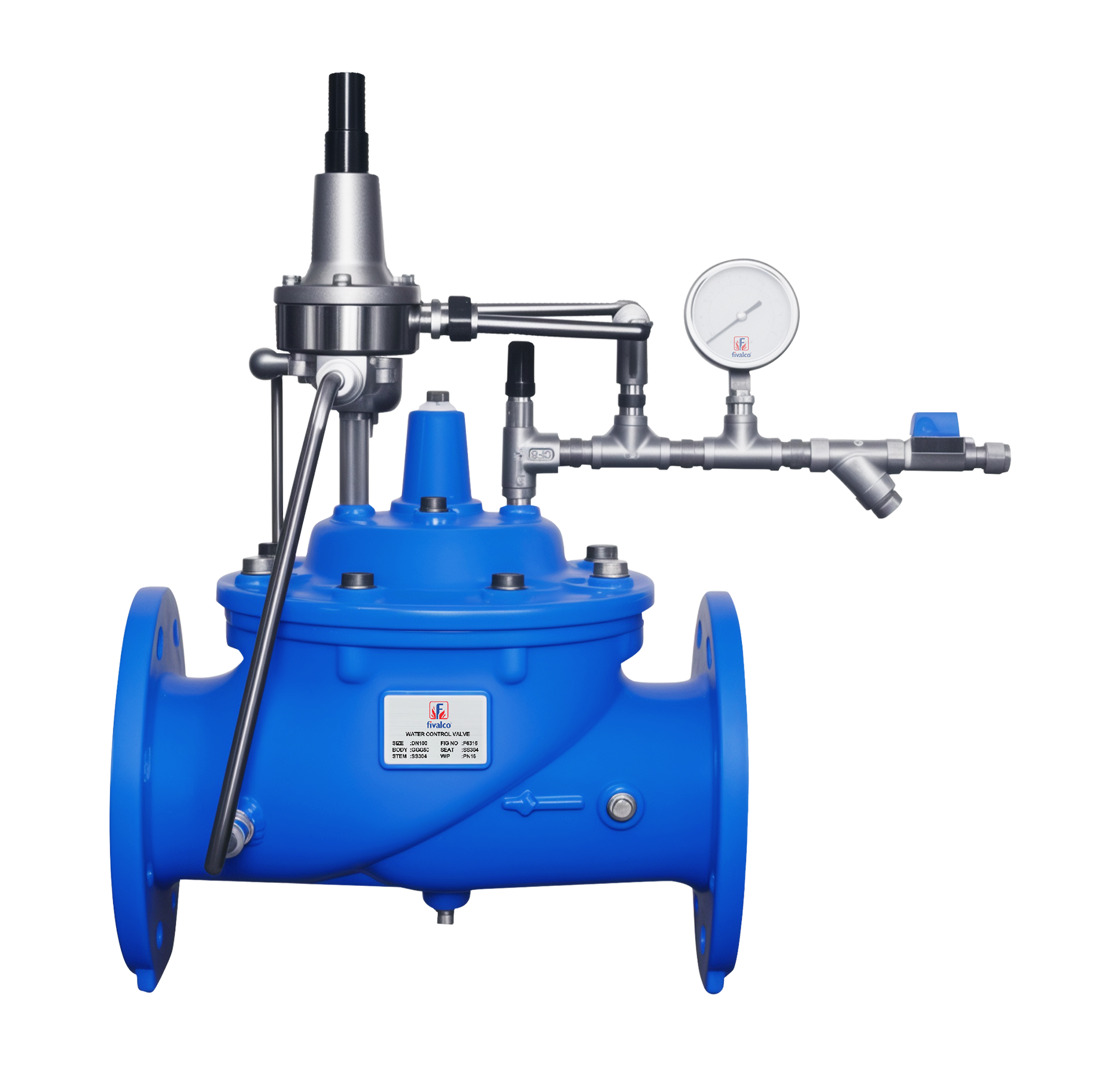

PN16/PN25 Fig No.: F6316-PSA/F6325-PSA
FEATURES & SPECIFICATIONS
Senses to open at low pressure before surge and quick relief high pressure wave.
Pre-open function eliminates the surge with pump abrupt stoppage.
The high pressure pilot opens the valve to releases excessive system pressure.
Full bore globe pattern design for superior control characteristic.
Nylon reinforced diaphragm for long-lasting performance.
Durable fusion bonded epoxy coated.
Design comply with EN 1074-5.
Flange drilled to EN 1092-2 PN16 / EN 1092-2 PN25 / ANSI Class 150 (Specify on order).
Working pressure : 16bar/25bar.
Shell test pressure (x1.5) : 24bar/37.5bar.
Seat test pressure (x1.1) : 17.6bar/27.5bar.
Working temperature : -20°C … 110°C (EPDM) / -10°C … 80°C (NBR).
Suitable Media : Water.
| Body | Ductile Iron |
| Bonnet | Ductile Iron |
| Plug | Stainless Steel 304 |
| Stem | Stainless Steel 304 |
| Seat | Stainless Steel 304 |
| Seat Retainer | Stainless Steel 304 |
| Spring | Stainless Steel 304 |
| Diaphragm | EPDM + Nylon Fabric |
| Seal Ring | EPDM |
| O-Ring | NBR |
| DN | (mm) (inch) |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
350 14 |
400 16 |
450 18 |
500 20 |
600 24 |
| L | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 | 1450 | |
| H | 165 | 195 | 225 | 230 | 240 | 240 | 430 | 545 | 605 | 550 | 710 | 720 | 825 | 885 | |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 | 580 | 640 | 715 | 840 | |
| A | 99 | 118 | 132 | 156 | 184 | 211 | 266 | 319 | 370 | 429 | 480 | 548 | 609 | 720 |

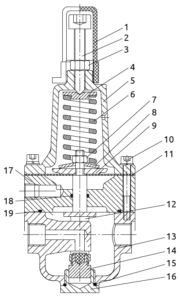

| No. | Description | Material |
| 1 | Cap | ABS Plastic |
| 2 | Adjusting Screw | Stainless Steel 304 |
| 3 | Jam Nut | Stainless Steel 304 |
| 4 | Spring Table | Stainless Steel 304 |
| 5 | Bonnet | Stainless Steel 304 |
| 6 | Spring | Spring Steel |
| 7 | Nut | Stainless Steel 304 |
| 8 | Spring Table | Spring Steel |
| 9 | Fixing Holder | Stainless Steel 304 |
| 10 | Screw | Stainless Steel 304 |
| 11 | Diaphragm | Nylon Reinforced + NBR |
| 12 | Yoke | Stainless Steel 304 |
| 13 | Body | Stainless Steel 304 |
| 14 | Disc | Stainless Steel 304 + EPDM |
| 15 | O-Ring | NBR |
| 16 | Plug | Stainless Steel 304 |
| 17 | Internal Body | Stainless Steel 304 |
| 18 | O-Ring | NBR |
| 19 | O-Ring | NBR |

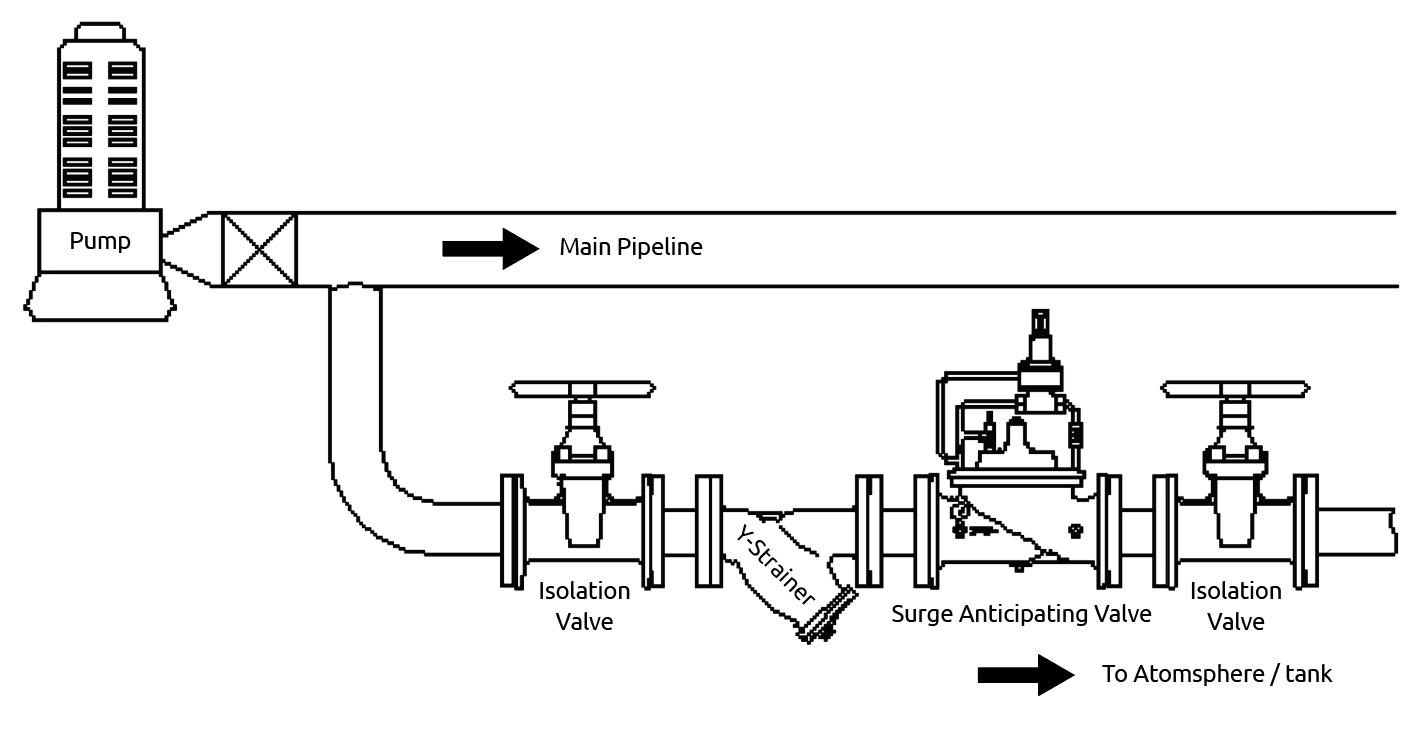

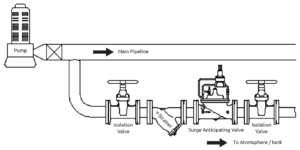

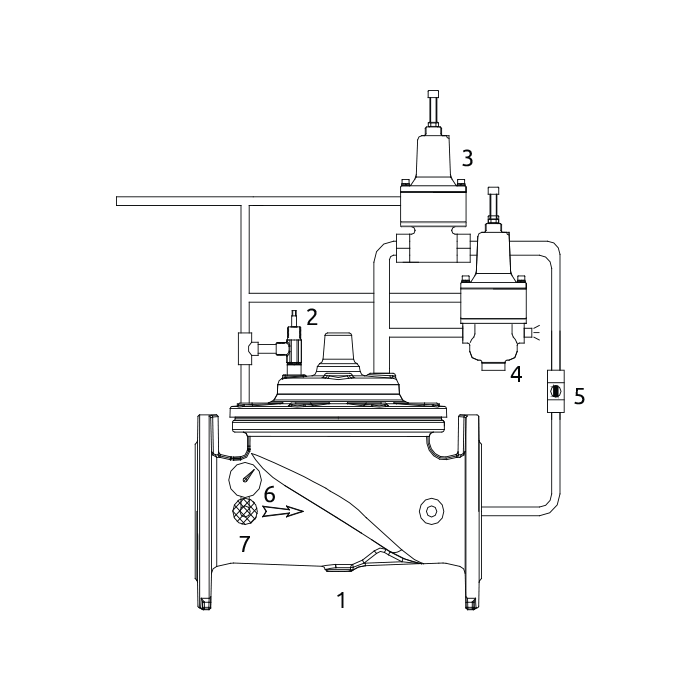

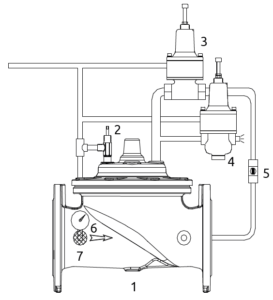

| No. | Part |
| 1 | Main Valve |
| 2 | Needle Valve |
| 3 | Pilot Valve (P500) |
| 4 | Pilot Valve (P20A) |
| 5 | Ball Valve |
| 6 | Inlet Pressure Gauge |
| 7 | Strainer |
