Materials
| Body | Ductile Iron |
| Bonnet | Ductile Iron |
| Plug | Stainless Steel 304 |
| Stem | Stainless Steel 304 |
| Seat | Stainless Steel 304 |
| Seat Retainer | Stainless Steel 304 |
| Spring | Stainless Steel 304 |
| Diaphragm | EPDM + Nylon Fabric |
| Seal Ring | EPDM |
| O-Ring | NBR |

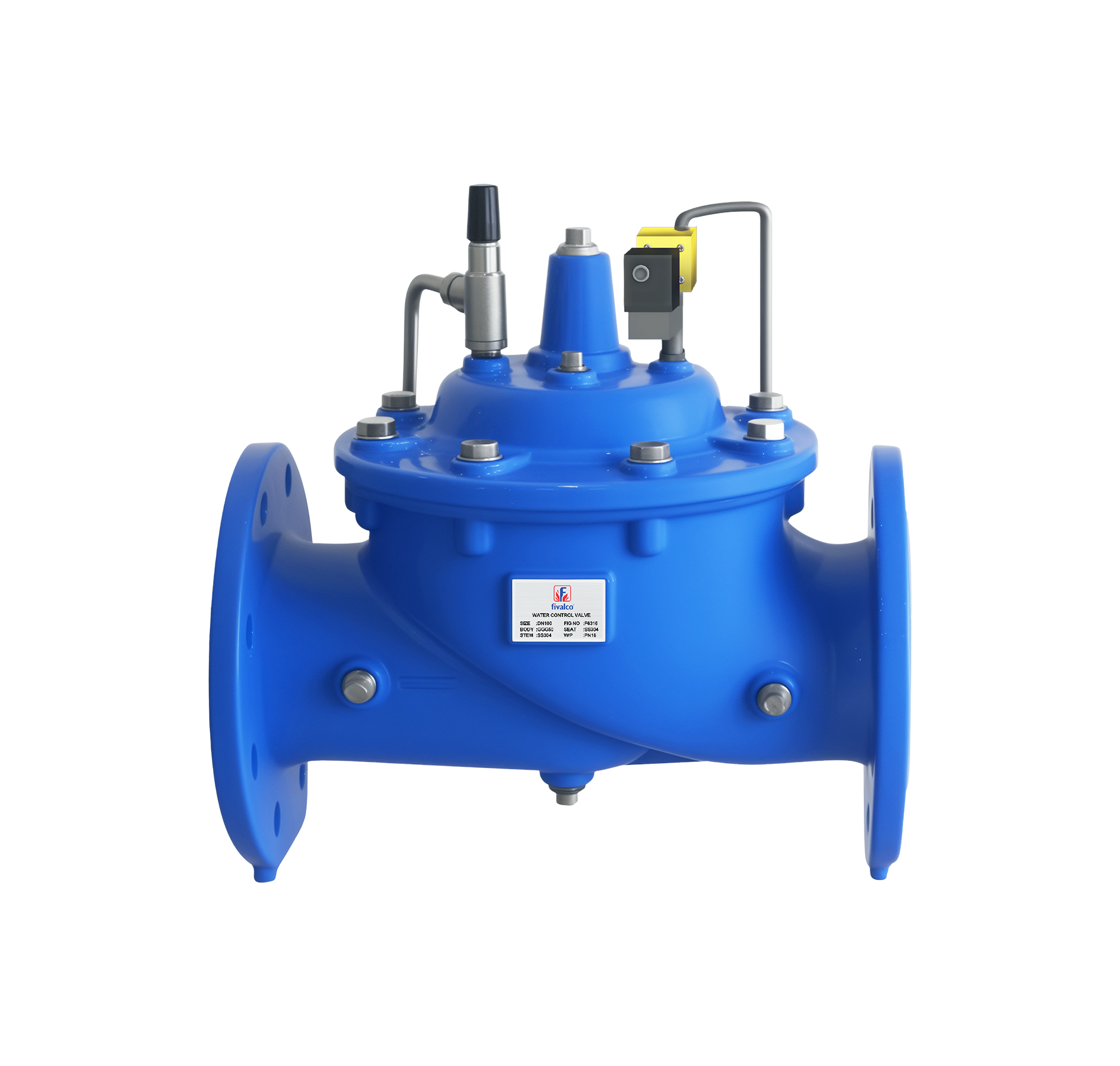

PN16/PN25 Fig No.: F6316-FSC/F6325-FSC
FEATURES & SPECIFICATIONS
Energized to open or close the valve.
Full bore globe pattern design for superior control characteristic.
Nylon reinforced diaphragm for long-lasting performance.
Durable fusion bonded epoxy coated.
Design comply with EN 1074-5.
Flange drilled to EN 1092-2 PN16 / EN 1092-2 PN25 / ANSI Class 150 (Specify on order).
Working pressure : 16bar/25bar.
Shell test pressure (x1.5) : 24bar/37.5bar.
Seat test pressure (x1.1) : 17.6bar/27.5bar.
Working temperature : -20°C … 110°C (EPDM) / -10°C … 80°C (NBR).
Suitable Media : Water.
Setting Range : 1 … 12bar.
| Body | Ductile Iron |
| Bonnet | Ductile Iron |
| Plug | Stainless Steel 304 |
| Stem | Stainless Steel 304 |
| Seat | Stainless Steel 304 |
| Seat Retainer | Stainless Steel 304 |
| Spring | Stainless Steel 304 |
| Diaphragm | EPDM + Nylon Fabric |
| Seal Ring | EPDM |
| O-Ring | NBR |
| DN | (mm) (inch) |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
350 14 |
400 16 |
450 18 |
500 20 |
600 24 |
| L | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 | 1450 | |
| H | 165 | 195 | 225 | 230 | 240 | 240 | 430 | 545 | 605 | 550 | 710 | 720 | 825 | 885 | |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 | 580 | 640 | 715 | 840 | |
| A | 99 | 118 | 132 | 156 | 184 | 211 | 266 | 319 | 370 | 429 | 480 | 548 | 609 | 720 |
| Medium Temperature | -5°C … 80°C (NBR Sealing) |
| Working Pressure | 0 … 8bar |
| Working Voltage | AC220V … AC240V, AC110V 50/60Hz 22VA, DC24/12V 13W |
| Protection | IP65 |
| Motor | H Degree |
| Working Type | Semi direct acting |
| Body Material | Brass / Stainless Steel 316 |
| Seal Material | NBR (Options EPDM, Viton) |
| Interface Thread | G type / NPT |

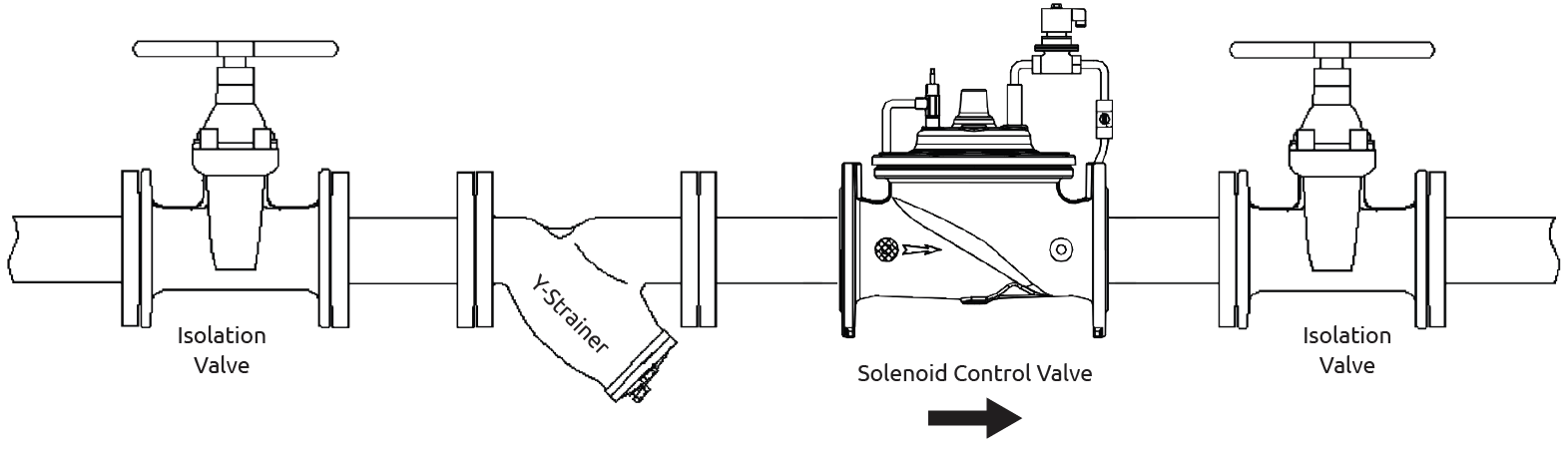

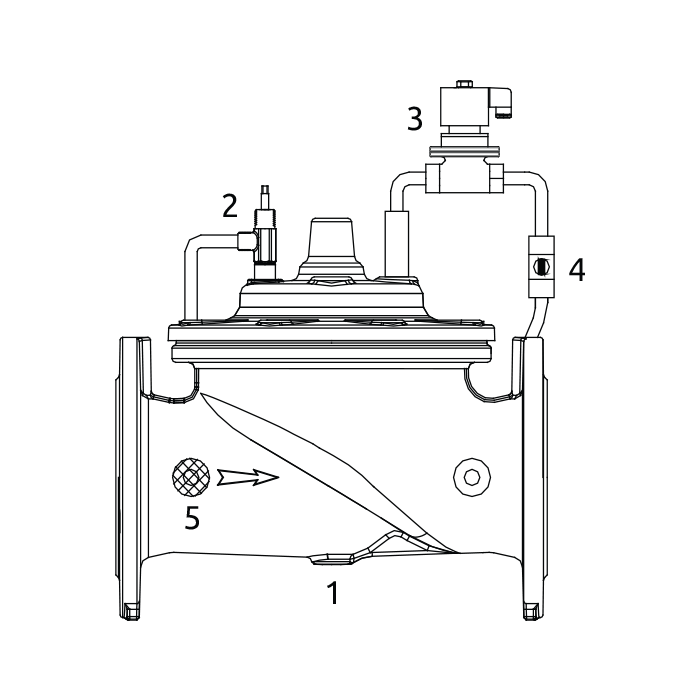

NORMALLY-CLOSED & NORMALLY-OPENED DIAGRAM
Note : Please indicate Normally-Closed or Normally-Opened while placing the order.

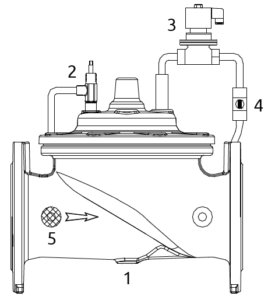

| No. | Part |
| 1 | Main Valve |
| 2 | Needle Valve |
| 3 | Solenoid Valve |
| 4 | Ball Valve |
| 5 | Strainer |
