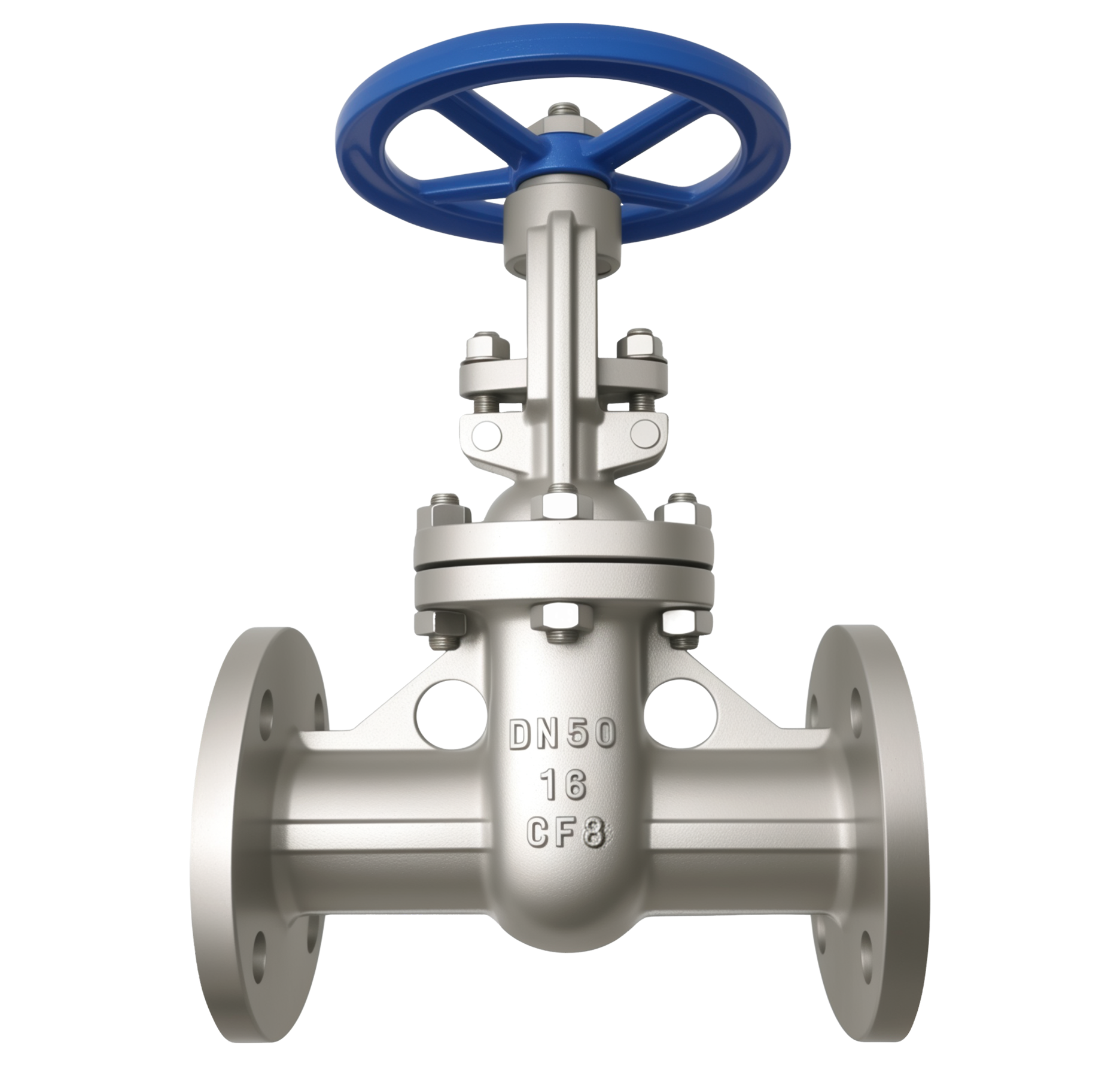

PN16 Fig No.: F23MR16-50 (SS304) / F23MR16-51 (SS316)
FEATURES & SPECIFICATIONS
Rising stem, Outside Screw & Yoke (OS&Y).
Bolted bonnet.
Metal seat design.
Design conforms to ANSI B16.34a.
Face to face dimension to GB/T 12221-2005.
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.
Working pressure : 16bar.
Shell test pressure (x1.5) : 24bar.
Seat test pressure (x1.1) : 17.6bar.
Working temperature : -30°C … 165°C.
Suitable Media : Water, Oil & Gas.

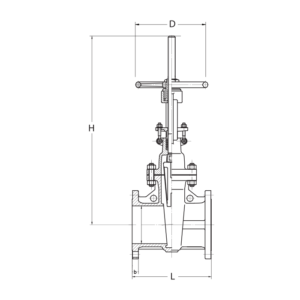

| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Disc | Stainless Steel 304 Stainless Steel 316 |
| Stem | Stainless Steel 316 |
| Hexagon Nut | Stainless Steel 304 |
| Stud | Stainless Steel 304 |
| Gasket | Stainless Steel |
| Bonnet | Stainless Steel 304 Stainless Steel 316 |
| Packing | PTFE |
| Gland | Stainless Steel 304 |
| Stem Nut | Aluminium Bronze |
| Handle | Ductile Iron |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |

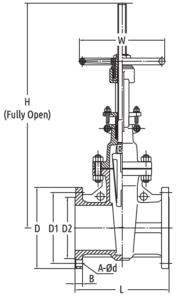

| L | 130 | 150 | 160 | 180 | 200 | 250 | 265 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | |
| H | 195 | 205 | 240 | 240 | 370 | 390 | 450 | 490 | 560 | 656 | 845 | 1041 | 1120 | 1310 | |
| D | 95 | 105 | 115 | 135 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | |
| D2 | 46 | 56 | 65 | 76 | 84 | 99 | 118 | 132 | 156 | 184 | 210 | 266 | 318 | 370 | |
| W | 140 | 140 | 140 | 180 | 200 | 200 | 220 | 240 | 260 | 300 | 350 | 350 | 400 | 450 | |
| A-Ød | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-18 | 8-22 | 12-22 | 12-26 | 12-28 | |
| B | 16 | 16 | 18 | 18 | 18 | 18 | 18 | 20 | 20 | 22 | 22 | 24 | 26 | 28 |
