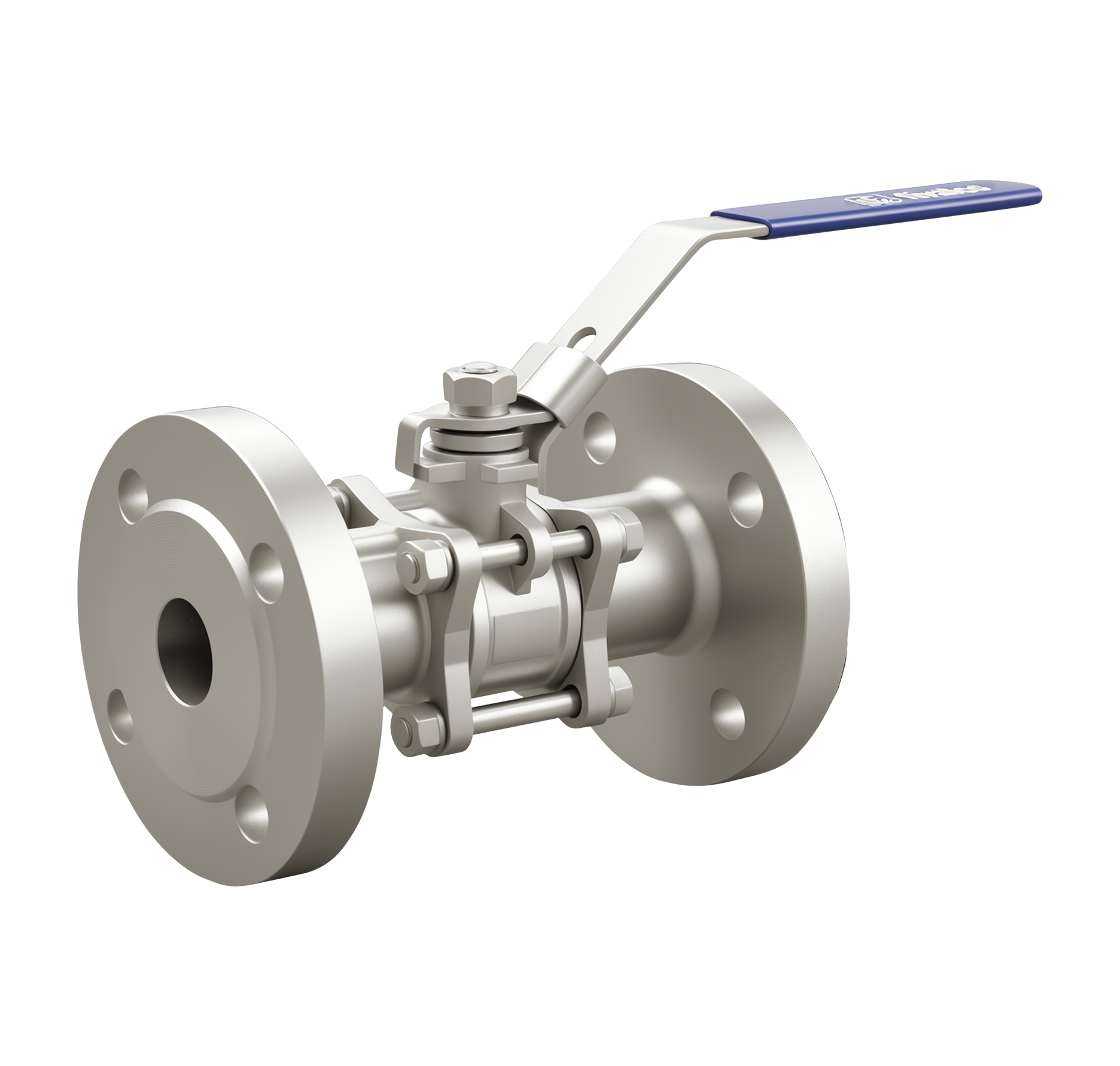

PN16 Fig No.: F43T16-50 (SS304) / F43T16-51 (SS316)
FEATURES & SPECIFICATIONS
3-piece body full port design.
Design conforms to GB/T 12237.
Face to face dimensions to GB/T 12221.
Flange drilled to EN 1092-2 PN16.
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 16bar.
Shell test pressure (x1.5) : 24bar.
Seat test pressure (x1.1) : 17.6bar.
Working temperature : -25°C … 150°C.
Suitable Media : Water, Oil & Gas.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Stem | Stainless Steel 304 Stainless Steel 316 |
| Bonnet | Stainless Steel 304 Stainless Steel 316 |
| Seal Ring | PTFE |
| Bolt | Stainless Steel 304 |
| Nut | Stainless Steel 304 |
| Spring Washer | Stainless Steel 304 |
| Stem Washer | PTFE |
| Packing | PTFE |
| Gland | Stainless Steel 304 |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |

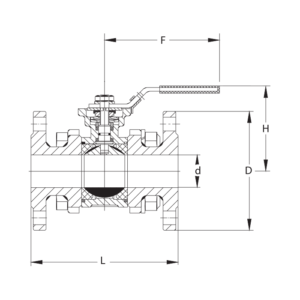

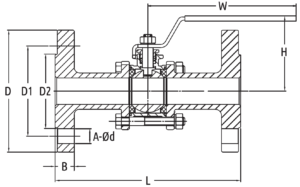

| L | 123 | 147 | 155 | 167 | 191 | 225 | 290 | 300 | 340 | 360 | 400 | |
| H | 83 | 90 | 93 | 98 | 117 | 128 | 147 | 157 | 185 | 180 | 240 | |
| D | 94 | 103 | 115 | 133 | 142 | 160 | 180 | 192 | 214 | 250 | 285 | |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | |
| D2 | 45 | 58 | 68 | 78 | 85 | 100 | 120 | 135 | 150 | 188 | 212 | |
| W | 135 | 155 | 155 | 165 | 190 | 200 | 235 | 235 | 295 | 400 | 580 | |
| A-Ød | 4×14 | 4×14 | 4×14 | 4×18 | 4×18 | 4×18 | 4×18 | 8×18 | 8×18 | 8×18 | 8×22 | |
| B | 14 | 14 | 13 | 15 | 15 | 16 | 17 | 18 | 18 | 22 | 22 |
