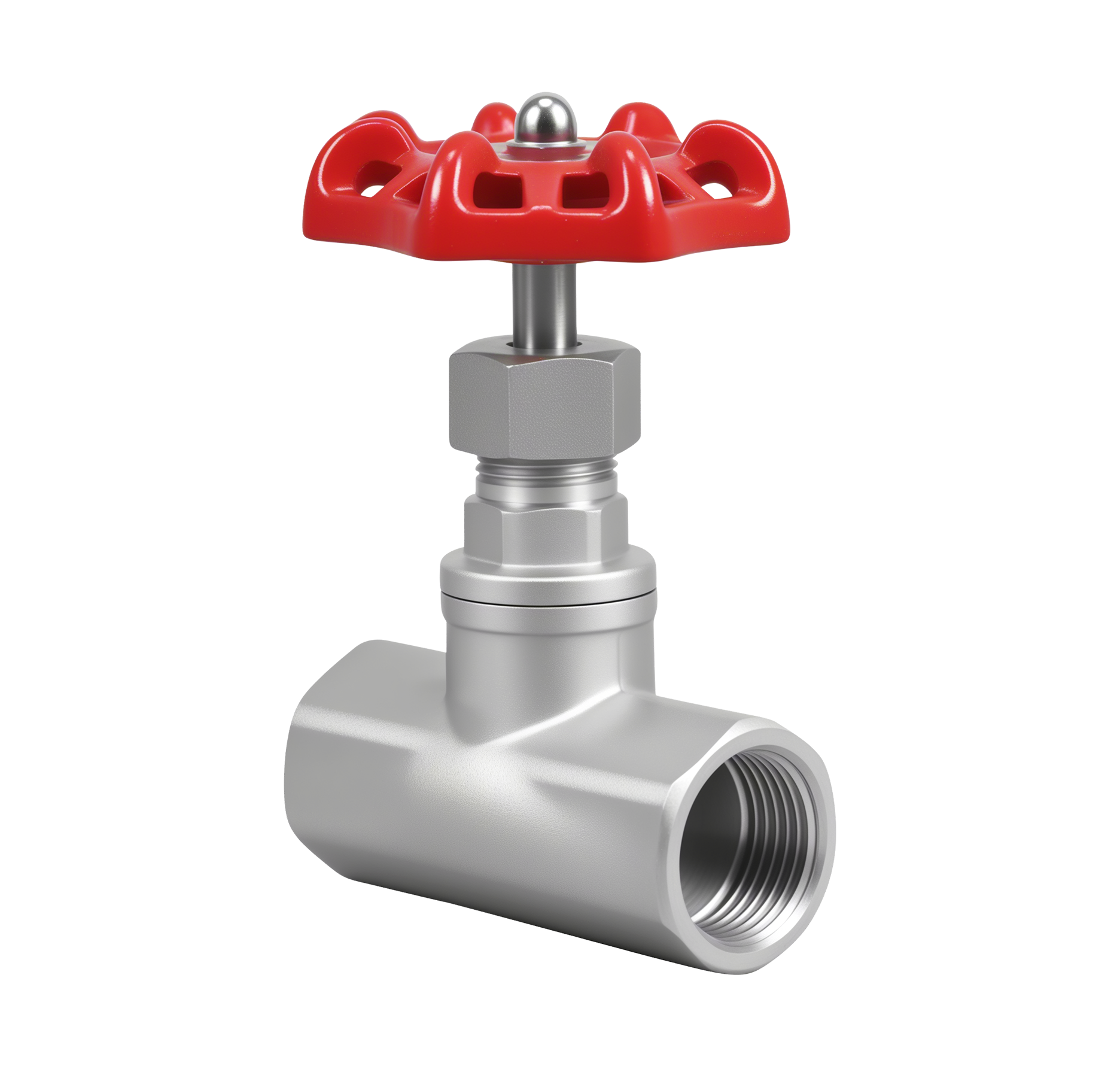

200PSI Fig No.: F3S200R-50 (SS304) / F3S200R-51 (SS316)
FEATURES & SPECIFICATIONS
Threaded bonnet.
Swivel disc.
Rising stem.
Full bore design.
Oil-free processing treatment option available.
Threaded to BS21 / ANSI B2.1 / DIN 259 / DIN 2999.
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 200psi WOG Non-Shock.
Shell test pressure : x1.5 times.
Seat test pressure : x1.1 times.
Working temperature : -25°C … 180°C.
Suitable Media : Water, Oil & Gas.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Disc | Stainless Steel 304 Stainless Steel 316 |
| Stem | Stainless Steel 304 Stainless Steel 316 |
| Cap | Stainless Steel 304 Stainless Steel 316 |
| Seal | PTFE |
| Gasket | Stainless Steel 304 |
| Packing | PTFE |
| Gland | Stainless Steel 304 |
| Nut | Stainless Steel 304 |
| Spring Washer | Stainless Steel 304 |
| Handwheel | Cast Iron |

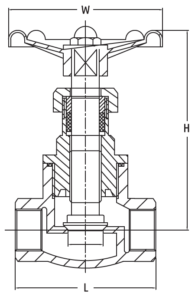

| DN | (mm) (inch) |
8 ¼ |
10 ⅜ |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
| L | 55 | 55 | 67 | 75 | 85 | 101 | 115 | 136 | |
| H | 79 | 79 | 79 | 91 | 106 | 125 | 136 | 146 | |
| W | 65 | 65 | 65 | 77 | 77 | 97 | 97 | 97 |
