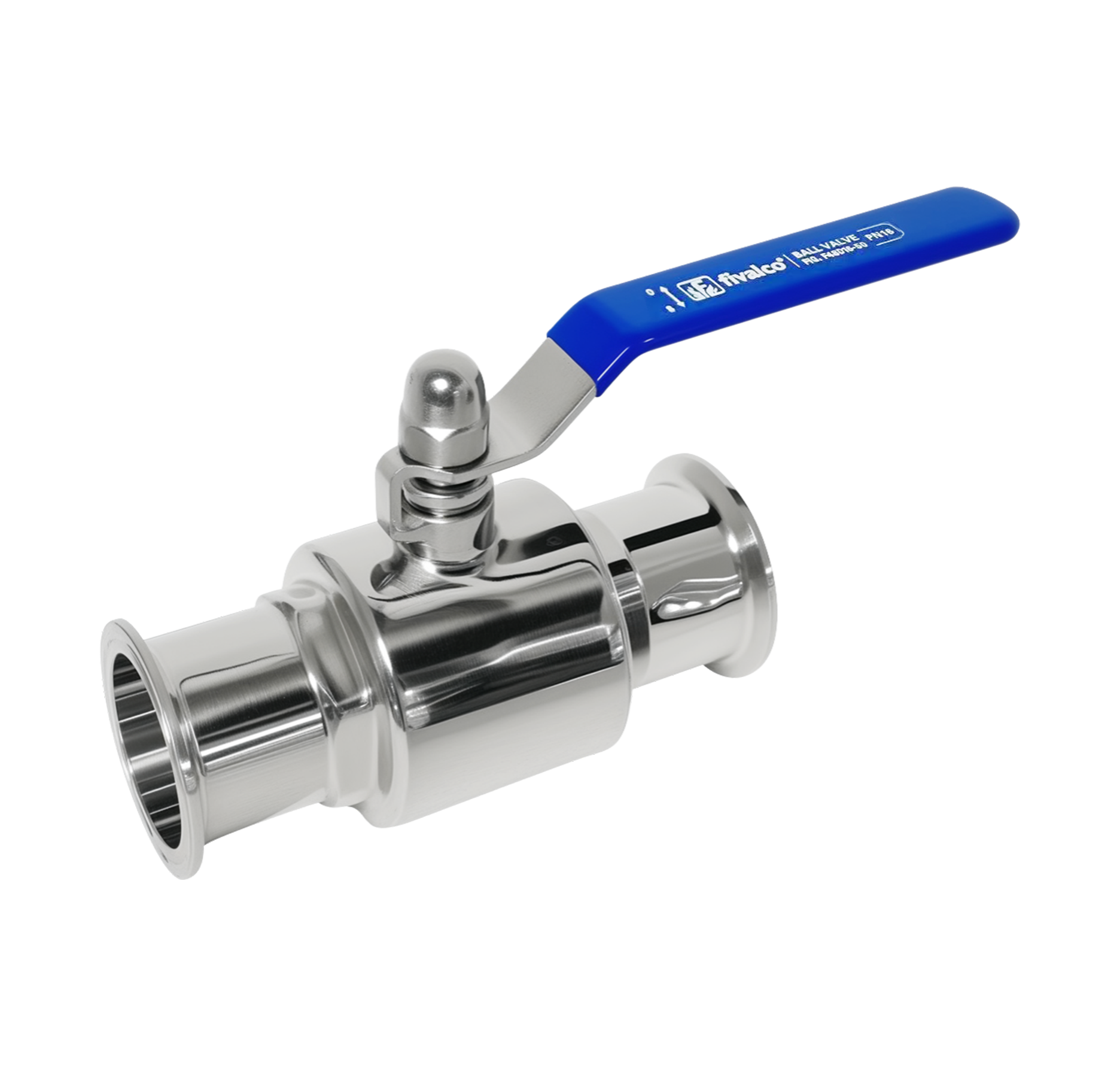

PN16 Fig No.: F48D16-50 (SS304) / F48D16-51 (SS316)
FEATURES & SPECIFICATIONS
Hygienic clamp end connection.
Stainless steel material with excellent corrosion resistance.
Small and lightweight, easy to disassemble and repair.
Easy and flexible installation, can be installed in any position.
Quick opening and closing with 90° rotation.
Design conforms to GB/T 12237.
Connection end standard DIN 32676.
Testing standard API 598.
Applicable for Building Services, Air-Conditioning, Cold Water Plumbing, Liquid Cooling System, General Industries, etc.
Working pressure : 16bar.
Shell test pressure (x1.5) : 24bar.
Seat test pressure (x1.1) : 17.6bar.
Working temperature : -20°C … 120°C.
Suitable Media : Water.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Stem | Stainless Steel 304 Stainless Steel 316 |
| Ball | Stainless Steel 304 Stainless Steel 316 |
| Seat | PTFE |
| Bonnet | Stainless Steel 304 Stainless Steel 316 |
| Bolt & Nut | Stainless Steel 304 |
| Washer | PTFE |
| Packing | PTFE |
| Handle | Stainless Steel 201 |
| DN | (mm) (inch) |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
45 1¾ |
50 2 |
57 2¼ |
65 2½ |
80 3 |
89 3½ |
100 4 |

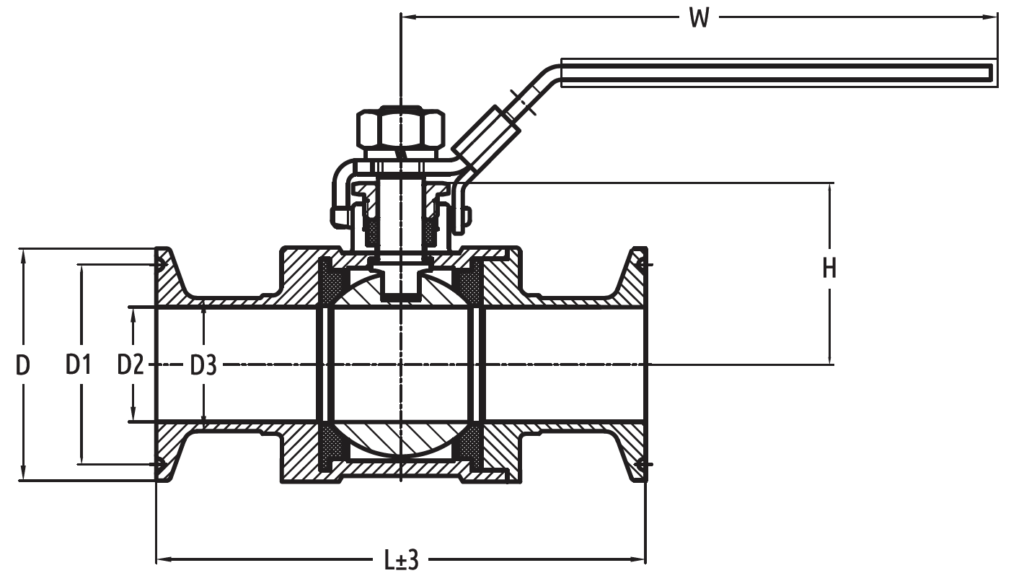

| L | 100 | 117 | 124 | 139 | 148 | 164 | 169 | 176 | 200 | 240 | 270 | |
| H | 40 | 42 | 42 | 45 | 55 | 56 | 60 | 69 | 75 | 87 | 110 | |
| W | 110 | 130 | 130 | 150 | 150 | 170 | 170 | 180 | 230 | 255 | 305 | |
| D | 50.5 | 50.5 | 50.5 | 50.5 | 64 | 64 | 77.5 | 77.5 | 91 | 106 | 119 | |
| D1 | – | 43.5 | 43.5 | 43.5 | 56.5 | 56.5 | 70.5 | 70.5 | 83.5 | 97 | 110 | |
| D2 | 16 | 22 | 29 | 35 | 42 | 48 | 53 | 59 | 73 | 85 | 98 | |
| D3 | 19 | 25 | 32 | 38 | 45 | 51 | 57 | 63 | 76 | 89 | 102 |
