Materials
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Disc | Stainless Steel 304 Stainless Steel 316 |
| Sealing Ring | EPDM / PTFE |
| Bolt & Nut | Stainless Steel 304 |
| Handle | Stainless Steel 304 |

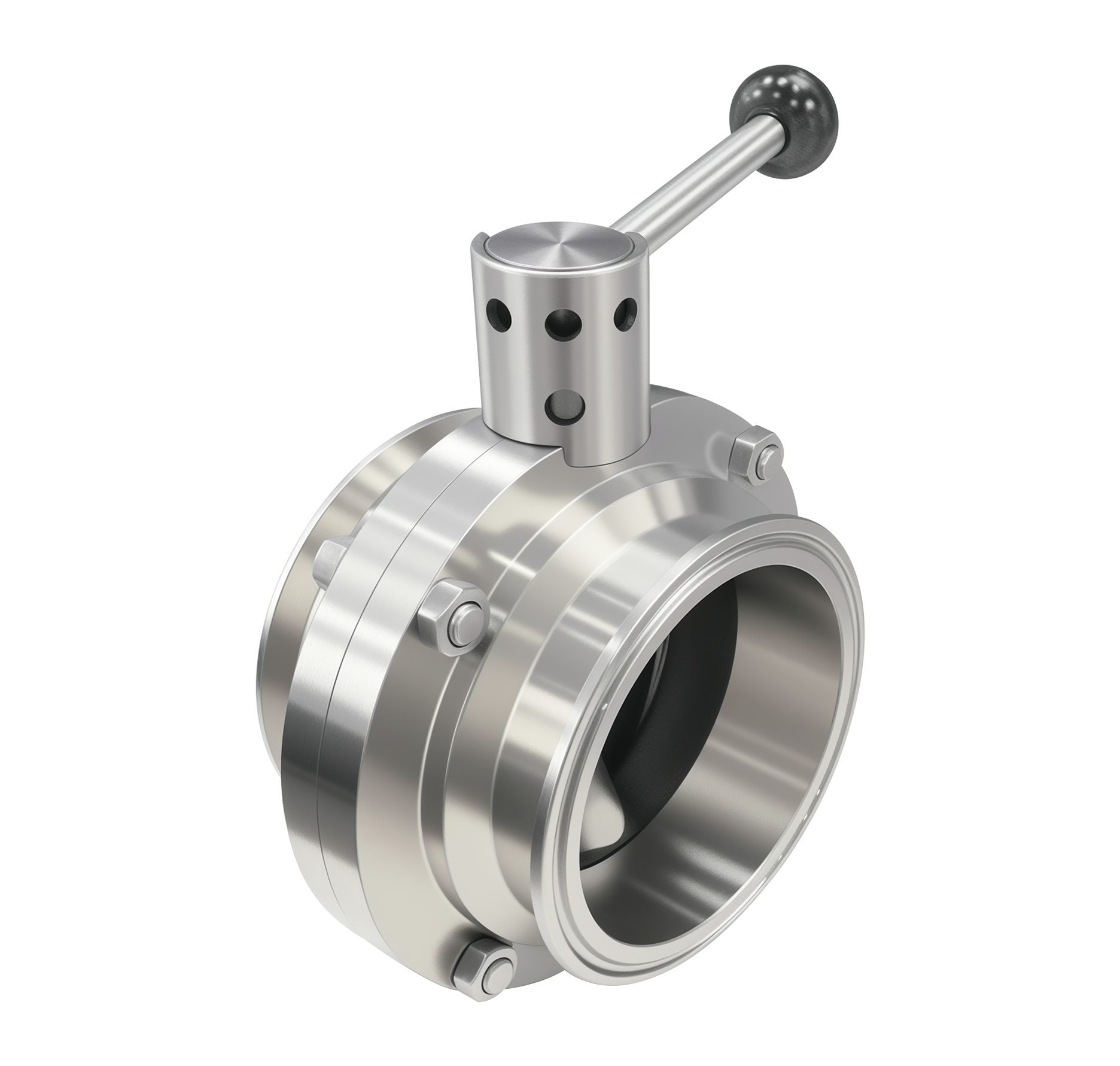

PN10 Fig No.: F1810-50 (SS304) / F1810-51 (SS316)
FEATURES & SPECIFICATIONS
Hygienic clamp end connection.
Stainless steel material with excellent corrosion resistance.
Small and lightweight, easy to disassemble and repair.
Easy and flexible installation, can be installed in any position.
Quick opening and closing with 90° rotation.
End connection comply with ISO 2852 sanitary standard.
Applicable for Building Services, Air-Conditioning, Cold Water Plumbing, Liquid Cooling System, General Industries, etc.
Working pressure : 10bar.
Shell test pressure (x1.5) : 15bar.
Seat test pressure (x1.1) : 11bar.
Working temperature : -20°C … 120°C.
Suitable Media : Water.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Disc | Stainless Steel 304 Stainless Steel 316 |
| Sealing Ring | EPDM / PTFE |
| Bolt & Nut | Stainless Steel 304 |
| Handle | Stainless Steel 304 |

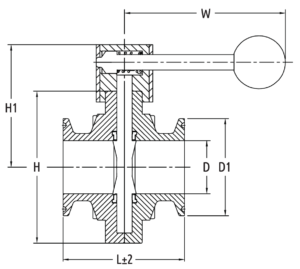

| DN | Ø 51 |
Ø 57 |
Ø 63 |
Ø 76 |
Ø 89 |
Ø 102 |
Ø 108 |
Ø 114 |
Ø 133 |
Ø 140 |
Ø 152 |
Ø 159 |
Ø 203 |
Ø 219 |
| L | 70 | 76 | 76 | 76 | 80 | 84 | 84 | 86 | 100 | 100 | 110 | 110 | 110 | 110 |
| H | 93 | 100 | 110 | 124 | 139 | 155 | 155 | 159 | 185 | 185 | 214 | 214 | 280 | 280 |
| H1 | 77 | 82 | 85 | 92 | 100 | 107 | 107 | 112 | 128 | 128 | 143 | 143 | 193 | 193 |
| W | 130 | 130 | 130 | 160 | 160 | 160 | 160 | 160 | 180 | 180 | 180 | 180 | 300 | 300 |
| D | 48 | 53 | 59 | 72 | 85 | 98 | 104 | 110 | 127 | 155 | 167 | 183 | 198 | 213 |
| D1 | 64 | 78 | 78 | 91 | 106 | 119 | 119 | 130 | 145 | 136 | 155 | 153 | 217 | 233 |
