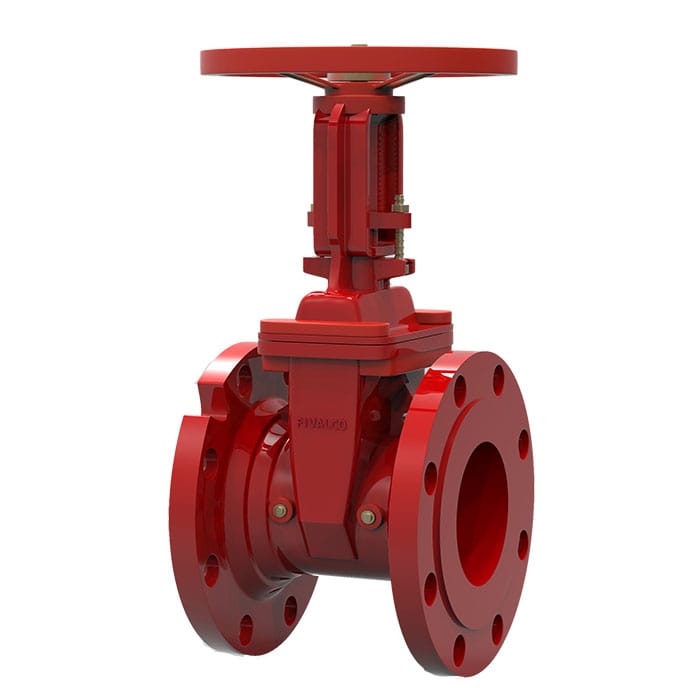

3299-LI-300-FM OS&Y Gate Valve Flanged-Mechanical Joint Ends
300PSI Fig No.: 3299-Ll-300-FM
FEATURES & SPECIFICATIONS
- Valve Standards:
Conforms to AWWA C515/BS5163
- Working Pressure:
21BARS / 300PSI
Temperature: from -10°C to 120°C
Fusion bonded epoxy coated interior and exterior RAL3002
- Flanged Ends:
ANSI B16.1 Class 125/ANSI B16.5 Class 150, EN1092-2 PN16
BS10 TableD /TableE
- Mechanical Joint End to AWWA C153/A21.11
- Stainless Steel Stem
NSF, FM Approved, UL & ULC Listed.
