PRESSURE & TEMPERATURE RATINGS
| Working Pressure | 800psi WOG Non-Shock |
| Testing Pressure | x1.5 times |
| Working Temperature | -25°C…180°C |
| Suitable Media | Water, Oil & Gas |
Material Specification
| Body | Stainless Steel 304 Stainless Steel 316 |
| Bonnet | Stainless Steel 304 Stainless Steel 316 |
| Screen | Stainless Steel 316 |
| Gasket | PTFE |

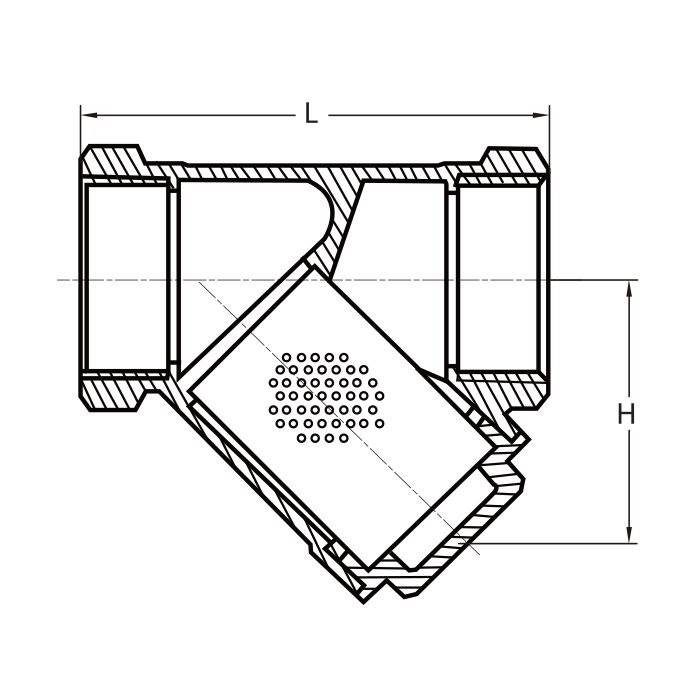

DIMENSIONS VALVE BODY
| DN | (mm)
(inch) |
8
¼ |
10
⅜ |
15
½ |
20
¾ |
25
1 |
32
1¼ |
40
1½ |
50
2 |
65
2½ |
80
3 |
100
4 |
| L | 64 | 64 | 64 | 80 | 90 | 106 | 119 | 140 | 167 | 198 | 238 | |
| H | 43 | 43 | 43 | 50 | 65 | 69 | 79 | 95 | 117 | 137 | 163 |
