PRESSURE & TEMPERATURE RATINGS
| Working Pressure | 16bar |
| Shell Testing Pressure (x1.5) | 24bar |
| Seat Testing Pressure (x1.1) | 17.6bar |
| Working Temperature | -20°C…120°C |
| Suitable Media | Water, Oil & Gas |
Material Specification
| Body | Stainless Steel 304 Stainless Steel 316 |
| Disc | Stainless Steel 304 Stainless Steel 316 |
| Cover | Stainless Steel 304 Stainless Steel 316 |
| Pin | Stainless Steel 304 Stainless Steel 316 |
| Washer | PTFE |

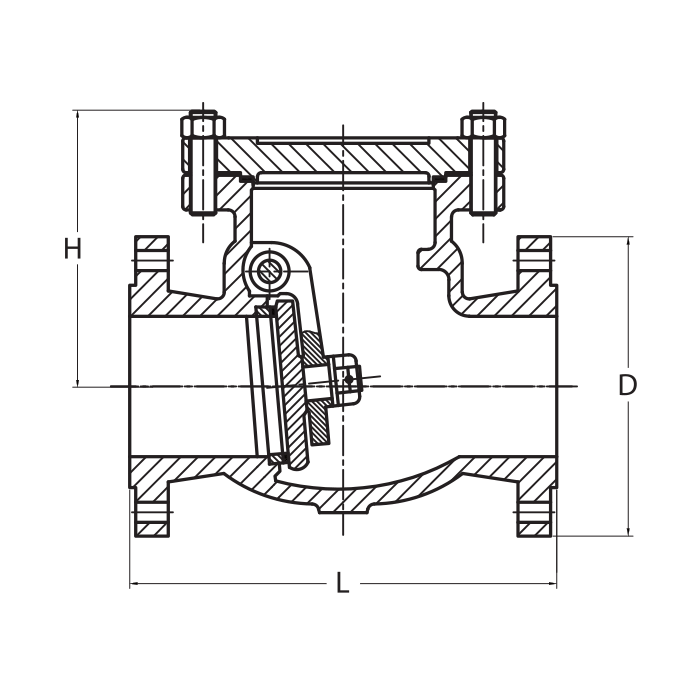

DIMENSIONS VALVE BODY
| DN | (mm)
(inch) |
25
1 |
32
1¼ |
40
1½ |
50
2 |
65
2½ |
80
3 |
100
4 |
125
5 |
150
6 |
200
8 |
| L | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | |
| H | 64 | 68 | 75 | 97 | 111 | 120 | 162 | 179 | 203 | 236 | |
| D | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 |
