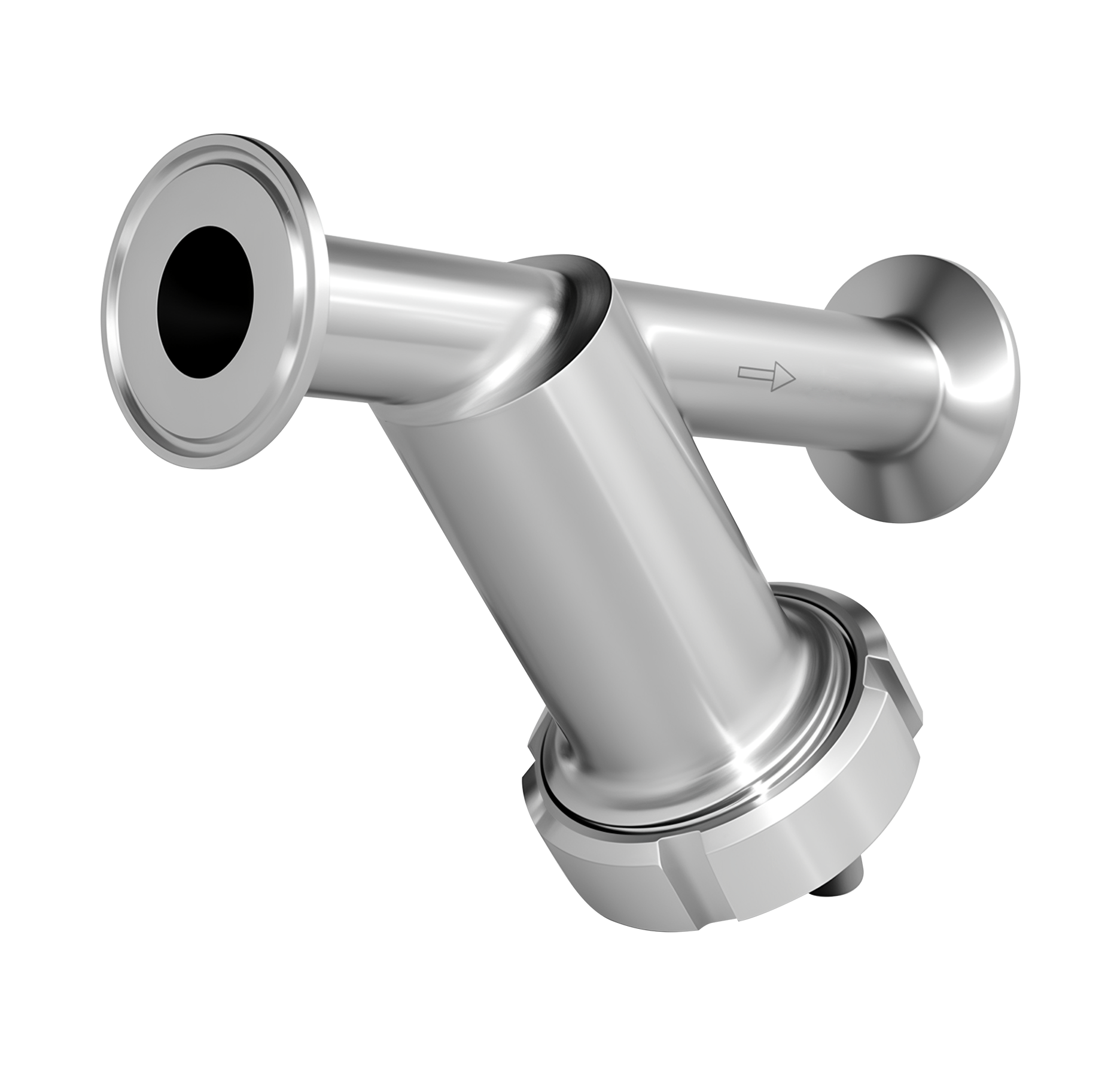

PN10     Fig No.: F78Y10-50 (SS304) / F78Y10-51 (SS316)

FEATURES & SPECIFICATIONS
Hygienic clamp end connection.
Filter the particles and debris that may be carried by process fluid in the pipeline.
Bolted cover with drain plug.
Stainless steel perforated screen.
Stainless steel material with excellent corrosion resistance.
Small and lightweight, easy to disassemble and repair.
Easy and flexible installation, can be installed in any position.
End connection comply with ISO 2852 sanitary standard.
Applicable for Building Services, Air-Conditioning, Cold Water Plumbing, Liquid Cooling System, General Industries, etc.
Working pressure : 10bar.
Shell test pressure (x1.5) : 15bar.
Working temperature : -20°C … 120°C.
Suitable Media : Water.
