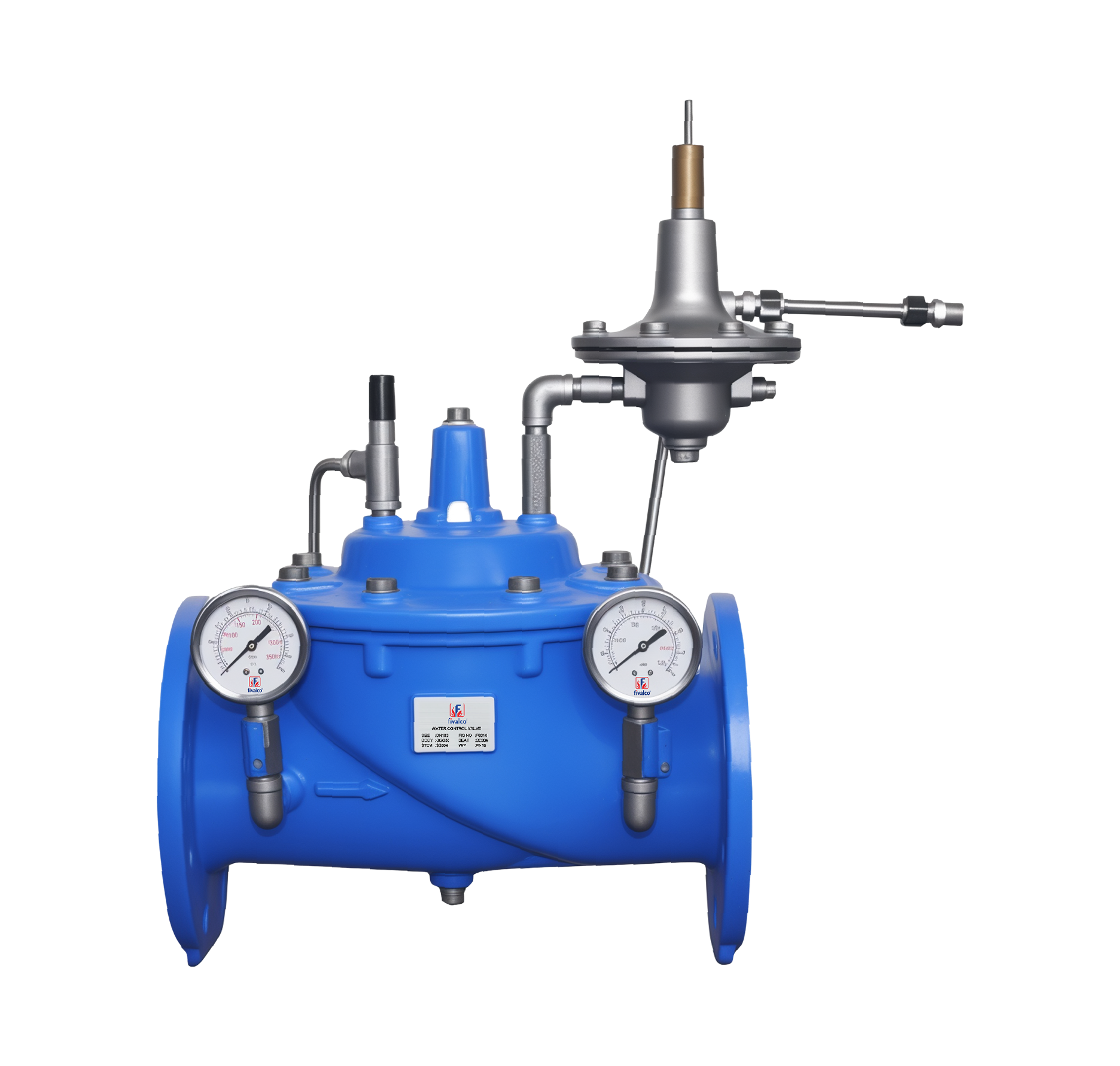

PN16/PN25     Fig No.: F6316-FCV/F6325-FCV

FEATURES & SPECIFICATIONS
Maintain constant flow, regardless of fluctuations of system pressure.

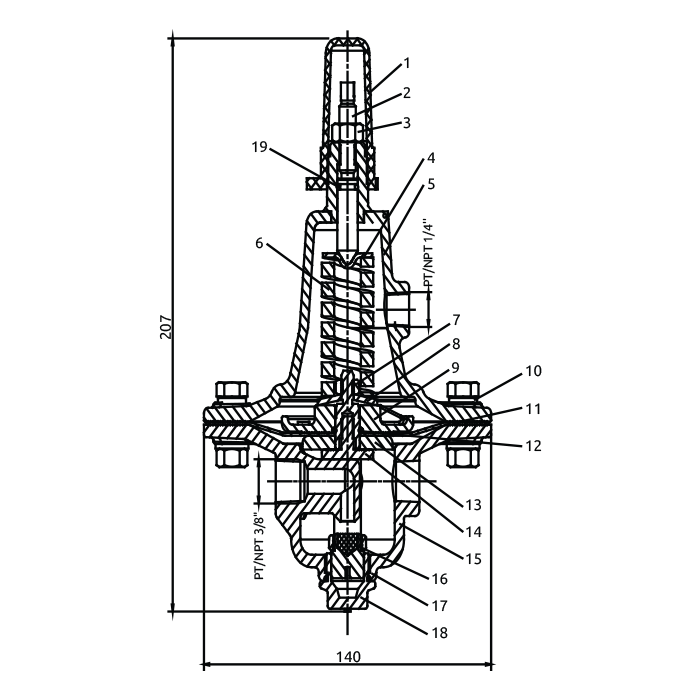

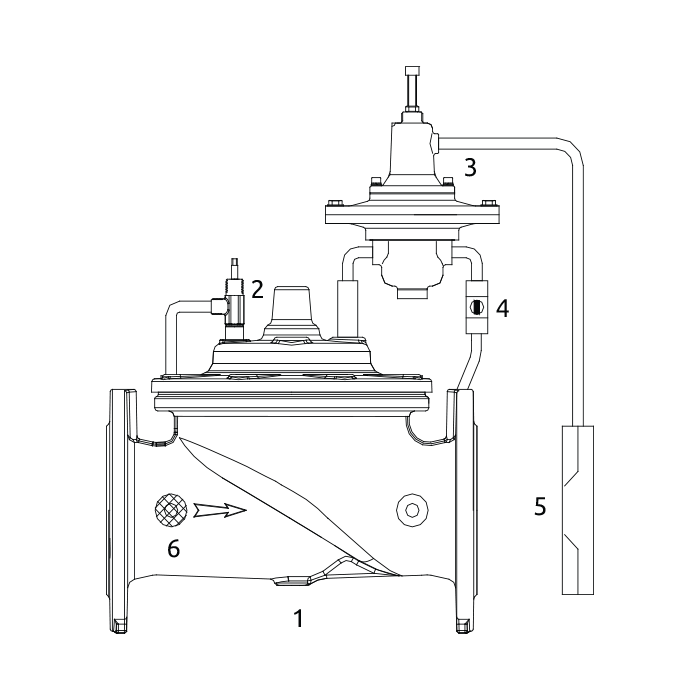

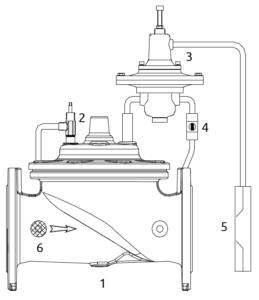

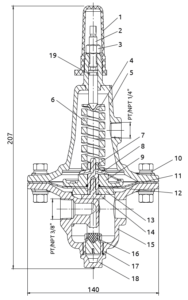

The flow rate is adjustable at the pilot, it senses the pressure differential across an orifice plate mounted in the valve outlet flange.
Whenever the system pressure changes, the pilot responds and modulate the main valve to maintain the desired flow.
Full bore globe pattern design for superior control characteristic.
Nylon reinforced diaphragm for long-lasting performance.
Durable fusion bonded epoxy coated.
Design comply with EN 1074-5.
Flange drilled to EN 1092-2 PN16 / EN 1092-2 PN25 / ANSI Class 150 (Specify on order).
Working pressure : 16bar/25bar.
Shell test pressure (x1.5) : 24bar/37.5bar.
Seat test pressure (x1.1) : 17.6bar/27.5bar.
Working temperature : -20°C … 110°C (EPDM) / -10°C … 80°C (NBR).
Suitable Media : Water.
