| Part | Material | Specification |
| Body | Ductile Iron | EN-JS 1050 |
| Bonnet | Ductile Iron | EN-JS 1050 |
| Plug | Stainless Steel 304 | AISI 304 |
| Stem | Stainless Steel 304 | AISI 304 |
| Seat | Stainless Steel 304 | AISI 304 |
| Seat Retainer | Stainless Steel 304 | AISI 304 |
| Spring | Stainless Steel 304 | AISI 304 |
| Diaphragm | Nylon Reinforced Rubber | EPDM + Nylon Fabric |
| Seal Ring | Rubber | EPDM |
| O-Ring | Rubber | NBR |

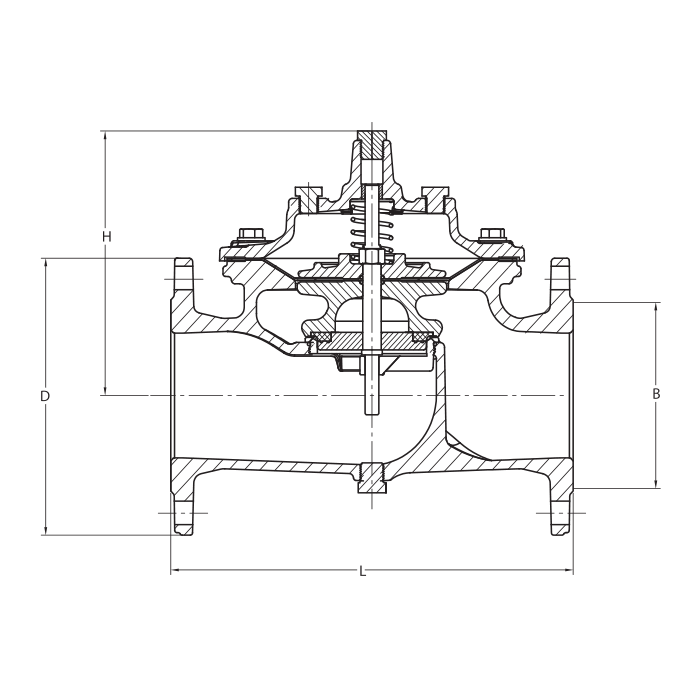

| DN | (mm) (inch) |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
| L | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | |
| H | 177 | 202 | 219 | 243 | 243 | 333 | 428 | 478 | 538 | |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | |
| B | 99 | 118 | 132 | 156 | 156 | 211 | 266 | 319 | 370 |

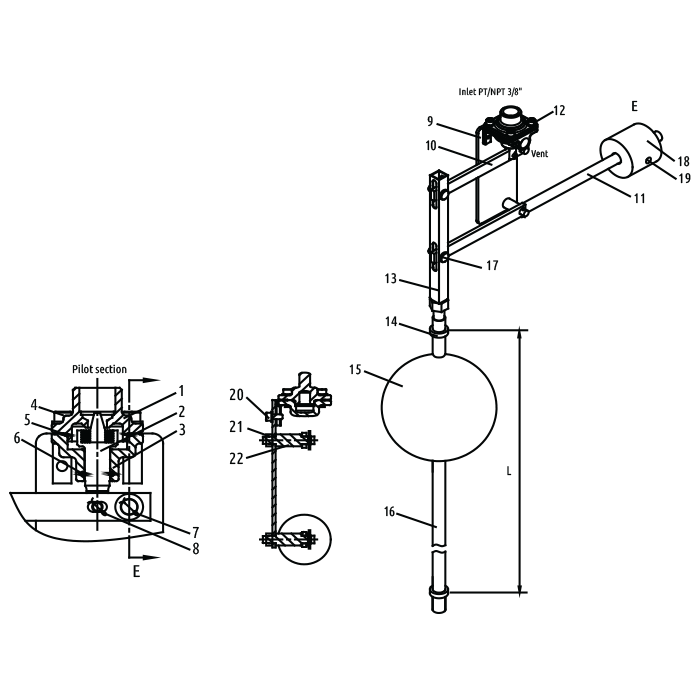

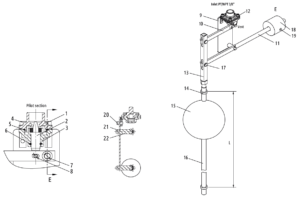

| No. | Description | Material |
| 1 | Bonnet | SS304 |
| 2 | Disc | SS304 + EPDM |
| 3 | Body | SS304 |
| 4 | Bolt + Washer | SS304 |
| 5 | O-Ring | NBR |
| 6 | O-Ring | NBR |
| 7 | Split Pin | SS304 |
| 8 | Split Pin | SS304 |
| 9 | Plate | SS304 |
| 10 | Bar 1 | SS304 |
| 11 | Bar 2 | SS304 |
| 12 | Screw | SS304 |
| 13 | Up Rod | SS304 |
| 14 | Stop Collar | SS304 |
| 15 | Float | SS304 |
| 16 | Low Rod | SS304 |
| 17 | Pin Roll & Split Pin | SS304 |
| 18 | Weight | SS304 |
| 19 | Set Screw | SS304 |
| 20 | Nut + Washer | SS304 |
| 21 | Nut | SS304 |
| 22 | Roller | SS304 |

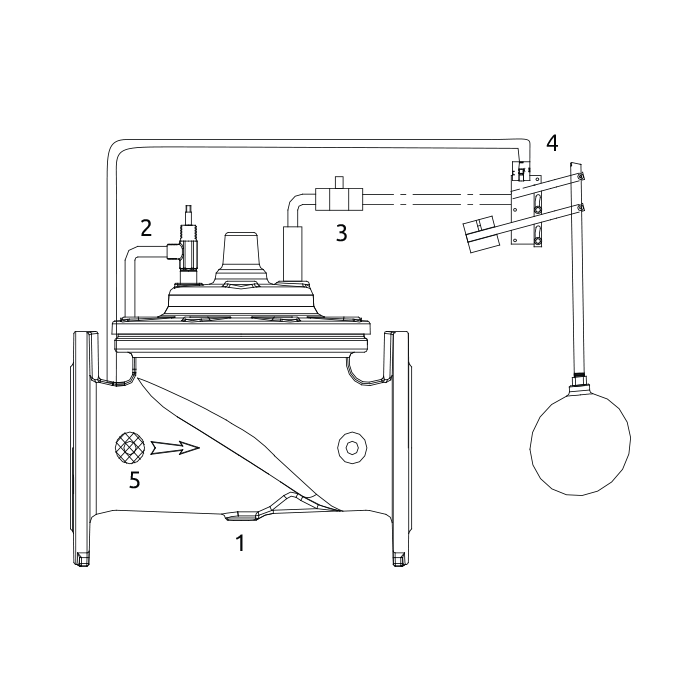

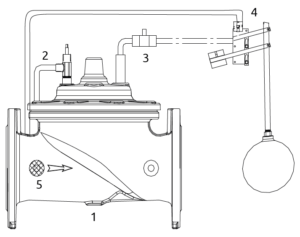

| No. | Part |
| 1 | Main Valve |
| 2 | Needle Valve |
| 3 | Ball Valve |
| 4 | Bi-Level Float |
| 5 | Strainer |
