F4S64D SS 2-PIECE BODY BALL VALVE

F4S64D SS 2-PIECE BODY BALL VALVE

Fig No.: F4S64D-50 (SS304) / F4S64D-51 (SS316)

FEATURES & SPECIFICATIONS

Two-piece body.
90° quarter turn.
Bi-direction zero-leakage.
Full bore design.
Threaded body cap.
Threaded to EN 10226-1 (ISO 7).
Blow-out proof stem.
Locking device available as option.
Design conforms to ASME B16.34.
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, General Industries.

Category Stainless Steel Industrial Valves

PRESSURE & TEMPERATURE RATINGS

Working Pressure	1000psi
Shell Testing Pressure	x1.5 times
Seat Testing Pressure	x1.1 times
Working Temperature	-25°C…180°C
Suitable Media	Water, Oil & Gas

Material Specification

Body	Stainless Steel 304 Stainless Steel 316
Cap	Stainless Steel 304 Stainless Steel 316
Ball	Stainless Steel 304 Stainless Steel 316
Seat	PTFE
Thrust Washer	PTFE
Packing	PTFE
Nut	Stainless Steel 304
Handle	Stainless Steel 304

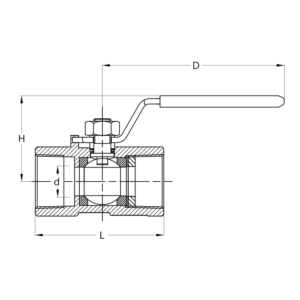

DIMENSIONS VALVE BODY

DN	(mm) (inch)	8 ¼	10 ⅜	15 ½	20 ¾	25 1	32 1¼	40 1½	50 2	65 2½	80 3	100 4
L		50	50	53	65	73	85	94	112	147	172	220
H		49	49	51	58	73	79	85	95	126	138	158
D		106	106	104	116	148	148	182	182	252	252	283
d		11	12.5	15	20	25	32	38	50	65	76	94
Torque (N.m)		4	4	5	8	10	14	25	40	48	80	103
