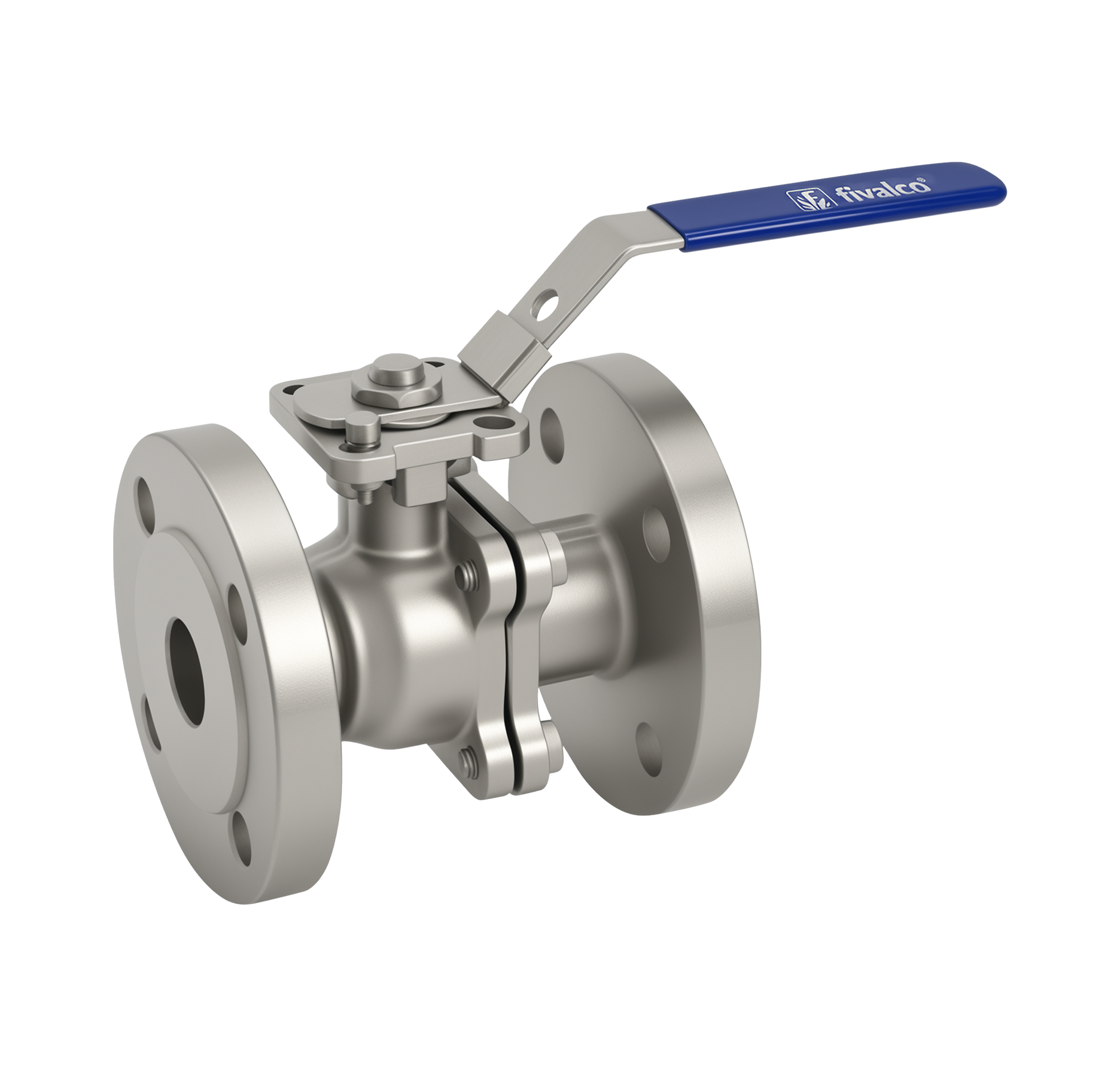

PN16 Fig No.: F43D16-50 (SS304) / F43D16-51 (SS316)
FEATURES & SPECIFICATIONS
2-piece body full port design.
Design conforms to GB/T 12224.
Face to face dimensions to GB/T 12224.
Oil-free processing treatment option available.
Flange drilled to EN 1092-2 PN16.
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 16bar.
Shell test pressure (x1.5) : 24bar.
Seat test pressure (x1.1) : 17.6bar.
Working temperature : 0°C … 120°C.
Suitable Media : Water, Oil & Gas.
| Part | Material |
| Body | Stainless Steel 304 Stainless Steel 316 |
| Cover | Stainless Steel 304 Stainless Steel 316 |
| Ball | Stainless Steel 304 Stainless Steel 316 |
| Seal Ring | PTFE |
| Gasket | PTFE |
| Stem | Stainless Steel 304 Stainless Steel 316 |
| Packing | PTFE |
| Gland | Stainless Steel 304 |
| Spring | Stainless Steel 304 |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |

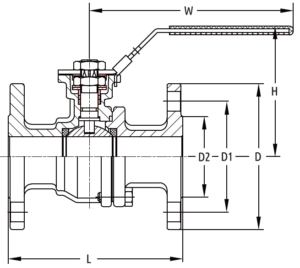

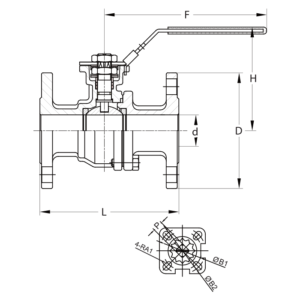

| L | 130 | 130 | 140 | 165 | 165 | 203 | 222 | 241 | 305 | 356 | 394 | 457 | |
| H | 90 | 95 | 100 | 103 | 125 | 137 | 170 | 185 | 205 | 255 | 300 | 340 | |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | |
| D2 | 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 155 | 185 | 210 | 265 | |
| W | 185 | 185 | 185 | 185 | 235 | 235 | 244 | 295 | 295 | 600 | 800 | 800 |
