| Name | Material |
|---|---|
| Body | Ductile Iron ASTM A536 65-45-12 |
| Wedge | Ductile Iron ASTM A536 65-45-12 +EPDM |
| Wedge Nut | Stainless Steel AISI 304 |
| Stem | Stainless Steel AISl304/420 |
| Bonnet | Ductile Iron ASTM A536 65-45-12 |
| Gasket | EPDM |
| Packing | Graphite |
| Stem Nut | Bronze ASTM B62 |
| Handwheel | Ductile Iron ASTM A536 65-45-12 |

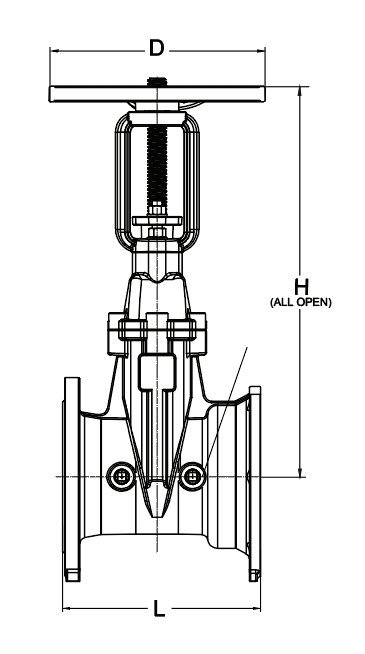

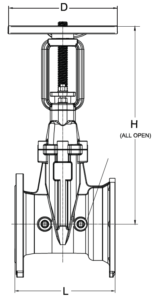

| Size | 3″/80 | 4″/100 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| L | 8.74/222 | 9.51/241.5 | 11/279.5 | 12.00/305 | 13.88/352.50 | 14.45/367 |
| H | 18.19/462 | 20.24/514 | 27.91/709 | 33.91/922 | 43.94/1116 | 51.18/1300 |
| D | 9.96/253 | 9.96/253 | 12.05/306 | 13.98/355 | 17.52/445 | 17.52/445 |
| Size | 3″/80 | 4″/100 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| N.W. | 22.13 | 27.16 | 46.90 | 72.00 | 111.00 | 167.00 |
| Create Qty | 16 | 16 | 9 | 6 | 4 | 2 |
NOTES
1. Valve is rated at 300PSI for Fire Protection Service.
2. Design and materials are subject to change without notice.
