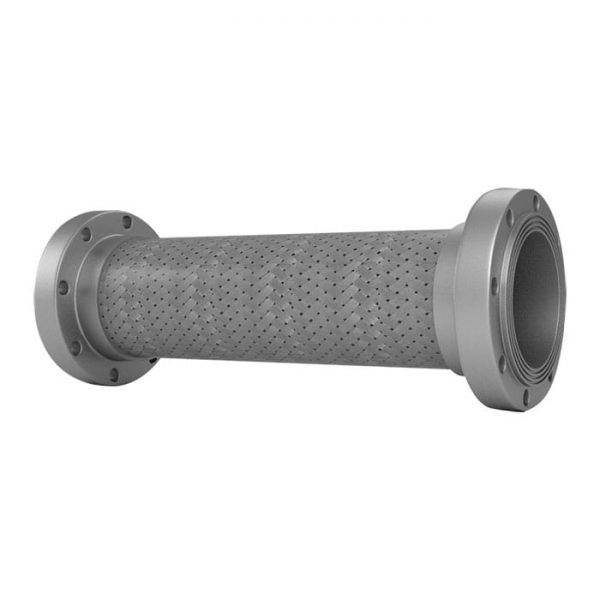

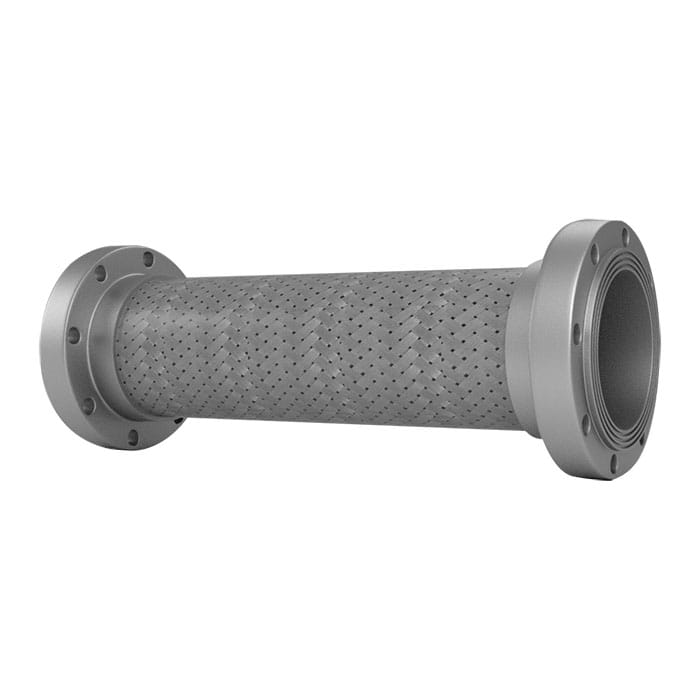

F83MH FLEXIBLE HOSE

Fig No.: F83MH16 (PN16) / F83MH25 (PN25)

SPECIFICATIONS

Flange drilled to BS 4504 PN16 / BS EN 1092-2 PN16 / BS 4505 PN25 / BS EN 1092-2 PN25 / ANSI Class 150 (Specify on order).
Stainless Steel 304 internal bellow and external braiding.

APPLICATIONS

Designed to compensate for piping misalignment and movement.
To accommodate vibration, reduce noise, relief stress and prevent system shock.
Suitable for applications such as pumps, compressors and other mechanical equipment.
Applicable to Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing & Sanitary, Hot Water System, General Industries.

Categories: Mechanical Service & HVAC, Piping Specialities

Description

PRESSURE & TEMPERATURE RATINGS

Working Pressure	16bar / 25bar
Testing Pressure (x1.5)	24bar / 37.5bar
Working Temperature	Maximum 220°C
Suitable Media	Water, Air, Steam, Oil, Gas

Material Specification

Part	Material
Ring	Carbon Steel
Bellow	Stainless Steel 304
Braiding	Stainless Steel 304
Flange	Carbon Steel Stainless Steel 304

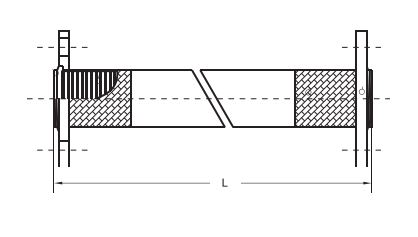

DIMENSIONS & MOVEMENTS

DN

(mm)

(inch)

20

³/4

25

1

32

1¹/4

40

1¹/2

50

2

65

2¹/₂

80

3

100

4

125

5

150

6

200

8

250

10

300

12

350

14

400

16

450

18

500

20

600

24

L

300

300

300

300

300

300

300

300

300

300

300

300

300

300

400

500

500

500

Lateral Movement

33

33

33

33

33

32

32

26

20

18

9

7

4

3.1

2.8

2.5

2.2

1.9

Notes:
– PN25 only available for size DN20 … DN350.
– Other length available on request.
