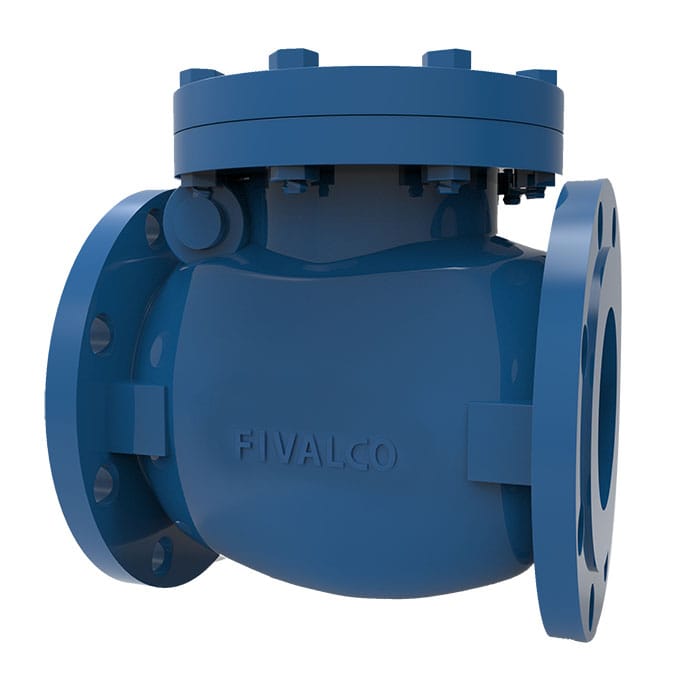

F53S SWING CHECK VALVE

Fig No.: F53S16 (PN16)

FEATURES & SPECIFICATIONS

Bolted bonnet.
Durable fusion bonded epoxy coated.
Comply with BS 5153 / EN 12334 / MS SSP71.
Face to face dimension conforms to EN558-1 (Series 10).
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.

Categories: Iron Valves, Mechanical Service & HVAC

Description

PRESSURE & TEMPERATURE RATINGS

Working Pressure	16bar
Shell Testing Pressure (x1.5)	24bar
Seat Testing Pressure (x1.1)	17.6bar
Working Temperature	-10°C … 120°C
Suitable Media	Water, Oil, Gas

Material Specification

Part	Material	Specification
Body	Ductile Iron (DN50 … DN250) Cast Iron (DN300 … DN600)	EN-JS 1050 EN-JL 1040
Bonnet	Cast Iron	EN-JL 1040
Disc	Ductile Iron (DN50 … DN250) Cast Iron (DN300 … DN600)	EN-JS 1050 EN-JL 1040
Seat Ring	Gunmetal	EN 1982-2008 GC CC491K
Disc Ring	Gunmetal	EN 1982-2008 GC CC491K
Hanger	Ductile Iron	EN-JS 1050
Gasket	Graphite

DIMENSIONS

DN

(mm)

(inch)

50

2

65

2¹/₂

80

3

100

4

125

5

150

6

200

8

250

10

300

12

350

14

400

16

450

18

500

20

600

24

L

203

216

241.5

292

330

355.5

495.5

622.5

698.5

787.5

914

914

1016

1219

H

112

132

141

162

192

211

270

316

357

560

589

645

702

812
