PRESSURE & TEMPERATURE RATINGS
| Working Pressure | 200psi WOG Non-Shock |
| Shell Testing Pressure | x1.5 times |
| Seat Testing Pressure | x1.1 times |
| Working Temperature | -25°C…180°C |
| Suitable Media | Water, Oil & Gas |
Material Specification
| Body | Stainless Steel 304 Stainless Steel 316 |
| Disc | Stainless Steel 304 Stainless Steel 316 |
| Stem | Stainless Steel 304 Stainless Steel 316 |
| Cap | Stainless Steel 304 Stainless Steel 316 |
| Seal | PTFE |
| Gasket | Stainless Steel 304 |
| Packing | PTFE |
| Handwheel | Cast Iron |

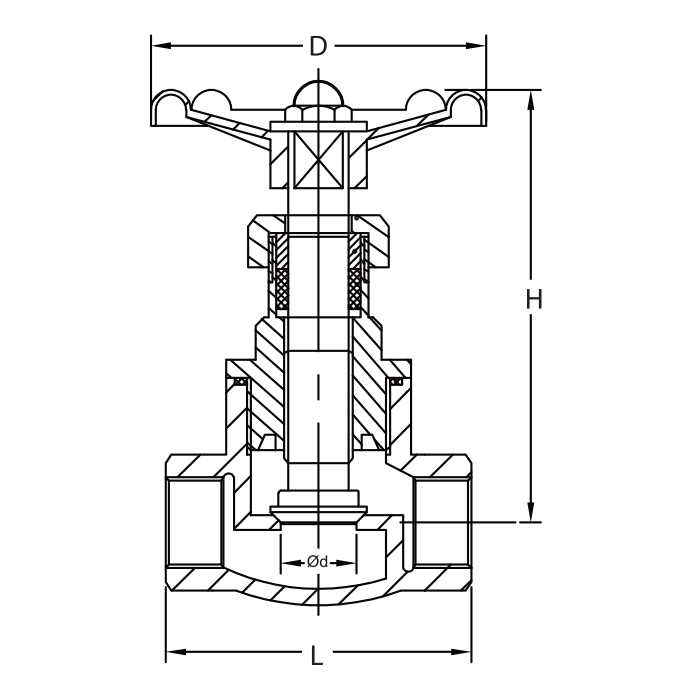

DIMENSIONS VALVE BODY
| DN | (mm)
(inch) |
8
¼ |
10
⅜ |
15
½ |
20
¾ |
25
1 |
32
1¼ |
40
1½ |
50
2 |
65
2½ |
80
3 |
| L | 55 | 55 | 67 | 75 | 85 | 101 | 115 | 136 | 165 | 190 | |
| H | 79 | 79 | 79 | 91 | 106 | 125 | 136 | 146 | 177 | 197 | |
| D | 65 | 65 | 65 | 77 | 77 | 97 | 97 | 97 | 126 | 126 |
