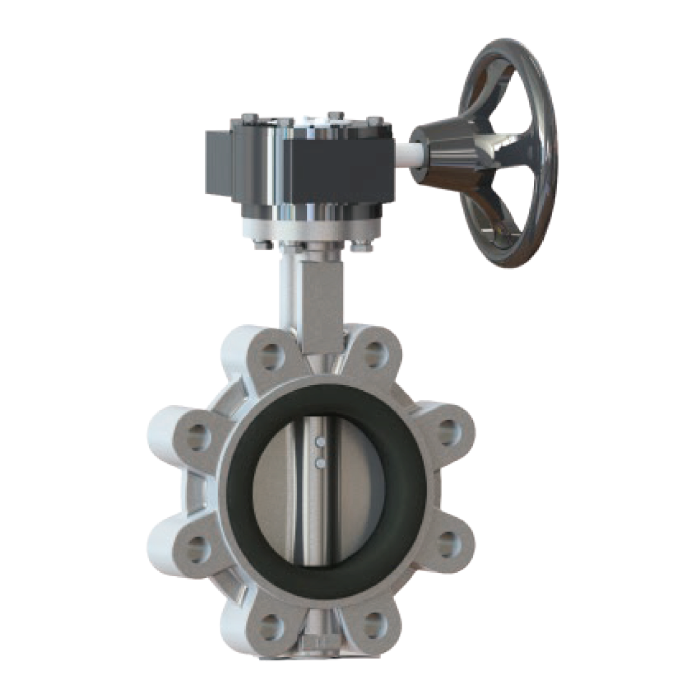

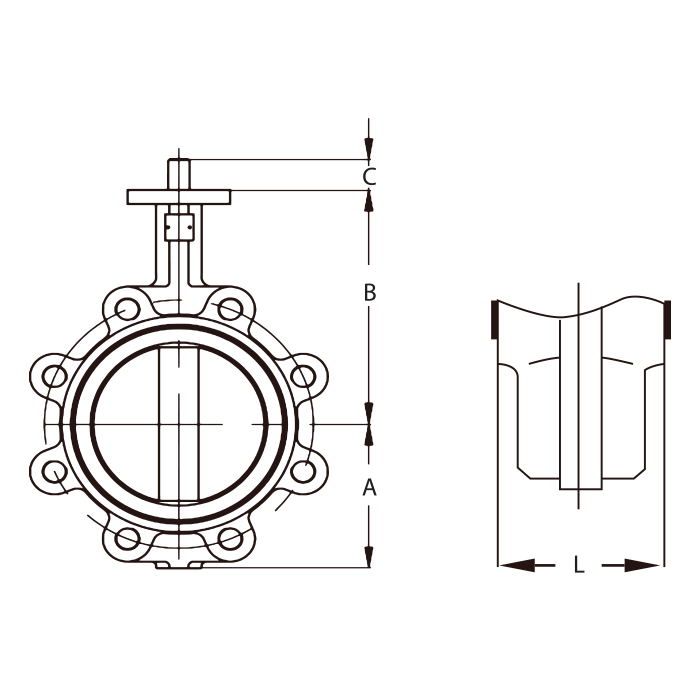

F1216 SS FULL LUG BUTTERFLY VALVE

Fig No.: F1216-50 (SS304) / F1216-51 (SS316)

FEATURES & SPECIFICATIONS

  • Higher strength for disc with pinned single shaft ensure optimal alignment.
  • Centrally mounted disc and hydrodynamic design minimize pressure loss.
  • Can be installed at horizontal or vertical pipe line.
  • Phenolic backed rubber seat is non-collapsible, stretch resistant and easily replaceable.
  • Excellent flow characteristic with flow in either direction.
  • Design conforms to BS EN 593 / BS 5155 / MSS SP-67 / API 609.
  • Precision machining of disc for low operating torque.
