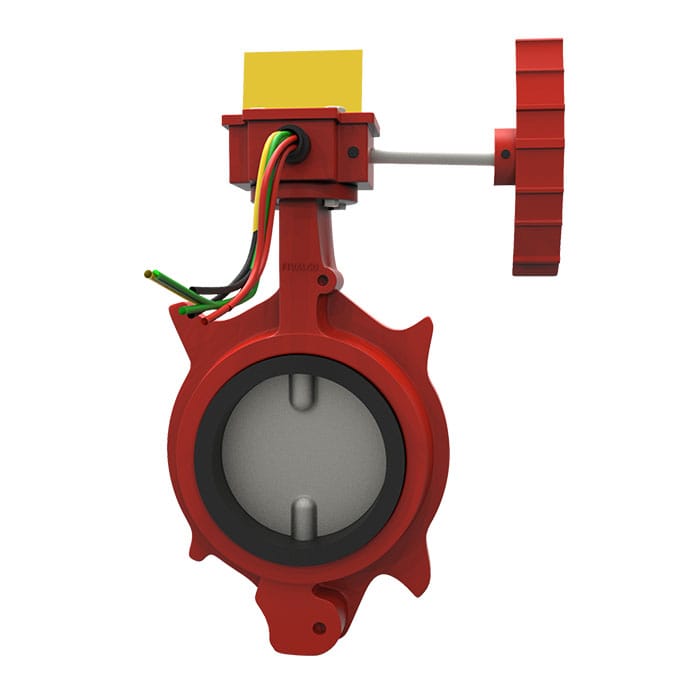

英标蝶阀对夹式

PN20 / 300PSI Fig No.: 1353

FEATURES & SPECIFICATIONS

Valve Standards:
Complies with EN593/BS5155/MSS SP-67
Working Pressure and Temperature:
Working pressure PN20/300PSI
Temperature from -10°C to 100°C for EPDM coated disc
Temperature from -10°c to 82°C for NBR coated disc
Top Flange:
Complies with ISO5211/1
End-to-End:
Dimensions according to MSS SP-67-2002
Flange Types:
BSEN 1092-2 PN16, ANSI B16.1 Class125
Operator:
Gear operator: With two internal CE approved switches

分类：消防产品, 英标阀门

描述

Material Specification

Name	Material	EN Spec.
Body	Ductile Iron	EN-JS1050
Shaft	Stainless Steel	BS970 420S37
Disc	DI EPDM Coated DI NBR Coated	EN-JS1050 EN-JS1050
Bushing	PTFE	Commercial
O-Ring	EPDM/NBR	Commercial

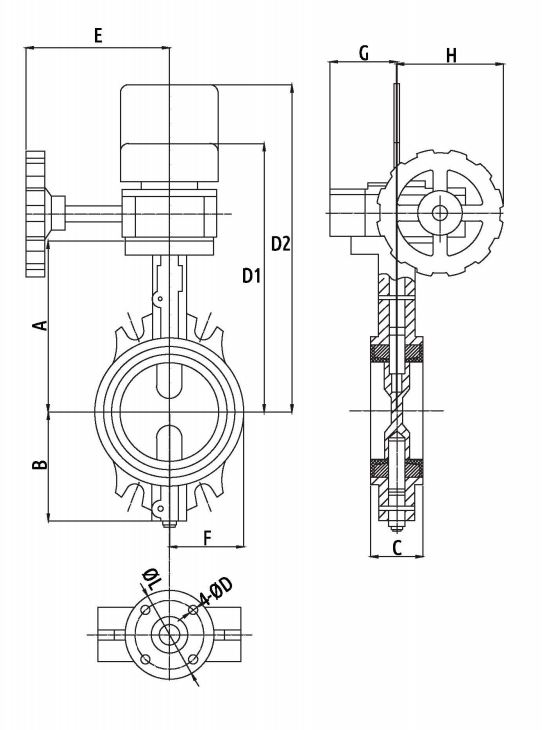

DIMENSIONS (mm)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
A	132.5	145	154.5	179	191.5	213.5	250.5	282.5	325.5
B	78	85	93	112	130	146	175	210	247
C	43	46	46	52	56	56	60	68	78
D1	233.5	246	255.5	280	292.5	314.5	351.5	383.5	426.5
D2	293.5	306	315.5	340	352.5	374.5	411.5	443.5	486.5
E	147	147	147	147	147	147	147	197	197
F	53	63	74	77.5	93	107	134	162	185
G	71.5	71.5	71.5	71.5	71.5	71.5	71.5	75	75
H	109	109	109	109	109	145	145	166	166
L	70	70	70	70	70	70	70	102	102
4-ØD	6	6	6	6	6	8	8	10	10

Net Weight (kg) & Crate qty (pcs)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
N.W.	7.00	7.30	8.30	11.00	12.50	14.00	22.00	29.00	36.00
Create Qty	100	100	80	80	50	50	24	20	20
