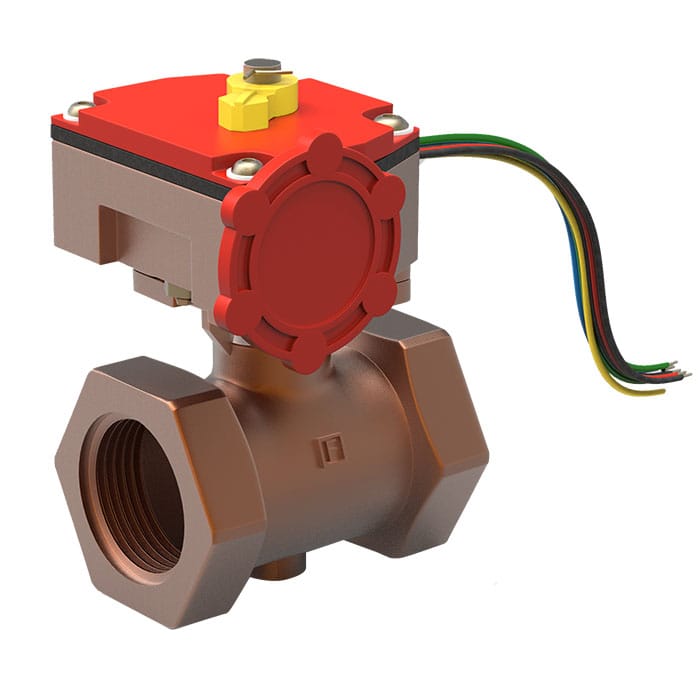

Material Specification
| Name | Material |
|---|---|
| Body | Bronze C836000 |
| Disc | Stainless Steel AISl304 |
| Hand Wheel | WCB |
| Seat | Viton |
| Indicator | Powder Metal |
| Housing | Forged Brass |

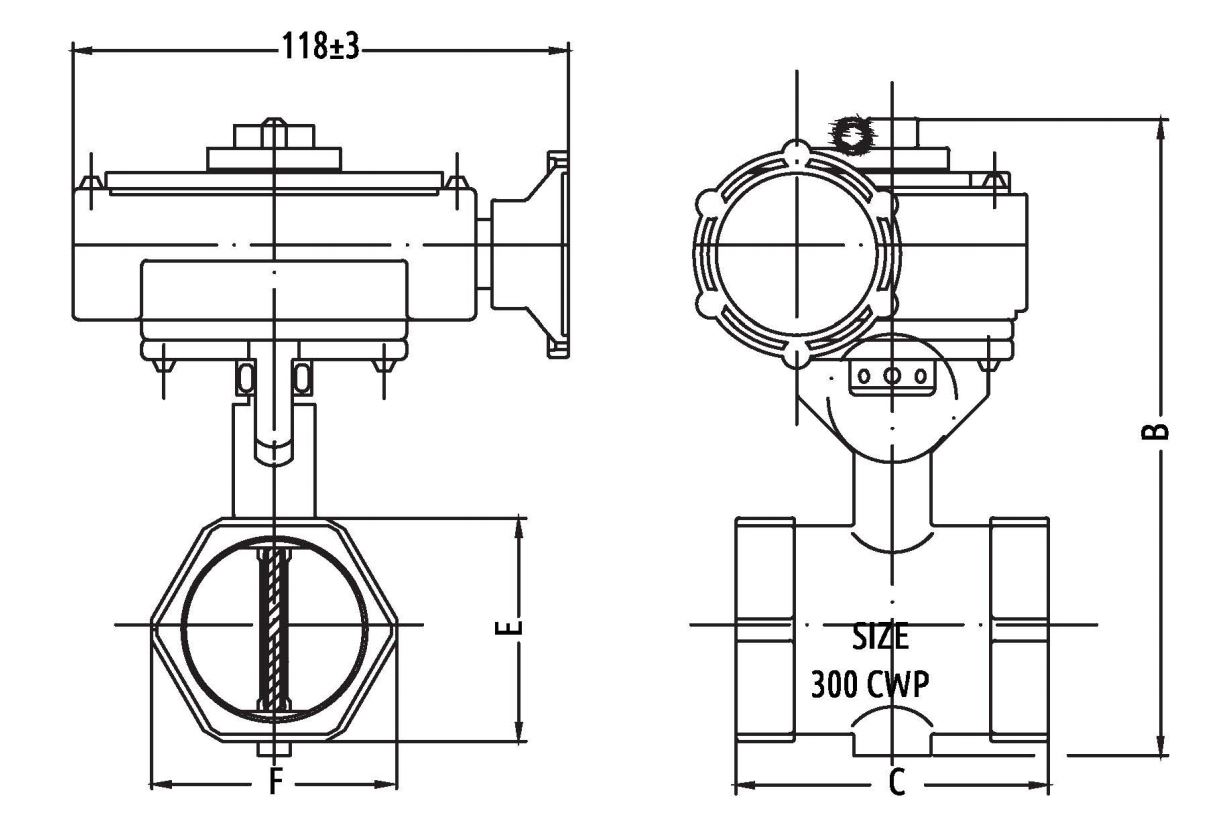

DIMENSIONS (mm)
| Size | 1″/25 | 1.25″/32 | 1.5″/40 | 2″/50 | 2.5″/65 |
| B | 129 | 137.9 | 145.9 | 159.8 | 175.5 |
| C | 54 | 66.7 | 73 | 82.6 | 114 |
| E | 39.7 | 49.2 | 55.6 | 70 | 86.5 |
| F | 44.5 | 55 | 60.3 | 79 | 96 |
DN25 is UL List but Non ULC
Net Weight (kg) & Crate qty (pcs)
| Size | 1″/25 | 1.25″/32 | 1.5″/40 | 2″/50 | 2.5″/65 |
| N.W. | 1.55 | 1.71 | 1.83 | 2.35 | 3.38 |
| Create Qty | 6 | 6 | 6 | 6 | 6 |
