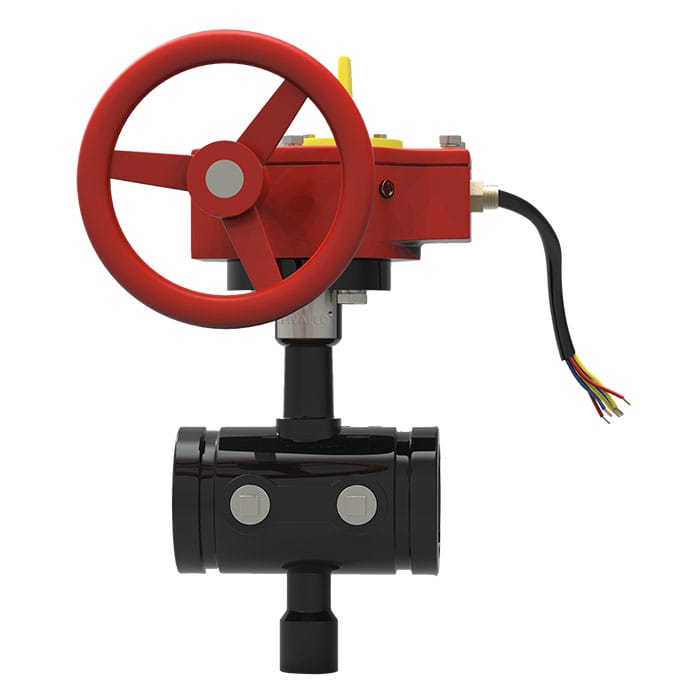

P25_FPB-300GT

sketch-red-24

蝶阀沟槽连接带螺纹孔

300PSI Fig No.: FPB-300GT

FEATURES & SPECIFICATIONS

Valve Standards:
Conforms to MSS SP-67 / BS EN593: 2009
Working Pressure:
300 PSI (21 BARS) -Non Shock Coldwater
Max. Test Pressure: 600 PSI (42.8 BARS)/FM Standard 1112
Temperature:
from -20°C to 110°C
Factory installed UL, listed double Tamper Switches
Valve Approved For Indoor and Outdoor Use
Fusion Bonded Epoxy Coated Interior and Exterior RAL 3000
Grooved Ends to suit BS or ANSI pipe size

分类：消防产品, 蝶阀

描述

Material Specification

Name	Material
Signal Gearbox	Ductile Iron ASTM A536 65-45-12
Lower Shaft Sealing Nut	WCB ASTM A216
Lower Shaft	Stainless Steel SS416
Disc	Dl+EPDM
Upper Shaft	Stainless Steel SS416
Body	Ductile Iron ASTM A536 65-45-12
Shaft Seal	EPDM
Upper Shaft Sealing Nut	WCB ASTM A216
Plug	C95400 ASTM B148

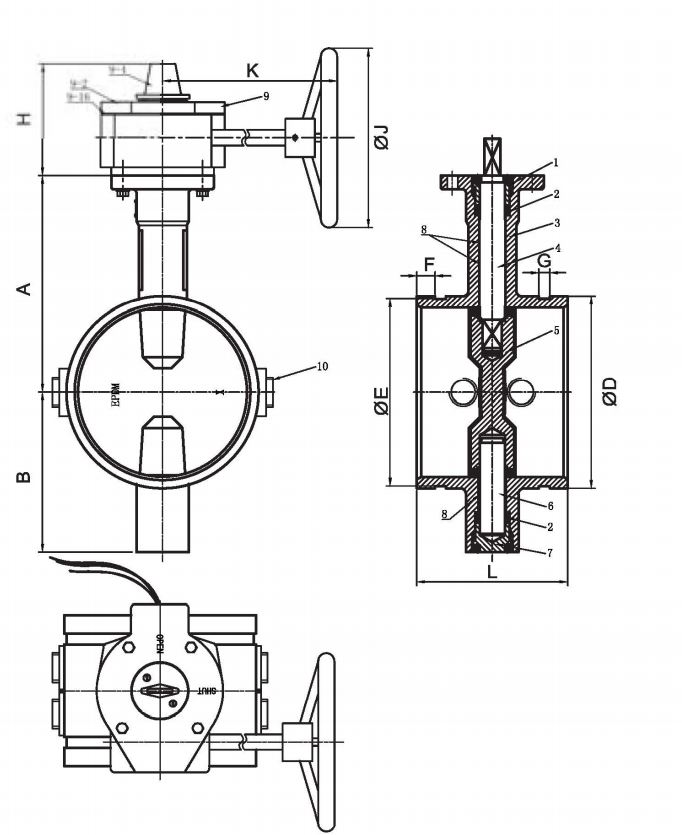

DIMENSIONS (mm)

Size	A	B	C	D	E	F	G	H	K	J	L
2.5″	125	95	32	73/76.1	69.1/72.1	15.9	7.9	111	153	152	152.4
3″	140	100	32	88.9	84.9	15.9	7.9	111	153	152	158.8
4″	160	100	32	114.3	110.1	15.9	9.5	111	153	152	168.4
6″	190	140	32	168.3/165.1	164/160.7	15.9	9.5	111	153	200	177.8
8″	230	175	32	219.4/216.3	214.6/211.6	19	11.1	126	230	290	203

Net Weight (kg) & Crate qty (pcs)

Size	2.5″/65	3″/80	4″/100	6″/150	8″/200
N.W.	9.30	10.20	11.50	17.00	32.90
Create Qty	25	20	20	14	6
