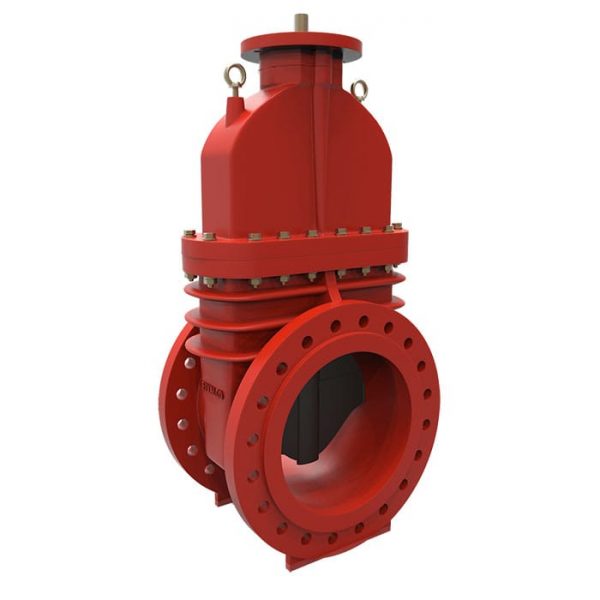

P12_3288-L-200-FLA(G02)

NRS-Large-Gate-Valve-Flanged-Ends-Sketch

大尺寸法兰式明杆软密封闸阀

250PSI Fig No.:3288-L-200-FLA/ 3288-L-250-FLA

FEATURES & SPECIFICATIONS

Valve Standard:
Conforms to AWWA C515
Working Pressure:
250PSI for DN350/400/450
200PSI for DN500/600
Temperature: from -10°C to 120°C
Fusion bonded epoxy coated interior and exterior RAL3002
Flanged Ends:
ANSI B16.1 Class 125/ANSI B16.5 Class 150, EN1092-2 PN16
BS10 TableD/TableE
Stainless Steel Stem

分类：消防产品, 闸阀

描述

Material Specification

Name	Material
Body	Ductile Iron ASTM A536 65-45-12
Wedge Disc	Ductile Iron ASTM A536 65-45-12 +EPDM
Disc Nut	ASTM B62 C83600
Stem	Stainless Steel AISI 431
Gasket	EPDM
Bonnet	Ductile Iron ASTM A536 65-45-12
Thrust Collar	Bronze ASTM B62
Gland	Ductile Iron ASTM A536 65-45-12
Wrench Nut	Ductile Iron ASTM A536 65-45-12
Post Plate	Ductile Iron ASTM A536 65-45-12

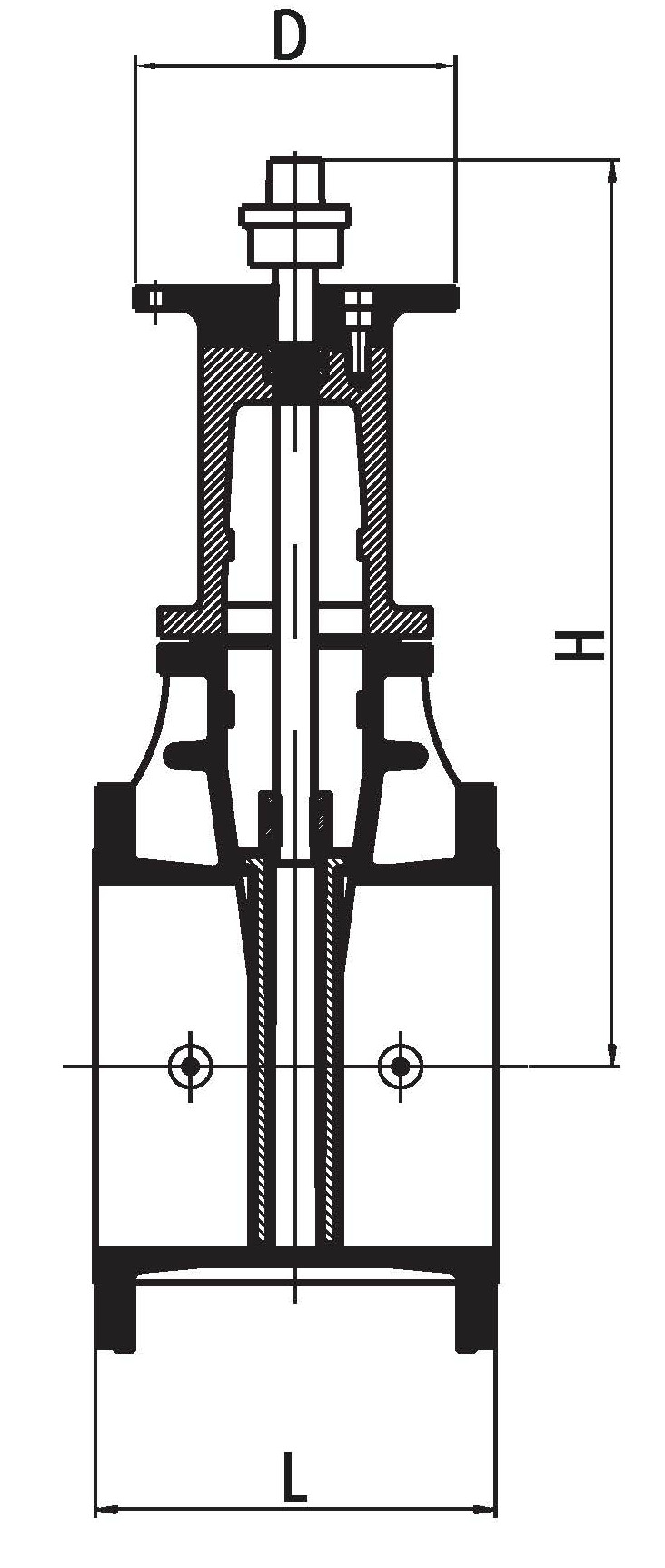

DIMENSIONS (inch/mm)

Size	14″/350	16″/400	18″/450	20″/500	24″/600
L	15.00/381	15.98/406	17.01/432	17.99/457	20.00/508
H	33.94/862	36.93/938	41.61/1057	44.96/1142	50.98/1295
D	12.01/305	12.01/305	12.01/305	12.01/305	12.01/305

Net Weight (kg) & Crate qty (pcs)

Size	14″/350	16″/400	18″/450	20″/500	24″/600
N.W.	232.00	308.00	446.00	636.00	848.00
Create Qty	1	1	1	1	1

NOTES
1. Design and dimensions conform to AWWA C515
2. Design and materials are subject to change without notice.
3. All valves provided with2 “(50mm) operating nut.
4. It is suitable for hand wheel.
