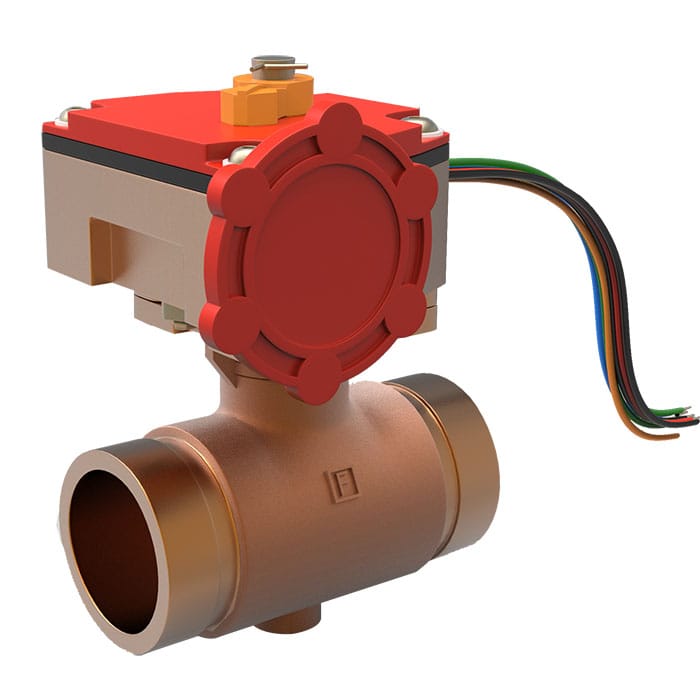

青铜蝶阀沟槽连接

300PSI Fig No.: BBG-300

FEATURES & SPECIFICATIONS

Working Pressure:
300 PSI (21 BARS)
Max. Test Pressure: 600 PSI (42.8 BARS)
Max. Working Temp.: 250°F (120°C )
Factory installed UL, listed double Tamper Switches
Valve Approved For Indoor and Outdoor Use
Grooved Ends to suit BS or ANSI pipe size

分类：消防产品, 蝶阀

描述

Material Specification

Name	Material
Body	Bronze C836000
Disc	Stainless Steel AISl304
Hand Wheel	WCB
Seat	Viton
Indicator	Powder Metal
Housing	Forged Brass

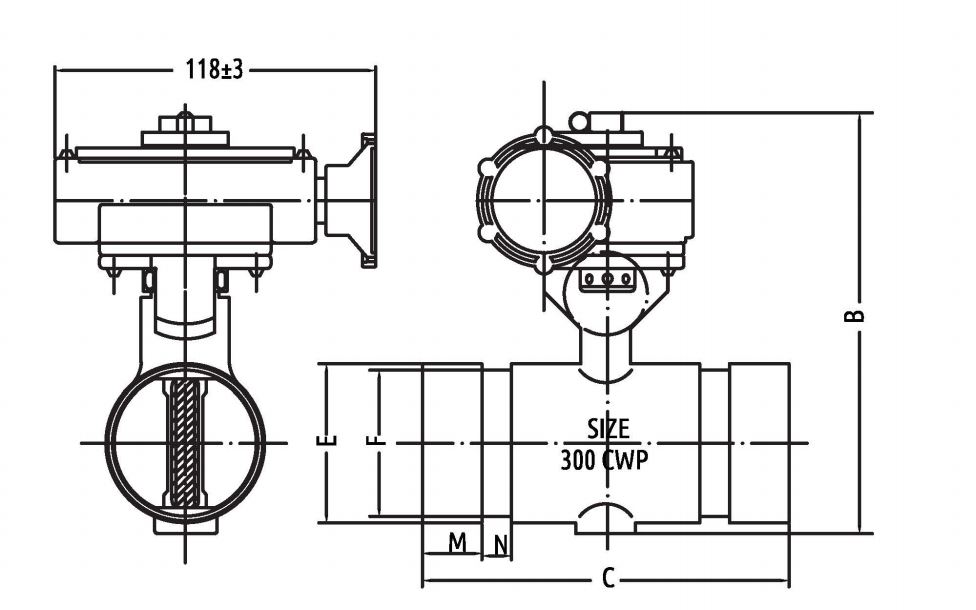

DIMENSIONS (mm)

Size	1.25″/32	1.5″/40	2″/50	2.5″/65
B	138.9	145.9	159	175.5
C	98	102	104	114
ØE	42.4	48.3	60.3	73
ØF	38.99	45.09	57.15	69.09
M	15.88	15.88	15.88	15.88
N	7.95	7.95	7.95	7.95

Net Weight (kg) & Crate qty (pcs)

Size	1.25″/32	1.5″/40	2″/50	2.5″/65
N.W.	1.80	1.87	2.17	2.80
Create Qty	6	6	6	6
