Material Specification
| name | material |
|---|---|
| Body | Ductile Iron A536 65-45-12 |
| Cover | Ductile Iron A536 65-45-12 |
| Clapper | Ductile Iron A536 65-45-12 +EPDM |
| Clapper Arm | Ductile Iron A536 65-45-12 |
| Hinge Pin | Stainless Steel AISI 304 |
| Seat | Bronze ASTM B62 Stainless Steel AISI 304 |

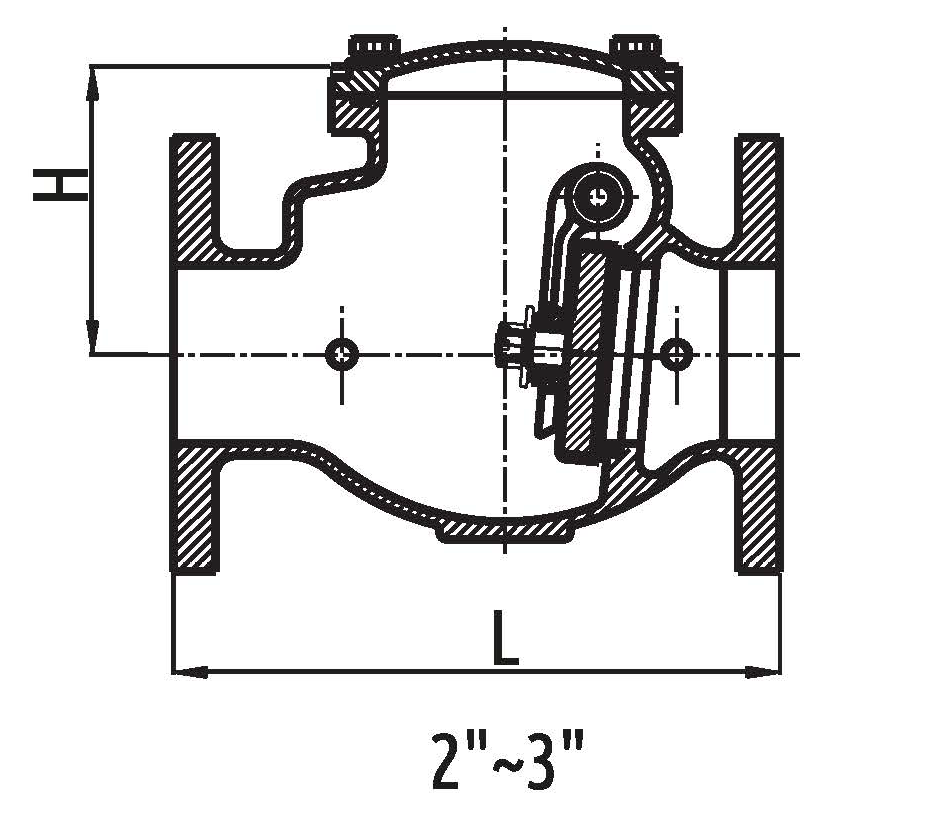

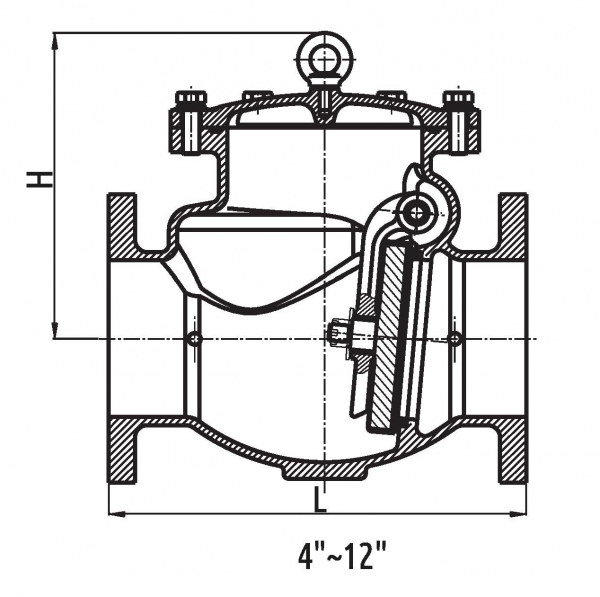

DIMENSIONS (inch/mm)
| Size | 2″/50 | 2.5″/65 | 3″/80 | 4″/100 | 5″/125 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| L | 8/203 | 10/254 | 11/279 | 13/330 | 14/356 | 16/406 | 19.5/495 | 22/559 | 26/660 |
| H | 4.60 | 5.04/128 | 5.21/132.5 | 8.76/222.5 | 11.42/290 | 11.69/297 | 14.37/365 | 16.34/417.5 | 17.83/453 |
Net Weight (kg) & Crate qty (pcs)
| Size | 2″/50 | 2.5″/65 | 3″/80 | 4″/100 | 5″/125 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| N.W. | 12.00 | 17.50 | 22.00 | 34.00 | 58.00 | 67.30 | 120.00 | 174.00 | 246.00 |
| Create Qty | 30 | 20 | 20 | 12 | 8 | 6 | 6 | 2 | 2 |
