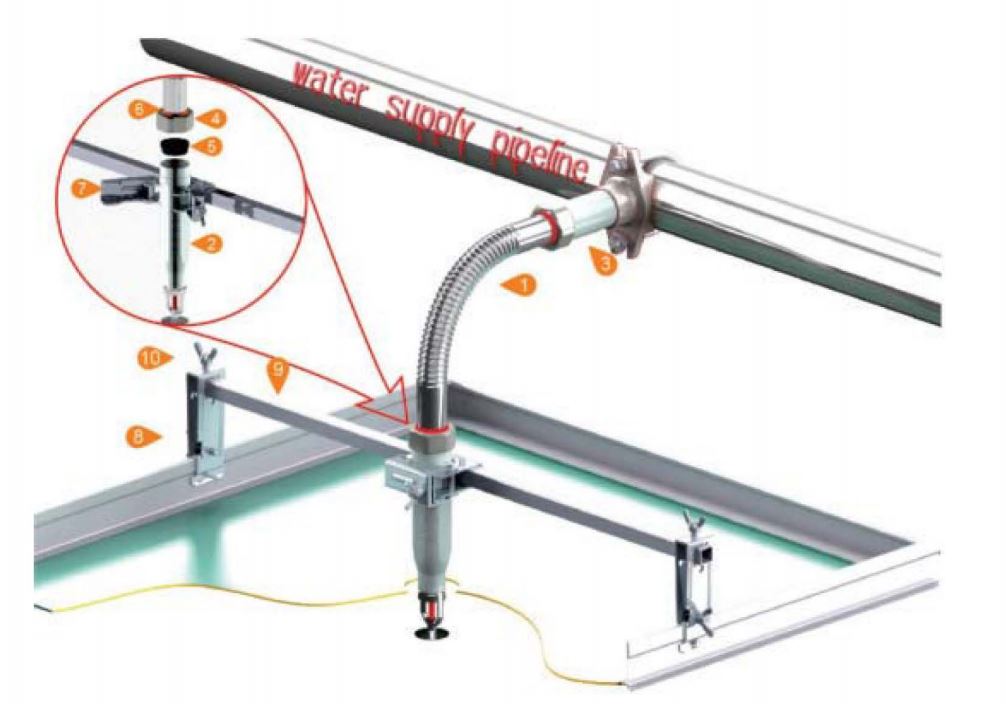

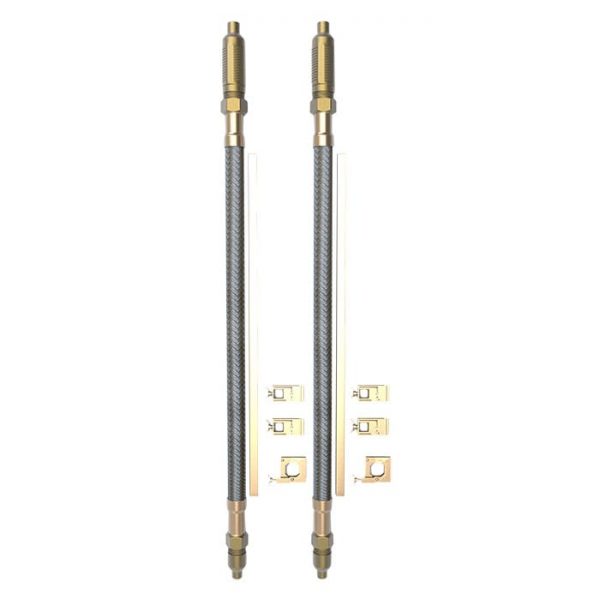

Material Specification
| DET | QTY | Name | Material |
|---|---|---|---|
| 1 | 1 | CorrugatedTube | AISI 304 Stainless Steel |
| 2 | 1 | Discharge Nipple (Elbow) | Galv. Steel ASTM 1020 |
| 3 | 1 | Inlet Nipple | Galv. Steel ASTM 1020 |
| 4 | 2 | Hexagon Slip Nut | Galv. Steel ASTM 1020 |
| 5 | 2 | Gasket | EPDM |
| 6 | 2 | Isolation Ring | Nylon 66 |
| 7 | 1 | Center Bracket | Galv. Steel ASTM A283 Gr .D |
| 8 | 2 | Side Bracket | Galv. Steel ASTM A283 Gr .D |
| 9 | 1 | Square Bar | Galv. Steel ASTM A283 Gr .D |
| 10 | 1 Set | Bolts & Screws | Galv. Steel ASTM A283 Gr .D |
Notes
1. For QF-600, UL&ULC Listed
2. For QF-1000, FM Approved, UL&ULC Listed
TECHNICAL DATA
Rated Pressure: 200PSl/14BARS
Maximum Ambient Temperature: 225(°F), 107(°C)
Connection: DN25*DN15 or DN20 (1″ x 1/2″ or 3/4″), NPT or BSPT
Hose Diameter: O.D. 26.Bmm/11/15″ Flow: 22.Smm/7/8″
Designed for use in Wet and Dry Systems
|
Assembling Length mm inch |
In-&Outlet Head Size DN in. |
Max.number of 90° bends n x 90″ |
Min bending radius mm inch |
Equivalent Length of DN25/1″ QF-600 With straight discharge Nipple* |
|---|---|---|---|---|
| 700 28 |
25 x 15 1″ x 1/2″ |
1 | 100 4 |
5.5 18 |
| 1000 40 |
25 x 15 1″ x 1/2″ |
2 | 100 4 |
10 33 |
| 1200 48 |
25 x 15 1″ x 1/2″ |
2 | 100 4 |
13 43 |
| 1500 60 |
25 x 15 1″ x 1/2″ |
3 | 100 4 |
19.2 63 |
| 1800 72 |
25 x 15 1″ x 1/2″ |
4 | 100 4 |
23.8 78 |
| 700 28 |
25 x 20 1″ x 3/4″ |
1 | 100 4 |
7.3 24 |
| 1000 40 |
25 x 20 1″ x 3/4″ |
2 | 100 4 |
12.5 41 |
| 1200 48 |
25 x 20 1″ x 3/4″ |
2 | 100 4 |
14 46 |
| 1500 60 |
25 x 20 1″ x 3/4″ |
3 | 100 4 |
19.5 64 |
| 1800 72 |
25 x 20 1″ x 3/4″ |
4 | 100 4 |
24.4 80 |
| Assembling Length | In-&Outlet Head Size | Max.number of 90° bends | Min bending radius | Equivalent Length of DN25/1″ Sch. 40 Pipe at C=120 in |
|
|---|---|---|---|---|---|
| mm inch | DN in. | n x 90″ | mm inch | QF-1000 With | QF-1000E With 90° elbow discharge |
| 700 28 |
25 x 15 1″ x 1/2″ |
1 | 250 10 |
8.1 26.7 |
8 26.5 |
| 1000 40 |
25 x 15 1″ x 1/2″ |
3 | 250 10 |
12.9 42.6 |
12.4 40.8 |
| 1200 48 |
25 x 15 1″ x 1/2″ |
3 | 250 10 |
20.6 67.8 |
15.4 50.4 |
| 1500 60 |
25 x 15 1″ x 1/2″ |
4 | 250 10 |
20.6 67.8 |
20 65.7 |
| 1800 72 |
25 x 15 1″ x 1/2″ |
4 | 250 10 |
25.1 82.4 |
24.6 81 |
| 700 28 |
25 x 20 1″ x 3/4″ |
1 | 250 10 |
6.5 21.5 |
5.1 16.8 |
| 1000 40 |
25 x 20 1″ x 3/4″ |
3 | 250 10 |
12 39.5 |
10.4 34.2 |
| 1200 48 |
25 x 20 1″ x 3/4″ |
3 | 250 10 |
15.7 51.6 |
13.9 45.8 |
| 1500 60 |
25 x 20 1″ x 3/4″ |
4 | 250 10 |
19.3 63.5 |
17 58.7 |
| 1800 72 |
25 x 20 1″ x 3/4″ |
4 | 250 10 |
22.9 75.4 |
21.7 71.5 |
Results are tested & recorded by UL under minimum bending radius in maximum bending degrees.
Results are tested & recorded by FM approvals under minimum bending radius in maximum bending degrees.

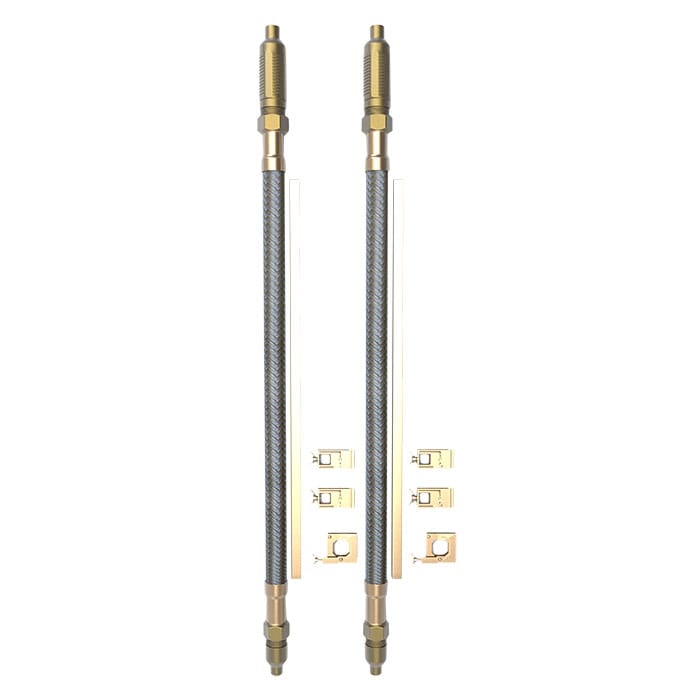

FEATURES & SPECIFICATIONS
- QF-600:Unbraided Hose
- QF-1000:Braided Hose
- QF-1000E:Braided Hose With Elbow Nipple

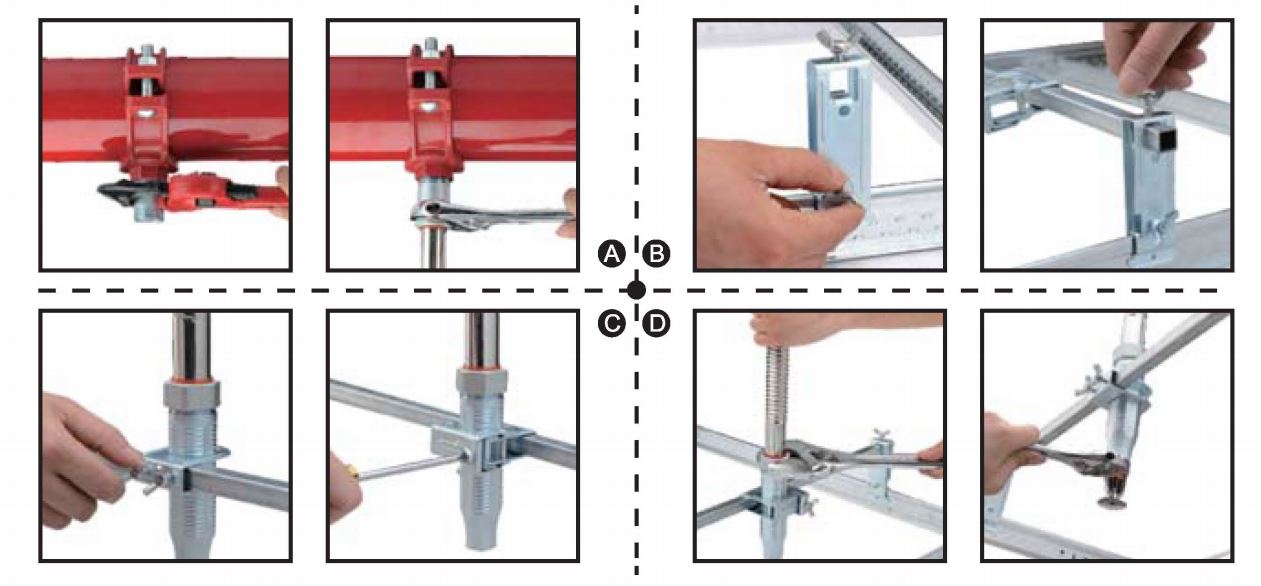

ASSEMBLY INSTRUCTIONS
A. Connect Inlet Nipple
Use pipe wrench to screw the Inlet Nipple into the branch outlet interface on water supply pipeline, use pipe sealant (Teflon tape or pipe glue etc.) to seal and apply tightening torque of approx. 5ON·m/35ft-lbs. Then tighten the Hexagon Slip Nut with 15N·m/10ft-lbs to ensure sealing performance.
B. Fix bracket set
Attach side brackets to the main-rail of the T-bar grid and cross the square bar through 2 side brackets, with the center bracket in the middle. Tighten all fixing bolt on the side brackets with 4N·m/3ft-lbs.
C. Bending & Locating
Bend the Flexible Hose body as desired (According the parameters on Specification sheet) and locate the Discharge Nipple into the center bracket. Tighten the bolts on center bracket with 4N·m/3ft-lbs after the proper location of spring kier head has been found.
D. Connect Discharge Nipple
Tighten the Slip Nuts with 15N·m/10 ft-lbs and install sprinkler head to Discharge Nipple by following the sprinkler manufacture’s installation instructions. Finally test leak in according with NFPA guidelines.

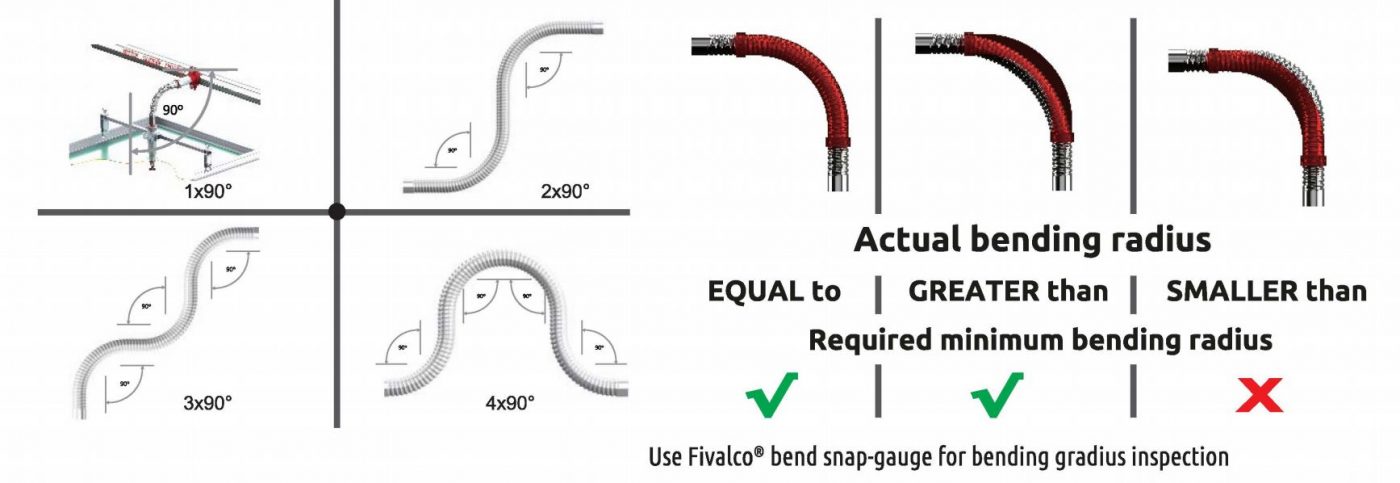

HOSE BENDING, CORRECT OR WRONG?
cALCULATION OF BENDING DEGREES
| Cartoon box | Pallet | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Qty | Gross weight | Size | Quantity | Gross weight | ||||||||
| Hose Length | L | W | H | QF-600 | QF-1000 | L | W | H | Box | Hose | QF-600 | QF-1000 | |
| mm | mm | mm | mm | ea | kg | kg | mm | mm | mm | ea | ea | kg | kg |
| 700 | 1050 | 205 | 195 | 20 | 27.2 | 31.5 | 1050 | 1050 | 1125 | 25 | 500 | 700 | 805 |
| 1000 | 1300 | 205 | 195 | 20 | 28.9 | 35.3 | 1300 | 1050 | 1125 | 25 | 500 | 745 | 905 |
| 1200 | 1500 | 205 | 195 | 20 | 30.2 | 37.7 | 1500 | 1050 | 1125 | 25 | 500 | 780 | 970 |
| 1500 | 1800 | 205 | 195 | 20 | 32 | 42 | 1800 | 1050 | 1125 | 25 | 500 | 830 | 1080 |
| 1800 | 2100 | 205 | 195 | 20 | 34 | 45.6 | 2100 | 1050 | 1125 | 25 | 500 | 885 | 1175 |
